Accupro ACC-LC437080 Single Point Tool Bit Cut-off Grooving

Product Description

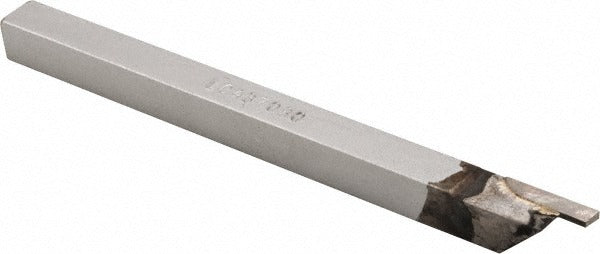

The ACCUPRO ACC-LC437080 is an LC-style single point tool bit designed for cut-off and grooving operations on manual and CNC lathes. It features a solid carbide tip brazed to a steel shank, providing edge retention and heat resistance in demanding turning applications. The shank measures 7/16 inches wide by 7/16 inches tall with an overall length of 6 inches. The tip width and tip thickness each measure 0.080 inches, making this bit well suited for narrow parting and grooving cuts. Cutting direction is left hand. Machinists and tool and die professionals install this bit in standard tool holders designed for LC-style geometry.

This tool bit is intended for use in metal-cutting lathe applications where cut-off and grooving operations are required. The 7/16 inch square shank fits standard tool post holders and turret-style holders commonly found on engine lathes and turret lathes in job shops, maintenance facilities, and production environments. The left-hand cutting direction suits applications where the carriage feeds toward the tailstock or where workpiece orientation requires a LH approach. The solid carbide tip handles ferrous and non-ferrous materials across a range of cutting conditions.

Key Features

• LC-style geometry optimized for cut-off and grooving operations
• Solid carbide tip for extended edge life and thermal resistance
• 7/16 inch square shank for secure seating in standard tool holders
• Tip width and thickness of 0.080 inches for precise narrow-groove cuts
• Left-hand cutting direction for specific lathe setup requirements
• 6 inch overall length providing clearance in typical tool post configurations

Compatibility

Designed as an OEM-style replacement and standard fit for LC-style single point tool bit holders accepting a 7/16 inch square shank. Industry standard number LC-437080.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the lathe before installing or changing tool bits. Seat the shank fully in the tool holder and secure with appropriate set screws before resuming operation. Inspect the carbide tip for chipping or cracks prior to each use and replace if damage is present.
