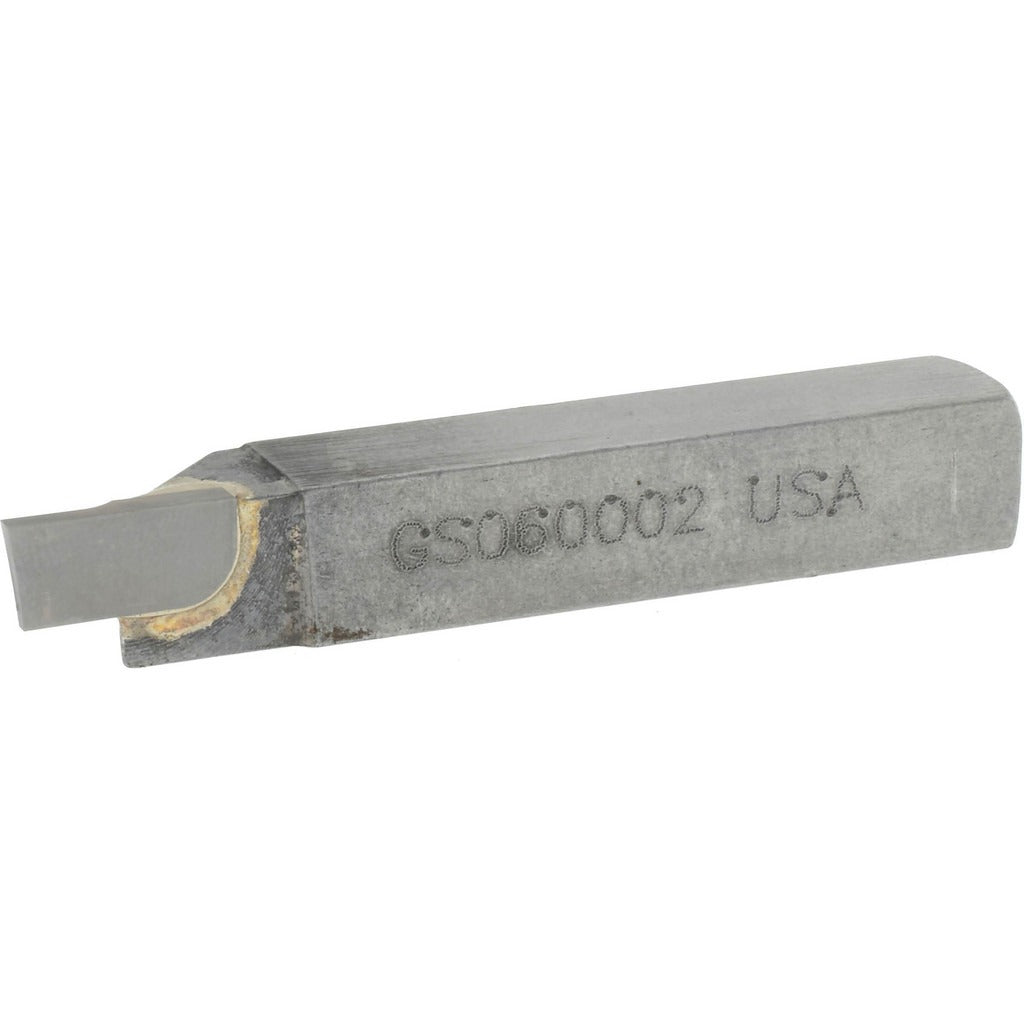

Accupro ACC-GS060002 Cut-off Grooving Tool Bit 3/8 in

Product Description

The ACCUPRO ACC-GS060002 is a single point cut-off and grooving tool bit designed for precision parting and grooving operations on CNC and manual lathes. Built with a micrograin solid carbide tip, it delivers consistent performance on ferrous and non-ferrous materials where tight groove tolerances are required. The neutral cutting direction suits straight plunge applications. The shank measures 3/8 inch in both width and height, providing a rigid, low-profile setup in standard tool holders. Maximum groove width is 0.062 inches, with a depth of cut capacity reaching 0.21 inches, making it well suited for fine grooving work where dimensional accuracy matters.

This tool bit is used in production turning and toolroom environments for cut-off and grooving operations on bar stock, tubing, and turned components. The GS style and neutral geometry are common in applications requiring straight plunge cuts without lateral tool deflection. Machinists and CNC operators working on lathes with 3/8 inch tool block setups will find this bit a direct-fit solution for light to medium grooving tasks in both job shop and production settings.

Key Features

• Micrograin solid carbide tip for wear resistance and edge retention in grooving applications
• Neutral cutting direction for straight plunge cut-off and grooving operations
• 3/8 inch shank width and 3/8 inch shank height for rigid tool holder fit
• Maximum groove width of 0.062 inches with minimum groove width of 0.060 inches
• Maximum depth of cut of 0.21 inches
• Minimum nose radius of 0.002 inches for sharp, precise groove profiles

Compatibility

Designed as a direct-fit replacement or standard tooling solution for lathes and turning centers accepting 3/8 inch single point tool bits in GS-style cut-off and grooving applications. Industry standard number GS-060002.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Secure the tool bit firmly in the tool holder or tool block before operation, ensuring the tip is set at the correct center height for the workpiece. Power down and lock out the machine before inserting or removing tool bits. Verify shank clearance and tool overhang are within the machine manufacturer specifications before cutting.
