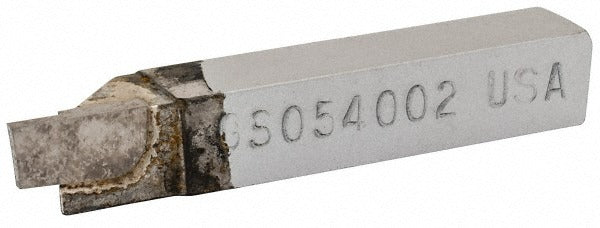

Accupro ACC-GS054002 Single Point Grooving Tool Bit

Product Description

The ACCUPRO ACC-GS054002 is a single point tool bit designed for cut-off and grooving operations on metal lathes and turning centers. Built with a micrograin solid carbide tip, this neutral-cutting bit delivers precise groove geometry in a compact 3/8 inch by 3/8 inch shank profile. The GS-style tool bit accepts a groove width range of 0.054 to 0.056 inches with a maximum depth of cut of 0.18 inches, making it suited for tight, accurate grooving passes. Machinists and tool-and-die professionals install this bit when consistent groove width and edge integrity are critical to the finished part.

This tool bit is intended for use in CNC and manual lathe applications where narrow groove profiles and shallow-to-moderate depth of cut are required. The neutral cutting direction allows for straight plunge grooving without lateral offset. The micrograin carbide grade supports longer edge life in steel, stainless, cast iron, and similar ferrous materials. It is sold individually and is appropriate for shops running high-precision turning or parting operations where groove tolerance control is a primary concern.

Key Features

• Micrograin solid carbide tip for extended edge life and consistent cutting performance
• Neutral cutting direction suitable for straight plunge grooving
• Groove width range of 0.054 to 0.056 inches for tight tolerance applications
• Maximum depth of cut of 0.18 inches
• 3/8 inch shank width and 3/8 inch shank height for standard toolpost compatibility
• Minimum nose radius of 0.002 inches for sharp, precise groove profiles

Compatibility

Designed as an OEM-style replacement and direct-fit tool bit for standard 3/8 inch tool holders and toolpost setups accepting GS-style single point cut-off and grooving bits. Industry standard number GS-054002.

Installation Notes

This tool bit is installed by machinists on CNC or manual lathes using a compatible 3/8 inch tool holder. Ensure the machine spindle is fully stopped and the lathe is powered down before changing or setting tool bits. Secure the shank firmly in the toolpost to prevent movement during cut. Verify groove width and depth of cut settings against part print tolerances before running the first pass.
