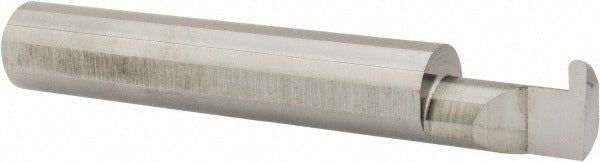

Accupro ACC-GF069-8 Full Radius Grooving Tool Carbide

Product Description

The ACCUPRO ACC-GF069-8 is a full radius grooving tool machined from submicron-grade solid carbide. It is designed for internal grooving operations in bores with a minimum diameter of 0.375 inches and a maximum hole depth of 0.5 inches. The tool features a 3/8-inch shank diameter with a 2.0-inch shank length and an overall length of 2.5 inches. A 0.110-inch projection and 0.070-inch groove width make this tool suited for precision grooving in tight bore geometries. Machinists and toolroom professionals install this type of tool on CNC lathes and manual turning centers.

The ACC-GF069-8 is used in machining applications requiring accurate internal grooves with a full radius profile. It is appropriate for production and job-shop environments where consistent groove geometry is critical. The submicron carbide grade provides wear resistance for use in ferrous and non-ferrous materials. This tool is sold individually and is a direct fit for standard 3/8-inch straight-shank boring bar holders commonly found on CNC turning equipment.

Key Features

• Full radius grooving profile for accurate internal groove geometry
• Submicron-grade solid carbide construction for extended tool life
• 0.070-inch groove width for precision narrow-groove applications
• 3/8-inch shank diameter compatible with standard boring bar holders
• 0.110-inch projection supports access in shallow-depth bore applications
• Overall length of 2.5 inches for reach in typical lathe setups

Compatibility

Designed for use in standard 3/8-inch straight-shank tool holders on CNC lathes and manual turning centers capable of internal grooving operations.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. The machine spindle must be fully stopped and the tool holder must be de-energized before inserting or removing the grooving tool. Secure the shank firmly in the tool holder to the holder manufacturer's specified clamping method to prevent chatter or pullout. Verify bore clearance and projection depth against workpiece geometry before beginning a cut.
