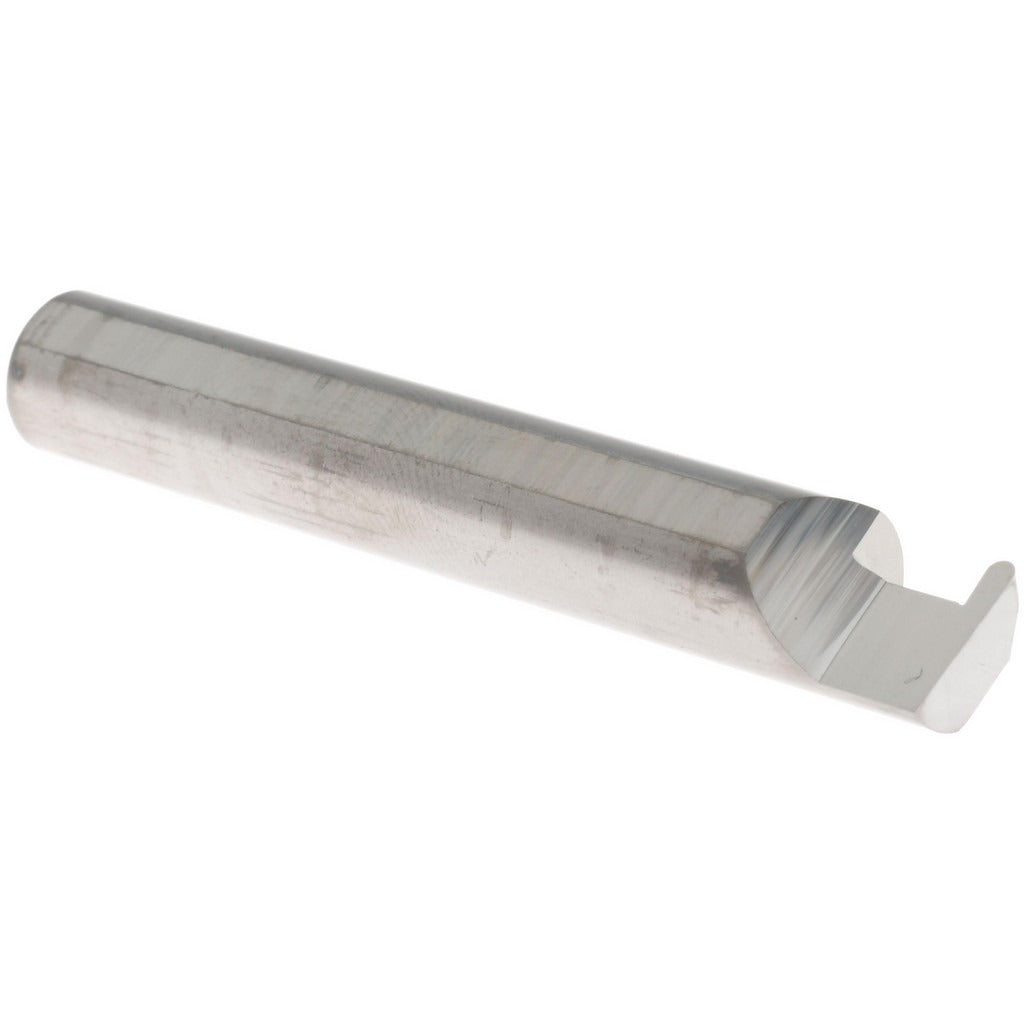

Accupro ACC-GF062-4 Full Radius Grooving Tool 3/8 in

Product Description

The ACCUPRO ACC-GF062-4 is a solid carbide full radius grooving tool designed for internal grooving operations in precision machining applications. Built from submicron-grade solid carbide, this tool delivers consistent cutting performance and long tool life in demanding materials. The 3/8 inch shank diameter and 0.0630 inch groove width make it well-suited for tight-tolerance work where dimensional accuracy is critical. Licensed machinists and tooling technicians working in CNC lathe and boring applications will find this tool reliable for repeatable internal groove profiles.

This grooving tool is used in internal grooving and profiling operations where a full radius groove form is required. It is appropriate for precision shops, job shops, and production machining environments. The minimum hole diameter of 0.3750 inches and maximum hole depth of 0.25 inches define the working envelope, making it a fit for small-bore internal groove work on lathes and turning centers.

Key Features

• Full radius grooving geometry for accurate internal groove profiles
• Submicron-grade solid carbide construction for extended tool life and wear resistance
• 3/8 inch shank diameter for standard collet and toolholder compatibility
• 0.0630 inch groove width for precise, consistent groove dimensions
• 0.1100 inch projection supports reach into small-bore features
• Overall length of 2.5 inches for compact setup in turning centers

Compatibility

Designed as a replacement or direct-fit grooving tool for setups requiring a 3/8 inch shank full radius internal grooving tool in CNC lathe or turning center toolholders.

Installation Notes

Installation should be performed by a qualified machinist familiar with toolholder setup and CNC lathe operation. Ensure the machine spindle is fully stopped and the control is in an safe state before mounting or removing tooling. Secure the shank fully within the toolholder to the recommended grip length and verify tool runout before beginning a cut. Consult the machine manufacturer guidelines for proper toolholder torque and clamping procedures.
