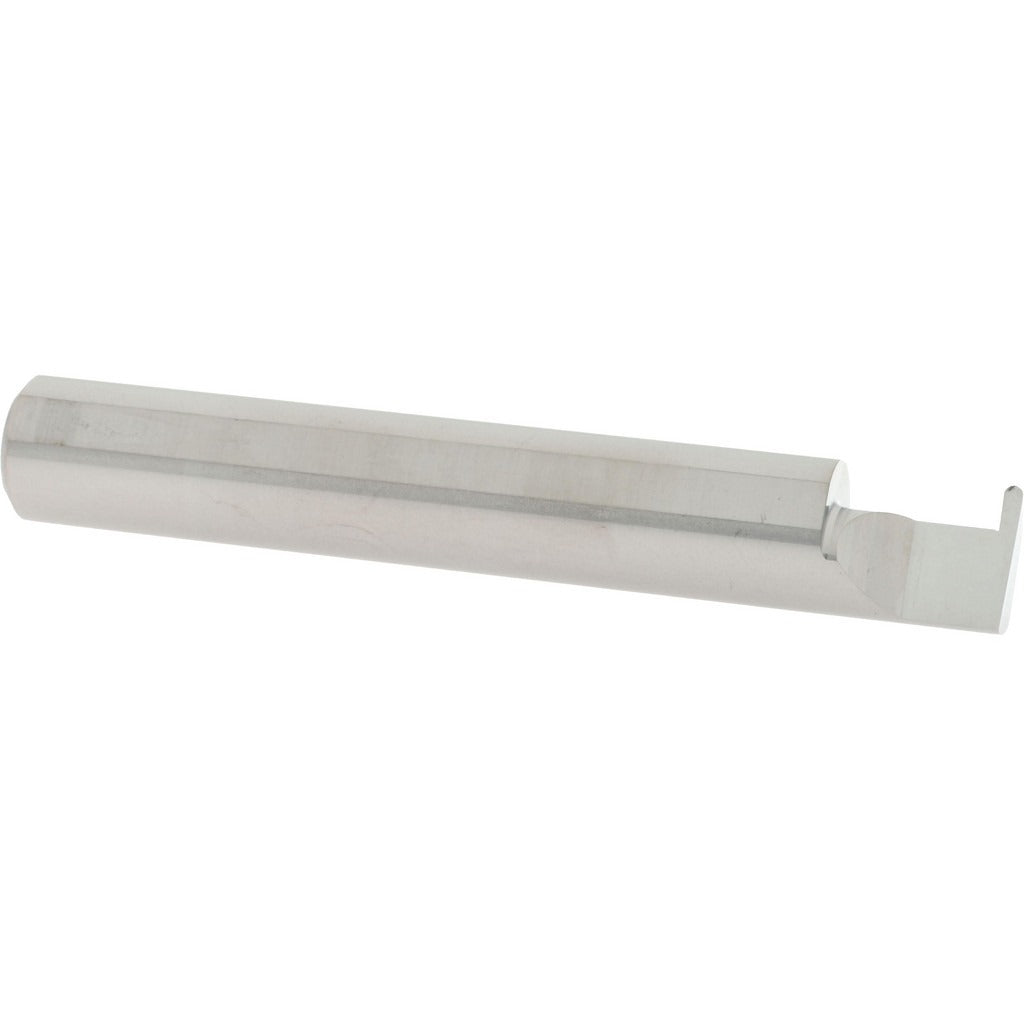

Accupro ACC-GF046-6 Full Radius Grooving Tool

Product Description

The ACCUPRO ACC-GF046-6 is a solid carbide full radius grooving tool designed for precision internal grooving operations on machined components. Built from submicron carbide grade material, this tool delivers consistent cutting performance in tight-tolerance bore work. The 3/8 inch shank diameter and 2.5 inch overall length make it a compact, rigid choice for grooving applications where tool deflection must be minimized. At 0.047 inch groove width and 0.375 inch maximum hole depth, it is suited for fine grooving passes in small-bore workpieces. Machinists and toolroom technicians install and operate this tool on CNC lathes and boring machines requiring repeatable internal groove geometry.

This grooving tool is intended for use in metalworking and machining environments where full radius internal grooves are required. It is appropriate for small-bore applications with a minimum hole diameter of 0.375 inches. The submicron carbide construction supports use in ferrous and non-ferrous materials where edge retention and micro-geometry accuracy are critical. It is a standard selection for toolroom setups, production turning cells, and repair machining operations.

Key Features

• Full radius geometry for clean, consistent internal groove profiles
• Solid submicron carbide construction for extended tool life and edge stability
• 3/8 inch shank diameter for rigid, low-deflection setups
• 0.047 inch groove width supports fine, tight-tolerance groove cuts
• 0.110 inch projection provides adequate reach into bore applications
• Compact 2.5 inch overall length fits standard toolholding systems

Compatibility

Designed as an OEM-style replacement or direct-fit grooving tool for CNC lathes and boring setups requiring a 3/8 inch shank, full radius internal grooving tool with a minimum hole diameter of 0.375 inches.

Installation Notes

This tool is installed and operated by qualified machinists or toolroom technicians. Secure the shank fully in a compatible toolholder and verify runout before cutting. Power down and lock out the machine spindle before changing or adjusting the tool. Consult the machine manufacturer feed and speed recommendations for solid carbide grooving tools in the target material.
