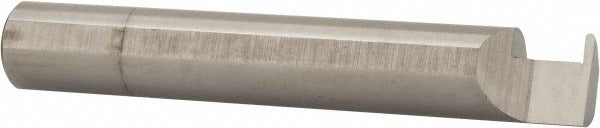

Accupro ACC-GF039-4 Full Radius Grooving Tool Carbide

Product Description

The ACCUPRO ACC-GF039-4 is a full radius grooving tool designed for internal grooving operations on CNC lathes and boring applications. Manufactured from submicron-grade solid carbide, this tool delivers consistent cutting performance and extended tool life in demanding machining environments. It features a 3/8-inch shank diameter, a 0.0400-inch groove width, and a projection of 0.1100 inches, making it suited for tight-tolerance internal groove work. Machinists and tool-and-die professionals install this tool when precise, repeatable groove geometry is required in bore finishing or undercut operations.

This grooving tool is intended for use in internal bore grooving applications where a full radius profile is required. It fits toolholders with a 3/8-inch bore and accommodates holes with a minimum diameter of 0.3750 inches and a maximum depth of 0.2500 inches. Typical applications include groove cutting in ferrous and non-ferrous workpieces on manual or CNC turning centers. It is a single-piece solid carbide construction, appropriate for production and jobshop environments where tool rigidity and edge retention are priorities.

Key Features

• Full radius grooving profile for precise internal groove geometry
• Submicron-grade solid carbide construction for extended edge life
• 3/8-inch shank diameter for standard toolholder compatibility
• 0.0400-inch groove width for tight-tolerance applications
• Maximum hole depth of 0.2500 inches suits shallow internal groove work
• Overall length of 2.5 inches provides stable reach in bore operations

Compatibility

Designed as a direct-fit replacement for 3/8-inch shank internal grooving toolholders requiring a full radius profile with a 0.0400-inch groove width.

Installation Notes

Installation is performed by qualified machinists on CNC or manual turning equipment. Power down and lock out the machine spindle before seating or removing the tool. Ensure the shank is fully seated and clamped to the specified toolholder torque per the toolholder manufacturer guidelines. Verify runout and projection before beginning a production run.
