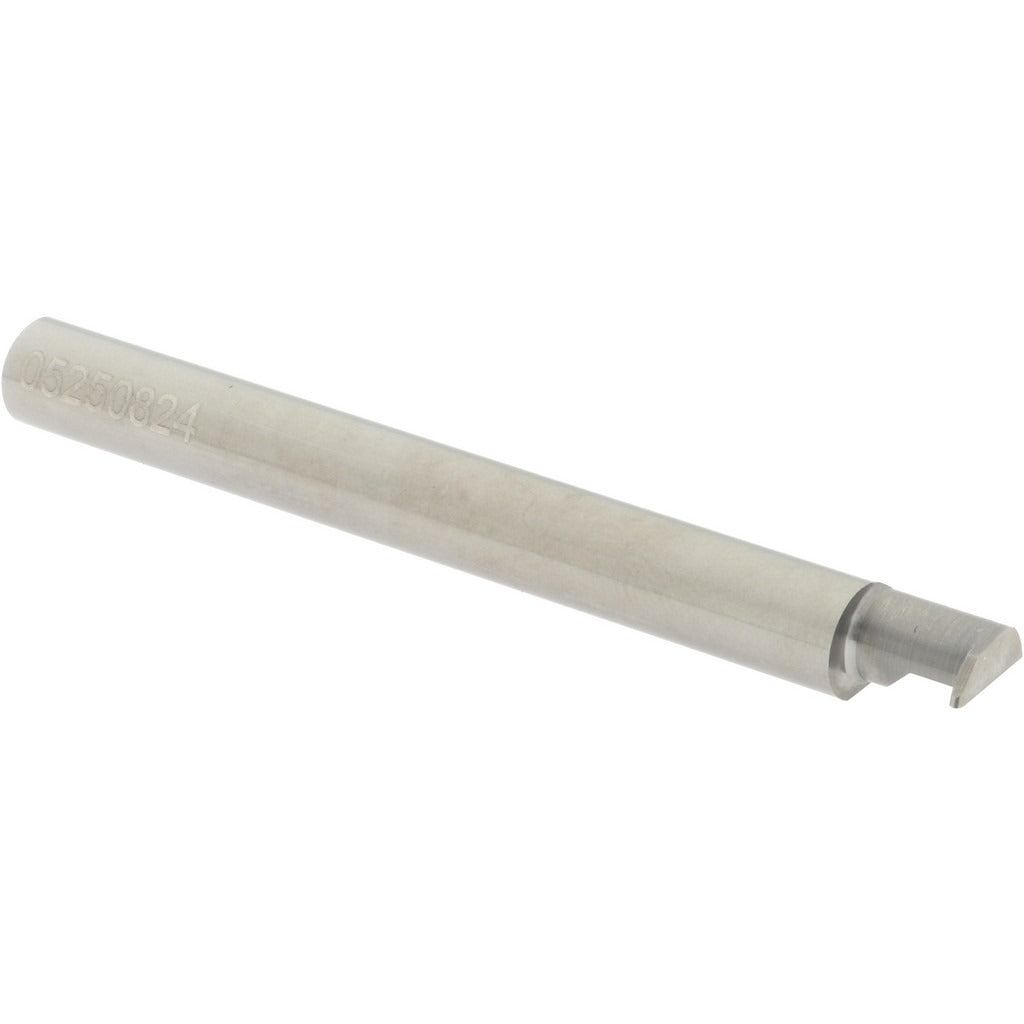

Accupro ACC-GF030Q-4 Full Radius Grooving Tool

Product Description

The ACCUPRO ACC-GF030Q-4 is a full radius grooving tool machined from solid submicron carbide. It features a 1/4-inch shank diameter and cuts a groove width of 0.0305 inches with a projection of 0.060 inches. The tool is 2.5 inches in overall length and weighs 0.0625 pounds. It is designed for internal grooving operations in small-diameter bores, producing a full radius groove profile in a single pass. Machinists and toolroom professionals use this tool on CNC lathes and manual turning centers where tight tolerances and a clean radius form are required.

This grooving tool is suited for precision internal grooving applications where a minimum hole diameter of 0.250 inches and a maximum hole depth of 0.250 inches apply. It is appropriate for use on ferrous and non-ferrous materials where submicron carbide grade tooling provides the necessary edge retention and rigidity. Typical applications include snap ring grooves, O-ring grooves, and other full radius profile features in turned components across aerospace, medical, and general precision machining environments.

Key Features

• Full radius cutting profile for single-pass groove forming
• Solid submicron carbide construction for extended tool life and edge integrity
• 0.0305-inch groove width suited for fine internal groove profiles
• 1/4-inch shank diameter for compatibility with standard collet and toolholder systems
• 0.060-inch projection designed for minimum hole diameter of 0.250 inches
• Compact 2.5-inch overall length for use in confined toolholder setups

Compatibility

Designed as an OEM-style internal grooving tool for use with standard 1/4-inch shank collet chucks and toolholders on CNC and manual turning equipment.

Installation Notes

This tool is installed and set up by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the toolholder is securely clamped before tool insertion. Confirm shank runout is within machine tolerance before beginning a cut. Follow the toolholder manufacturer guidelines for clamping torque and stick-out length to avoid deflection at small groove widths.
