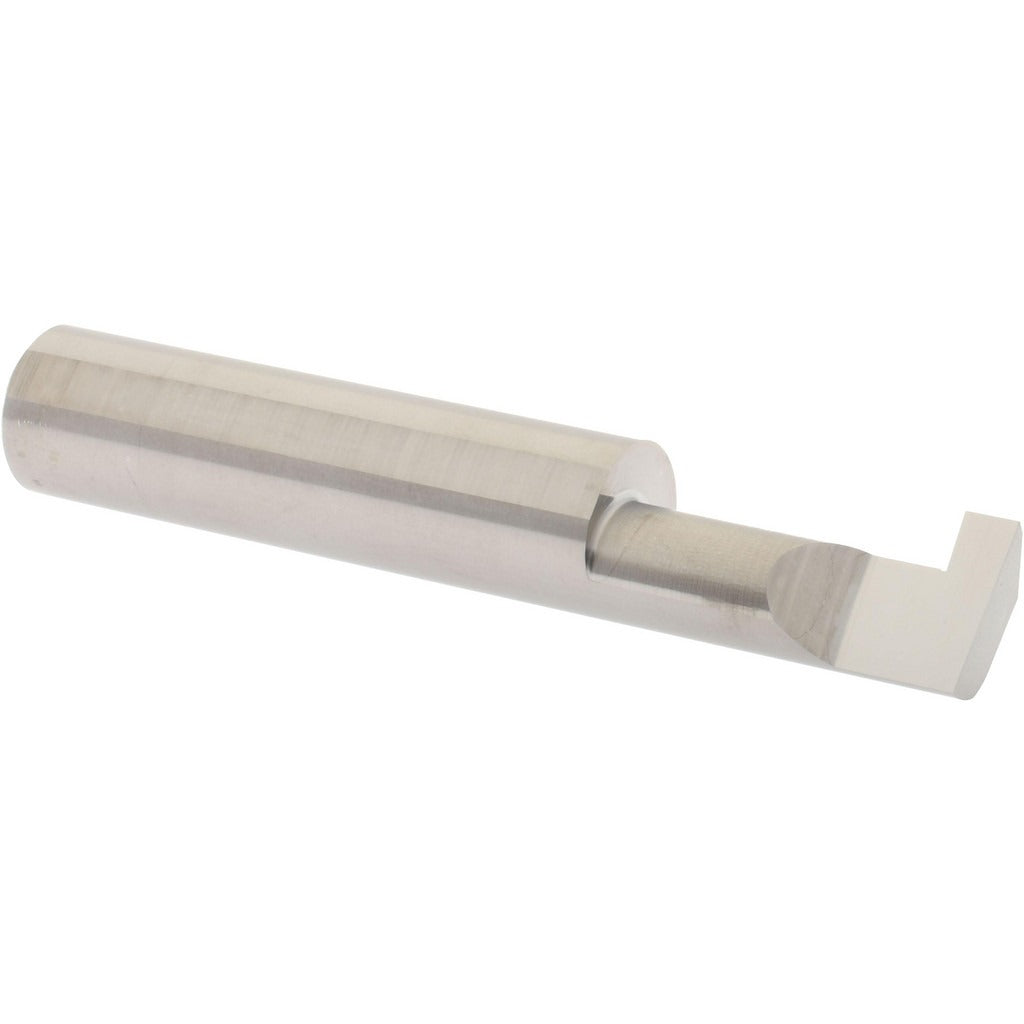

Accupro ACC-G156-16 Retaining Ring Grooving Tool

Product Description

The ACCUPRO ACC-G156-16 is a retaining ring grooving tool designed for internal grooving operations in machined bores. Built from submicron solid carbide, this tool delivers consistent performance in precision groove cutting for retaining ring installation. The 0.5 inch minimum hole diameter and 0.1570 inch groove width make it well suited for tight-tolerance applications where dimensional accuracy is critical. With an overall length of 3 inches and a 0.5 inch shank diameter, it is compatible with standard toolholding systems used in CNC turning and boring operations. Machinists and toolroom professionals install this tool in production and maintenance environments requiring reliable internal grooving capability.

This grooving tool is used in applications where retaining ring grooves must be cut into bored holes at controlled depths. The 0.1600 inch projection and 1 inch maximum hole depth rating allow it to reach groove locations within standard bore depths. It is appropriate for use in both production machining environments and precision repair work where retaining ring grooves are required in metal components.

Key Features

• Submicron solid carbide construction for wear resistance and edge retention
• 0.1570 inch groove width sized for standard retaining ring applications
• 0.5 inch shank diameter fits common toolholding systems
• 0.1600 inch projection for controlled groove reach
• Maximum hole depth of 1 inch for versatile bore grooving
• Overall length of 3 inches for adequate reach in standard setups

Compatibility

Designed as an OEM-style replacement and standard fit for internal retaining ring grooving operations in bores with a minimum diameter of 0.5 inch and a maximum depth of 1 inch using 0.5 inch shank toolholding systems.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians using CNC or manual turning equipment. Ensure the workpiece is securely fixtured and the machine is at a full stop before loading or adjusting the tool. Verify shank seating and tool projection before initiating the cut. Follow applicable shop safety standards and machine manufacturer guidelines for speeds and feeds.
