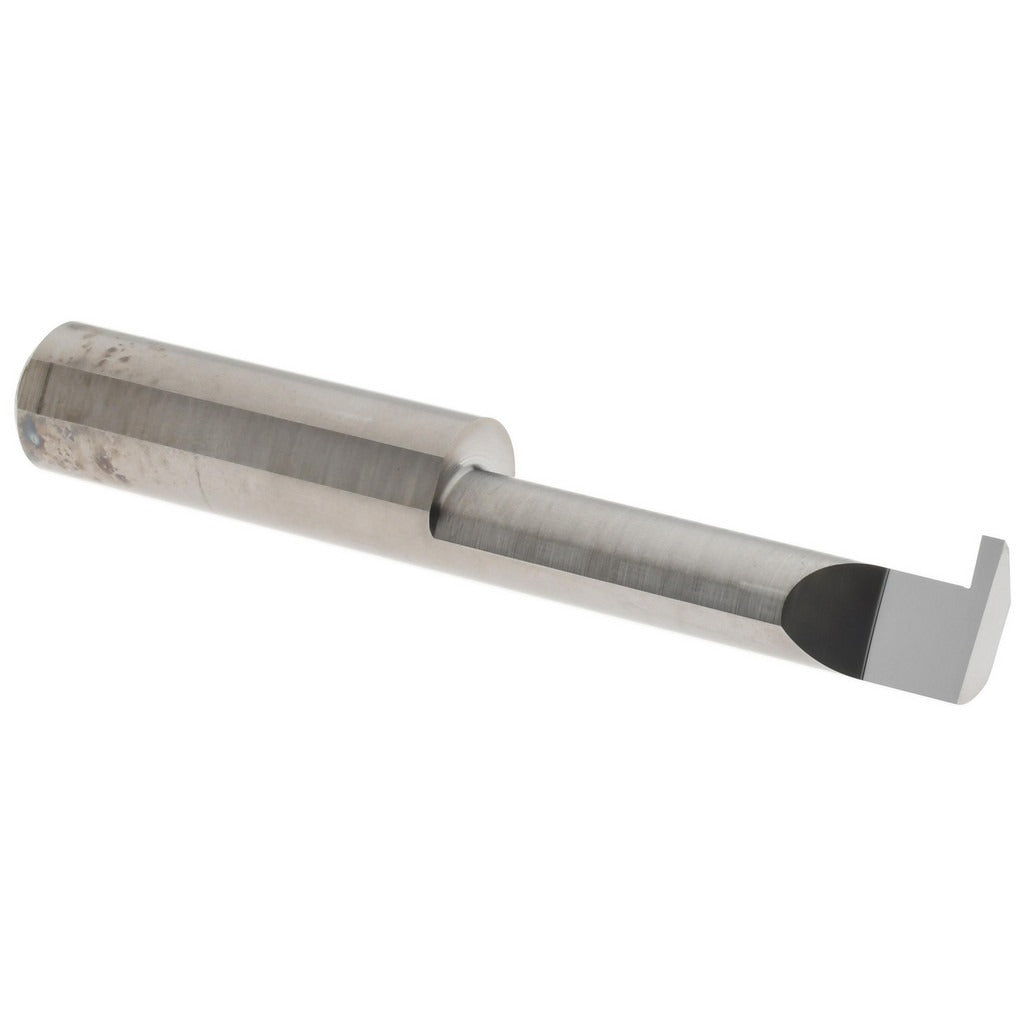

Accupro ACC-G055-20 Retaining Ring Grooving Tool

Product Description

The ACCUPRO ACC-G055-20 is a solid carbide internal grooving tool designed for cutting retaining ring grooves in bored holes. Built from submicron-grade carbide, it delivers the hardness and edge retention needed for precision grooving in ferrous and non-ferrous materials. The tool features a 3/8 inch shank diameter and an overall length of 2.5 inches, making it compatible with standard boring bar holders and tool blocks. A projection of 0.110 inches positions the cutting edge for accurate groove placement. Machinists and tool-and-die professionals use this tool on lathes and boring mills where tight-tolerance retaining ring grooves are required for shaft and bore assemblies.

This grooving tool is suited for internal retaining ring groove applications in production and job-shop environments. It handles a minimum hole diameter of 0.375 inches and reaches a maximum hole depth of 1.25 inches, covering a practical range of bore sizes found in hydraulic cylinders, gearboxes, bearing housings, and similar assemblies. The solid carbide construction supports higher cutting speeds compared to high-speed steel alternatives, making it a reliable choice for shops running tighter cycle times on CNC lathes or manual boring equipment.

Key Features

• Solid submicron-grade carbide construction for extended tool life and edge stability
• 0.0560 inch groove width matches standard internal retaining ring specifications
• 0.110 inch projection provides controlled cutting-edge reach into the bore
• Minimum hole diameter of 0.375 inches suitable for small-bore retaining ring applications
• Maximum hole depth of 1.25 inches accommodates a range of bore depths
• 3/8 inch shank diameter fits widely available tool holders and boring bars

Compatibility

Designed as an OEM-style grooving tool for use in standard 3/8 inch shank tool holders on CNC and manual lathes or boring machines capable of internal retaining ring groove operations.

Installation Notes

This tool is installed by machinists and tool-and-die technicians in a properly sized shank holder or boring bar block. Ensure the machine spindle is fully stopped and the tool holder is securely clamped before inserting or removing the tool. Verify that bore diameter and depth clearances match the tool specifications before beginning the cut. Follow the machine manufacturer guidelines and applicable shop safety standards when setting tool projection and depth stops.
