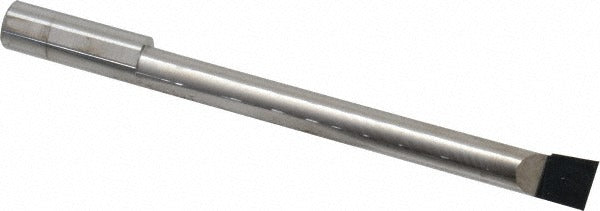

Accupro ACC-BB4904500 Boring Bar Solid Carbide Right Hand

Product Description

The ACCUPRO ACC-BB4904500 is a solid carbide boring bar designed for internal diameter boring operations on CNC lathes and manual turning centers. Built from submicron-grade carbide with a bright finish coating, it delivers consistent dimensional accuracy in ferrous and non-ferrous materials. The bar features a 0.49-inch minimum bore diameter and handles a maximum bore depth of 4.5 inches, making it suitable for moderate-to-deep bore applications. The 1/2-inch shank diameter and 6-inch overall length provide rigid tool holding and reach for common production setups. Right-hand cutting direction is standard. Machinists and tool-and-die professionals install this bar in standard toolholders where repeatable finish boring is required.

This boring bar is well-suited for production and jobshop environments requiring tight-tolerance bore finishing. It performs in through-bore and blind-bore configurations on lathes, turning centers, and boring mills. The submicron carbide substrate resists chipping and wear under continuous cutting conditions, supporting higher surface speeds compared to standard carbide grades. Typical applications include finishing bores in cast iron, steel, aluminum, and similar workpiece materials where dimensional control and surface finish are critical. Machinists working in precision component manufacturing, mold and die shops, and general metalworking will find this bar appropriate for daily production use.

Key Features

• Submicron solid carbide substrate for improved wear resistance and edge retention
• Bright finish coating for reduced friction and clean chip evacuation
• 0.49-inch minimum bore diameter supports small-diameter internal operations
• 4.5-inch maximum bore depth allows reach into moderate deep-bore applications
• 1/2-inch shank diameter fits standard toolholders and turret stations
• Right-hand cutting direction for conventional lathe and turning center setups

Compatibility

Designed as a direct-fit replacement or standard tooling selection for 1/2-inch shank boring bar holders used on CNC and manual lathes and turning centers requiring a right-hand, solid carbide boring bar.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Power down and lock out the machine before inserting or adjusting the boring bar in the toolholder. Ensure the shank is seated to the manufacturer-recommended minimum clamping depth to prevent tool deflection or pullout during cutting. Verify boring bar runout with a dial indicator before initiating a cut, and confirm the holder set screws or clamping bolts are torqued according to the toolholder manufacturer specifications.
