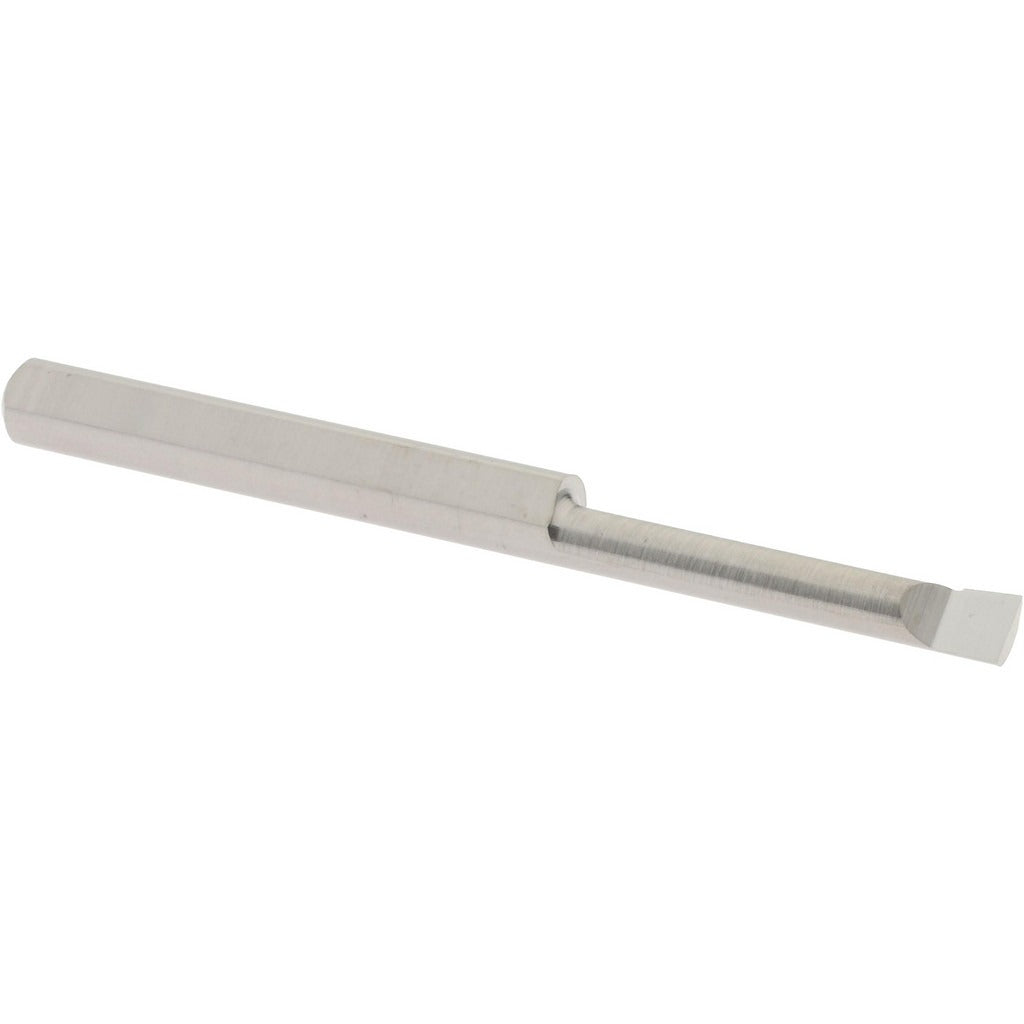

Accupro ACC-BB100600 Boring Bar Submicron Solid Carbide

Product Description

The ACCUPRO ACC-BB100600 is a solid carbide boring bar designed for precision internal boring operations on CNC lathes and manual turning equipment. Manufactured from submicron-grade solid carbide, it delivers the rigidity and wear resistance required for tight-tolerance bore work. The bar handles a minimum bore diameter of 0.1 inches and a maximum bore depth of 0.6 inches. With a 1/8-inch shank diameter and a 1-1/2-inch overall length, this is a compact tool suited for small-bore applications where reach and dimensional accuracy are critical. It is typically installed by machinists and toolroom technicians working in precision machining environments.

This boring bar is intended for small-bore internal turning work in both production and job-shop settings. Its submicron solid carbide construction makes it appropriate for finishing passes on ferrous and non-ferrous materials where surface finish and bore geometry are the primary concerns. The right-hand cutting direction suits standard spindle rotation setups on conventional and CNC turning centers. The bright finish coating leaves the cutting geometry uncoated, which is common for applications requiring a sharp, unaltered edge.

Key Features

• Submicron-grade solid carbide construction for high rigidity and extended tool life
• Minimum bore diameter of 0.1 inches for small-bore precision work
• Maximum bore depth of 0.6 inches
• Right-hand cutting direction for standard spindle rotation
• Bright finish coating preserves a sharp, uncoated cutting edge
• Compact 1/8-inch shank diameter and 1-1/2-inch overall length for tight-access applications

Compatibility

Designed as a standard boring bar for use in toolholders and boring bar holders accepting a 1/8-inch round shank, compatible with CNC and manual turning centers configured for right-hand internal boring operations.

Installation Notes

Installation and tool-change operations should be performed with the machine spindle fully stopped and the machine placed in a safe, locked-out state per applicable shop safety procedures. Secure the shank firmly in the toolholder to the holder manufacturer's specified clamping method to prevent deflection or pullout during the cut. Verify bore depth and diameter settings with appropriate gauging before running a production cycle. Tool setup and offset programming should be performed by a qualified machinist or CNC operator familiar with internal turning operations.
