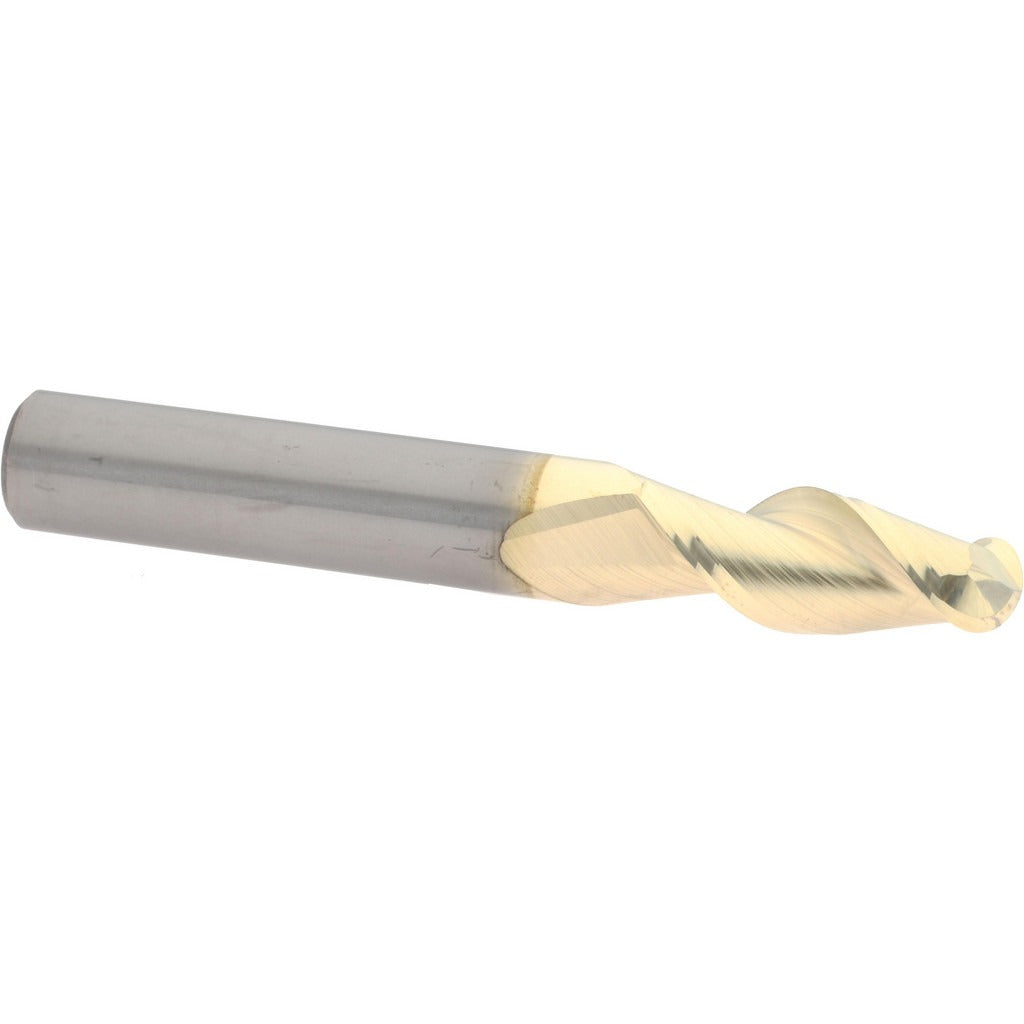

Accupro 95171377 Ball End Mill 10mm 2 Flute Solid Carbide

Product Description

The ACCUPRO 95171377 is a single-end ball end mill designed for precision milling operations in metalworking and machining environments. Built from micrograin solid carbide, it delivers the rigidity and wear resistance required for demanding cutting applications. The tool features a 10.00 mm mill diameter, a 24.00 mm length of cut, and a 70.00 mm overall length. A ZrN (zirconium nitride) coating reduces friction and extends tool life in ferrous and non-ferrous materials. The 45-degree helix angle promotes efficient chip evacuation and smooth cutting action. This end mill is intended for use by machinists and CNC operators working in production or job shop settings.

This end mill is suited for profiling, slotting, and contouring operations on milling machines and CNC machining centers. Its ball-end geometry makes it appropriate for 3D contouring, curved surface finishing, and detail work in molds, dies, and complex part geometries. The 10.00 mm shank diameter provides a secure tool holding interface in standard collets and end mill holders. Right-hand cutting and right-hand flute direction are standard for conventional milling setups.

Key Features

• Micrograin solid carbide construction for high rigidity and edge retention
• ZrN coating reduces friction and extends tool life in a range of workpiece materials
• 45-degree helix angle promotes efficient chip evacuation and reduces cutting forces
• Ball-end geometry suited for 3D contouring and curved surface work
• 10.00 mm shank diameter fits standard collets and end mill holders
• Single-end design with right-hand cut and right-hand spiral flutes

Compatibility

Designed as a direct-fit replacement or standard tooling selection for CNC milling machines and manual mills equipped with collet systems or end mill holders accepting a 10.00 mm shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before changing tooling. Secure the shank to the specified clamping depth in the holder to prevent pullout during cutting. Verify runout with a dial indicator after installation before beginning any cutting operation.
