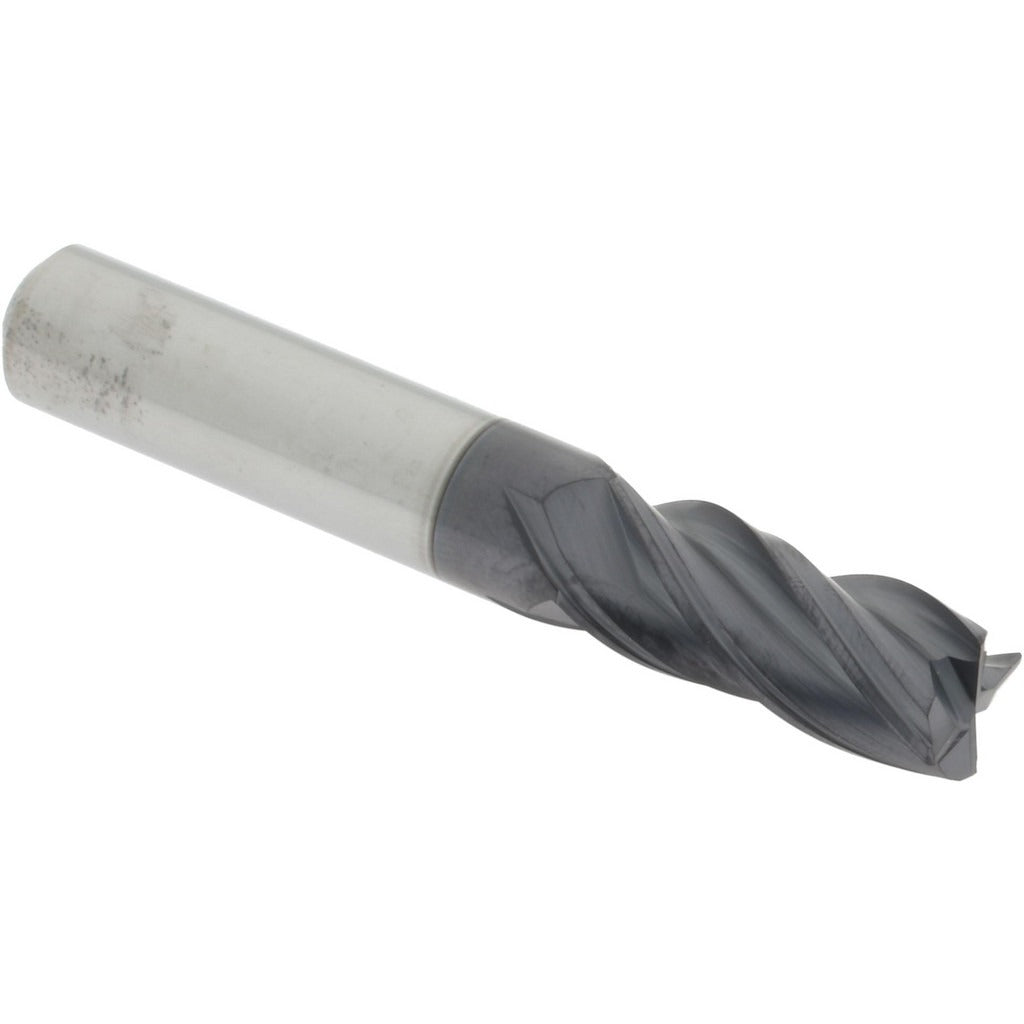

Accupro 95168854 Corner Chamfer End Mill 7/16 in 4 Flute

Product Description

The ACCUPRO 95168854 is a solid carbide corner chamfer end mill designed for precision milling of chamfered edges and corner breaks on ferrous and non-ferrous workpieces. This single-end tool features a 7/16-inch (0.4375-inch) mill diameter, a 1-inch length of cut, and a 45-degree chamfer angle with a 0.0150-inch chamfer width. The AlTiN coating provides high heat resistance and extended tool life in demanding cutting conditions. With four flutes and a variable helix, it delivers smooth chip evacuation and reduced chatter. It is installed and used by machinists and tool-and-die professionals working on CNC machining centers and manual mills.

This corner chamfer end mill is suited for chamfering, deburring, and edge-breaking operations on machined components in production and job-shop environments. The centercutting design allows plunge entry, adding versatility across a range of milling applications. The right-hand flute direction and right-hand cutting direction are standard for conventional CNC and manual milling setups. The regular-length flute type and 2-3/4-inch overall length make it practical for standard reach applications where extended reach is not required.

Key Features

• 45-degree chamfer angle with 0.0150-inch chamfer width for consistent edge breaks
• Solid carbide micrograin construction for hardness and wear resistance
• AlTiN coating for elevated heat resistance and longer tool life
• Variable helix design reduces chatter and improves surface finish
• Centercutting capability allows direct plunge entry into workpiece
• 4-flute geometry promotes efficient chip evacuation

Compatibility

Designed as an OEM-style replacement and standard fitment for CNC machining centers and manual mills accepting a 7/16-inch shank diameter tool holder.

Installation Notes

This end mill is installed by qualified machinists following standard toolholding procedures for collet chucks or end mill holders. Ensure the machine spindle is fully stopped and locked out before changing tooling. Verify shank runout and holder cleanliness before seating the tool. Follow the machine manufacturer's recommended speeds and feeds for carbide tooling with AlTiN coatings.
