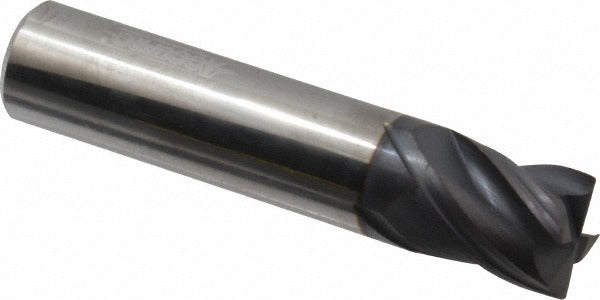

Accupro 95168632 Corner Chamfer End Mill 5/8 in 4 Flute

Product Description

The ACCUPRO 95168632 is a solid carbide corner chamfer end mill designed for precision chamfering and edge-breaking operations on ferrous and non-ferrous materials. Built from micrograin solid carbide and coated with AlTiN (aluminum titanium nitride), it handles high-heat applications and extends tool life in demanding cutting environments. The 4-flute, right-hand spiral geometry with a variable helix reduces chatter and improves surface finish. At 0.625 inches in diameter with a 0.0150-inch chamfer width and a 45-degree chamfer angle, this tool delivers consistent, repeatable edge geometry on machined components. It is centercutting and single-end, sized for use in CNC machining centers and manual mills alike.

This end mill is suited for chamfering, deburring, and edge preparation on machined parts in metalworking, toolroom, and production environments. The 3/4-inch length of cut and 5/8-inch shank diameter make it a practical choice for general-purpose chamfer work on steel, stainless, cast iron, and hardened alloys where AlTiN coating provides thermal resistance. Machinists and CNC operators in job shops and production facilities use this tool for both light finishing passes and functional edge breaks on precision components.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• AlTiN coating extends tool life in high-temperature cutting applications
• Variable helix geometry reduces vibration and chatter during cuts
• 45-degree chamfer angle with 0.0150-inch chamfer width for consistent edge prep
• Centercutting design allows plunge entry
• Right-hand cutting and right-hand flute direction for standard spindle use

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide corner chamfer end mill for CNC machining centers and manual mills accepting a 5/8-inch straight shank.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the shank in a collet or end mill holder rated for the shank diameter, verifying runout is within acceptable limits before starting the cut. Follow the tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
