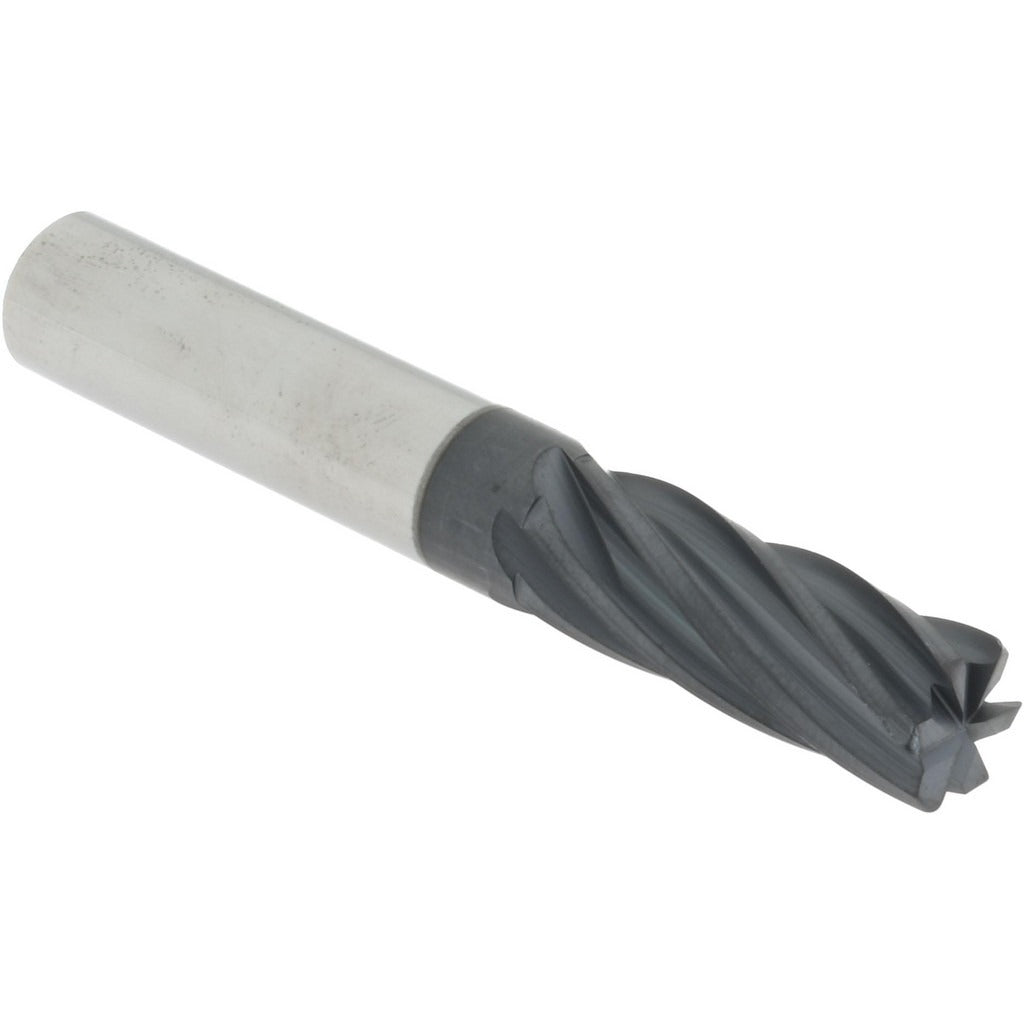

Accupro 95168573 Corner Radius End Mill 3/8 in 6 Flute

Product Description

The ACCUPRO 95168573 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and non-ferrous materials. Built from micrograin solid carbide, it features an AlTiN coating that improves heat resistance and extends tool life in high-speed and dry-cutting applications. The cutter runs 6 flutes with a right-hand spiral and right-hand cutting direction, producing a smooth finish and efficient chip evacuation. With a 0.0300-inch corner radius, this end mill reduces stress concentrations at part corners, improving surface finish and tool durability. Licensed machinists and CNC operators in job shop and production environments are the primary users.

This end mill is suited for finish and semi-finish milling passes where a controlled corner radius is required. It is a single-end, centercutting design, meaning it can plunge directly into the workpiece in addition to standard peripheral and slot milling. The 1-inch length of cut and 3/8-inch diameter make it a practical choice for shallow-to-moderate pocket milling and profiling on CNC machining centers and manual mills with appropriate collet or end mill holder setups.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• AlTiN coating for elevated heat resistance in high-speed and dry-cutting conditions
• 0.0300-inch corner radius reduces stress risers and improves part surface finish
• 6-flute configuration increases feed rate capability and finish quality
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand flute direction and cutting direction for standard CNC spindle compatibility

Compatibility

Designed as an OEM-style replacement or standard tooling selection for CNC machining centers and manual mills accepting a 3/8-inch straight shank end mill holder or collet.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully powered down and the machine is in a safe, locked-out state before mounting or removing the tool. Use a properly sized collet or end mill holder matching the 3/8-inch shank diameter and torque to the toolholder manufacturer's specification. Verify tool runout with a dial indicator after mounting before beginning any cutting operation.
