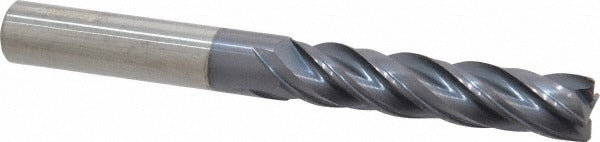

Accupro 95168563 Corner Chamfer End Mill 7/16 in 4 Flute

Product Description

The ACCUPRO 95168563 is a corner chamfer end mill designed for precision milling operations in ferrous and hard materials. Built from micrograin solid carbide and coated with AlTiN, it delivers extended tool life in demanding cutting environments including hardened steels and high-temperature alloys. The 7/16 inch diameter cutter runs 4 spiral flutes with a variable helix geometry, reducing chatter and improving surface finish. At 45 degrees, the chamfer angle produces clean, consistent edge breaks and chamfers at a 0.0150 inch chamfer width. This is a single-end, centercutting tool, meaning it can plunge directly into workpieces. Licensed machinists and CNC operators are the primary users.

This end mill is suited for CNC machining centers and manual milling machines where edge chamfering, deburring, and corner breaking are required on ferrous metals, stainless steel, titanium, and similar hard alloys. The long-length configuration with a 2 inch length of cut supports deeper chamfer passes in production and toolroom environments. The right-hand flute direction and right-hand cutting orientation are standard for conventional vertical milling setups. It is packaged and sold as a single unit.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating extends tool life in high-heat, dry-cutting applications
• Variable helix flute geometry reduces vibration and chatter during cut
• 45 degree chamfer angle with 0.0150 inch chamfer width for precise edge breaking
• Centercutting design allows direct plunge entry without pre-drilling
• Long-length configuration with 2 inch length of cut for deeper reach

Compatibility

Designed as a standard shank end mill compatible with 7/16 inch collets, ER-series collet chucks, and end mill holders on CNC machining centers and manual milling machines accepting right-hand tooling.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the spindle before changing tooling. Seat the 7/16 inch shank fully into the collet or holder and torque to the tool-holder specification. Verify runout with a dial indicator before cutting; excessive runout will accelerate wear on carbide tooling and degrade chamfer quality.
