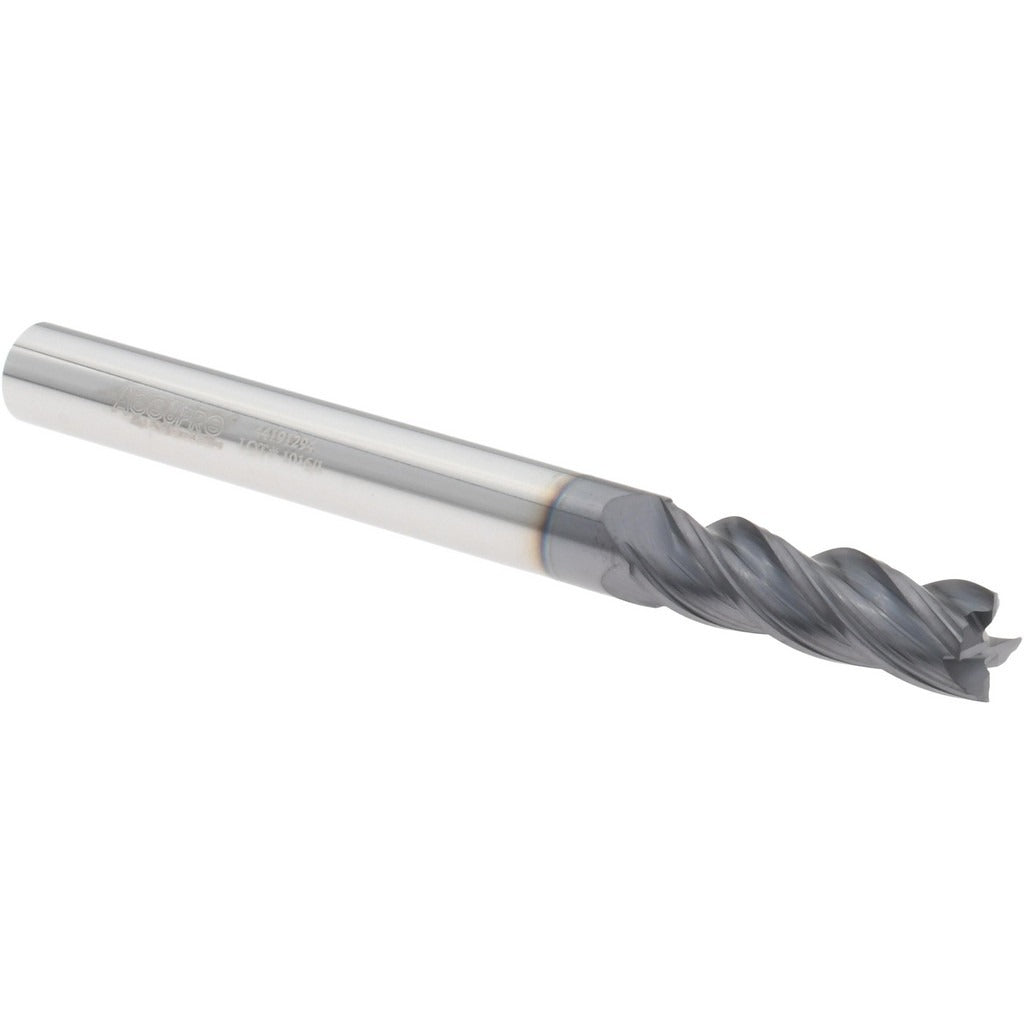

Accupro 95168335 Square End Mill 0.2362 in 4 Flute Carbide

Product Description

The ACCUPRO 95168335 is a solid carbide square end mill designed for precision metal removal in CNC milling and manual milling operations. It features a 0.2362-inch (6 mm) cutting diameter, a 0.748-inch length of cut, and a 0.2362-inch shank diameter. The tool is coated with AlTiN (aluminum titanium nitride) for extended heat resistance and tool life in ferrous and hardened materials. A variable helix geometry reduces chatter and improves surface finish. This end mill is installed and used by machinists and tool-and-die professionals working with milling machines and machining centers.

This end mill is suited for finish and semi-finish milling of steel, stainless steel, cast iron, and similar hard materials in both production and job-shop environments. The regular-length profile and 0.2362-inch shank make it compatible with standard collets and end mill holders used on vertical and horizontal machining centers. The center-cutting design allows for direct plunge entry as well as conventional side milling passes.

Key Features

• 0.2362-inch (6 mm) cutting diameter with mill diameter tolerance of +0.000 / -0.002 inches
• AlTiN coating provides thermal resistance for dry or minimal-lubrication cutting in hard materials
• Variable helix flute geometry reduces harmonic vibration and chatter during cutting
• 4-flute spiral configuration with right-hand cut and right-hand flute direction for standard milling operations
• Center-cutting capable — supports direct plunge milling without pilot drilling
• Micrograin solid carbide substrate for hardness and edge retention at elevated temperatures

Compatibility

Designed as an OEM-style replacement and standard-fitment tooling for CNC machining centers and manual mills using collets or end mill holders with a 0.2362-inch (6 mm) bore.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank in a properly sized collet or end mill holder, torquing the retention mechanism per the machine tool manufacturer specifications. Inspect the collet bore and tool shank for contamination or runout before clamping. Always verify spindle RPM and feed rate are appropriate for the workpiece material and cut depth before engaging the tool.
