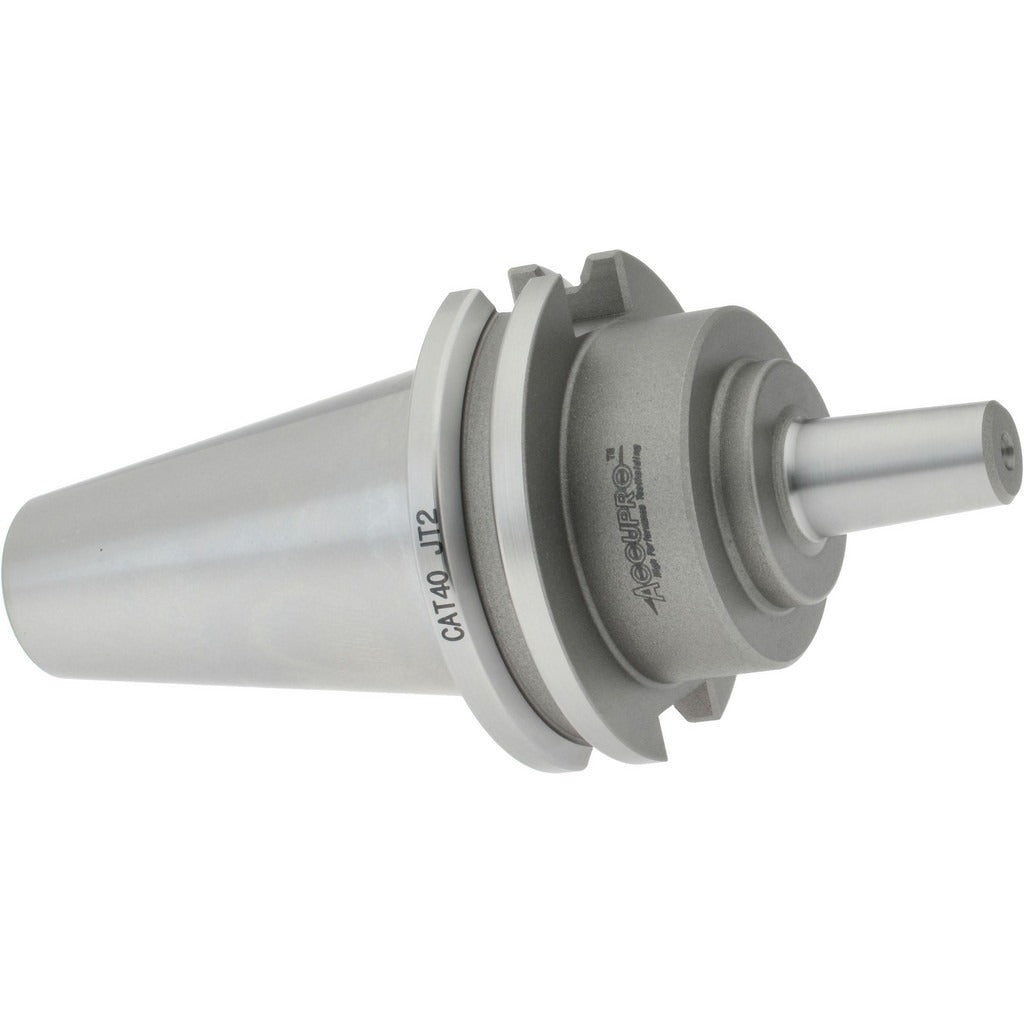

Accupro 778858 CAT40 to JT2 Taper Adapter

Product Description

The ACCUPRO 778858 is a CAT to Jacobs Taper adapter designed to connect CAT40 tooling shanks to Jacobs Taper 2 (JT2) chuck interfaces. It provides a rigid, concentric connection between a CAT40 spindle and a JT2 drill chuck, making it a practical tooling solution for machining centers and CNC mills equipped with CAT40 spindles. The adapter has a 1.61-inch projection and a 1.181-inch hole diameter. Coolant-through capability is not supported. Machinists and toolroom technicians install this adapter when adding a JT2 drill chuck to a CAT40 machine spindle.

This adapter is suited for use on vertical and horizontal machining centers with CAT40 spindle interfaces. It is commonly used in job shops, production facilities, and toolrooms where drill chucks with JT2 mounts need to be run on CAT40 machines. The adapter accepts standard JT2 taper drill chucks and seats into a CAT40 spindle using the standard V-flange retention system.

Key Features

• CAT40 outside taper seats directly into CAT40 spindle interfaces
• JT2 inside taper accepts standard Jacobs Taper 2 drill chucks
• 1.61-inch projection provides clearance for chuck installation
• 1.181-inch hole diameter matches JT2 taper specifications
• No coolant-through, simplifying setup on non-coolant-through spindles

Compatibility

Designed for use with CAT40 spindle machines and JT2 taper drill chucks. Compatible with standard CAT40 V-flange tooling retention systems.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before installing or removing any tooling adapter. Seat the CAT40 taper fully into the spindle and engage the drawbar to the correct retention force using a torque wrench per the machine tool manufacturer specifications. Press or drive the JT2 chuck onto the adapter taper using the appropriate arbor press procedure before mounting the assembly in the spindle.
