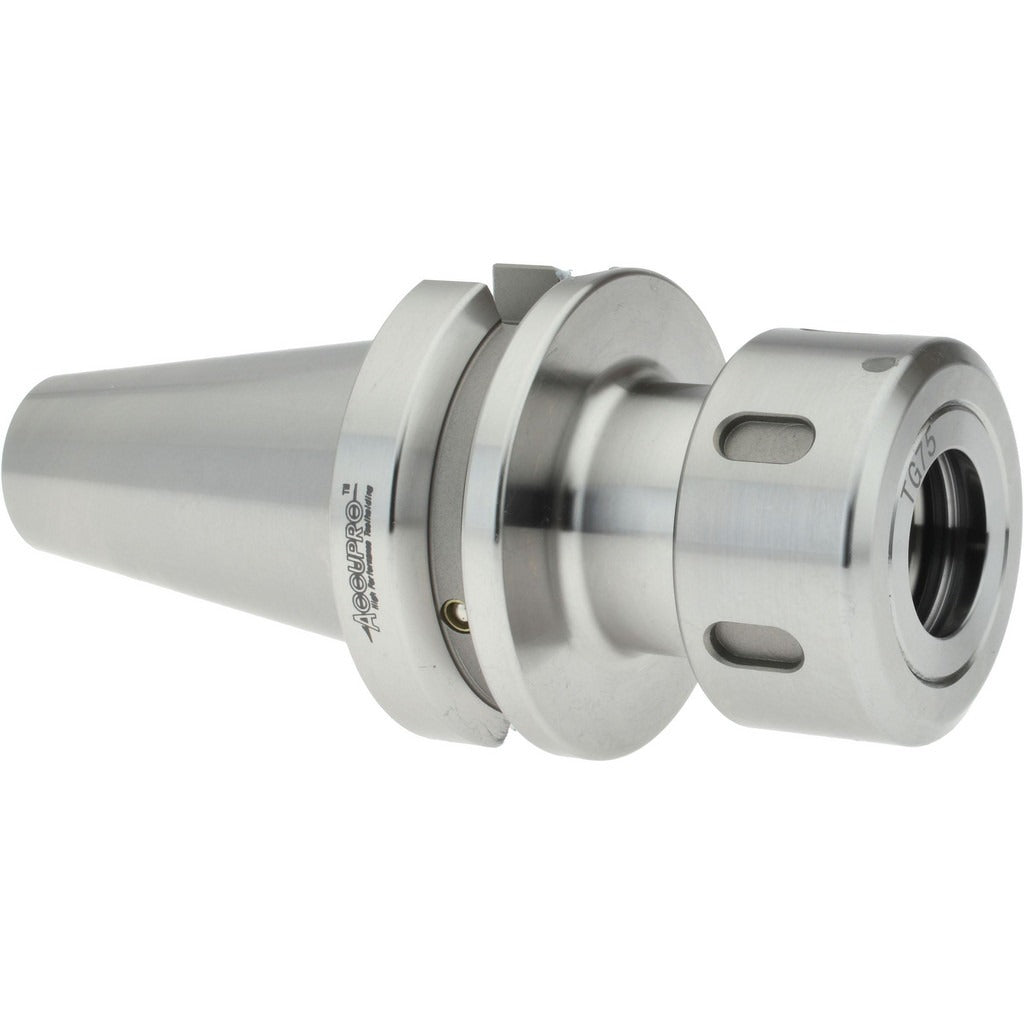

Accupro 776976 Collet Chuck BT40 Tg PG75 Through Coolant

Product Description

The ACCUPRO 776976 is a taper shank collet chuck designed for precision CNC machining applications. It uses the Single Angle collet system with a TG / PG75 collet series and a BT40 taper shank interface. The chuck provides a 3-inch projection and holds a total indicator runout (TIR) of 0.0002 inches, supporting accurate, repeatable tool positioning at the spindle. Through-coolant delivery is supported via through-spindle and DIN flange coolant types. This chuck is installed by CNC machinists and toolroom technicians on machining centers requiring a rigid, balanced tool holding solution.

This collet chuck is suited for vertical and horizontal CNC machining centers equipped with a BT40 spindle taper. It accommodates a wide collet capacity range, accepting tooling from 3/64 inch minimum to 3/4 inch maximum. The through-coolant feature makes it appropriate for high-speed operations where directed coolant flow at the cutting edge improves tool life and chip evacuation. It is balanced to 20,000 RPM, supporting high-speed machining applications in production and job shop environments.

Key Features

• Single Angle collet system with TG / PG75 collet series for broad tooling compatibility
• BT40 taper shank for direct mounting to BT40-spindle machining centers
• 3-inch projection for reach into workpiece features and fixtures
• 0.0002-inch TIR for precise, repeatable tool concentricity
• Through-coolant compatible via through-spindle and DIN flange delivery
• Balanced to 20,000 RPM for high-speed CNC spindle operation

Compatibility

Designed for use with CNC machining centers fitted with a BT40 spindle taper interface and compatible with TG / PG75 series Single Angle collets ranging from 3/64 inch to 3/4 inch capacity.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician with the machine powered down and the spindle fully stopped before mounting or removing the chuck. Use the appropriate BT40 pull stud and torque the retention knob per the machining center manufacturer specifications. Verify collet seating and runout with a dial indicator before putting the assembly into production. Ensure coolant lines are properly connected if through-coolant operation is required.
