Accupro 775434 Shell Mill Holder CAT40 Taper Shank

Product Description

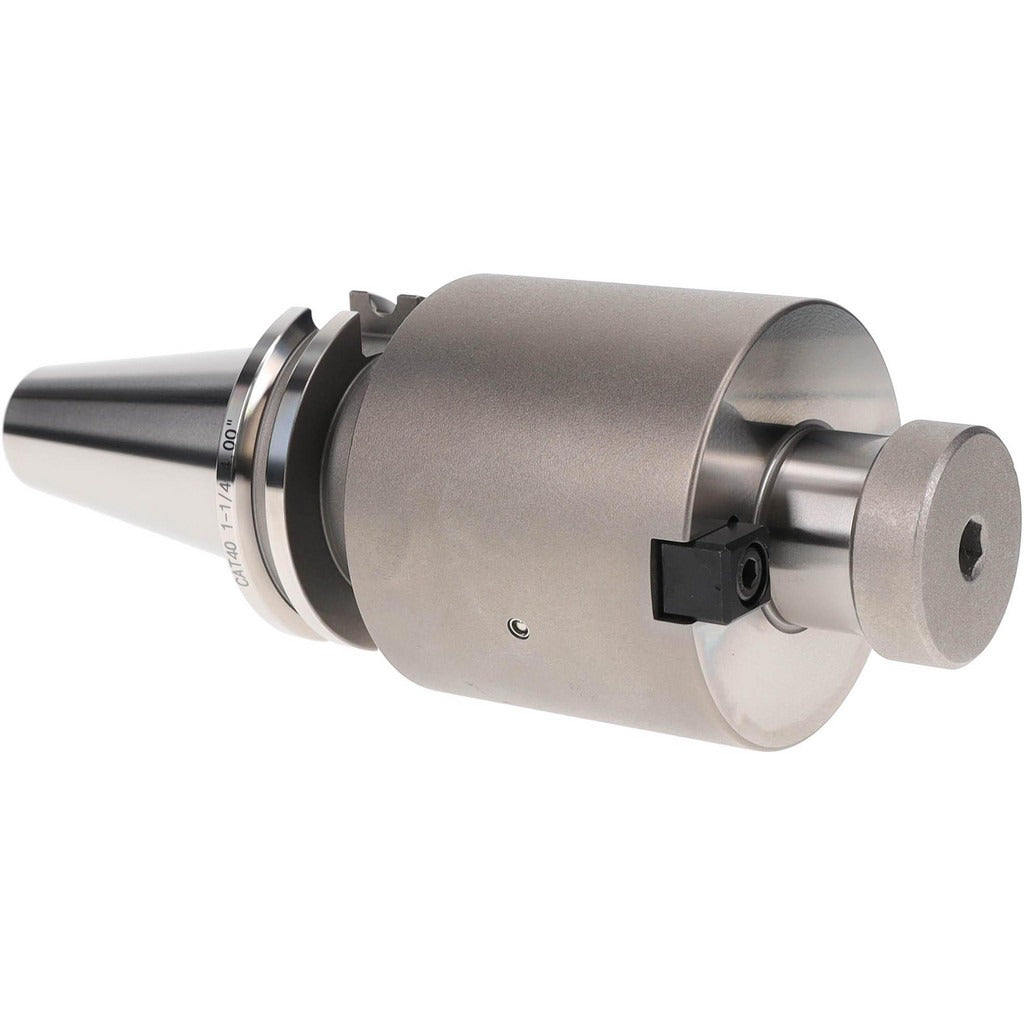

The ACCUPRO 775434 is a CAT40 taper shank shell mill holder designed for milling operations on vertical and horizontal machining centers. It features a 1-1/4 inch pilot diameter and a projection of 4 inches from flange to nose end. Through-spindle and DIN flange coolant delivery are both supported, directing coolant directly to the cutting zone for improved tool life and chip evacuation. The holder maintains a TIR of 0.0002 inches, providing the runout accuracy required for face milling and shell mill operations. A 5/8-18 lock screw thread secures the shell mill body. This holder is installed by CNC machinists and setup technicians in production and job-shop environments.

The 775434 is suited for face milling and surface finishing applications where shell mills in the 3 to 3-1/2 inch cutting diameter range are used. It fits machining centers equipped with CAT40 spindles, which are common in mid-size vertical machining centers (VMCs) and horizontal machining centers (HMCs) across both job shop and production floor settings. The through-spindle and DIN flange dual coolant configuration makes it appropriate for cutting ferrous and non-ferrous materials where coolant management at the tool face is a priority.

Key Features

• CAT40 taper shank for compatibility with standard CAT40 spindle tooling systems
• 1-1/4 inch pilot diameter supports shell mills in the 3 to 3-1/2 inch cutting diameter range
• TIR of 0.0002 inches for accurate, low-runout shell mill engagement
• Dual coolant delivery via through-spindle and DIN flange configurations
• 4 inch projection from flange to nose end for clearance in typical milling setups
• 5/8-18 lock screw thread for positive shell mill retention

Compatibility

Designed as an OEM-style shell mill holder for machining centers with CAT40 spindle interfaces, accepting shell mills with a 1-1/4 inch pilot bore in the 3 to 3-1/2 inch cutting diameter range.

Installation Notes
