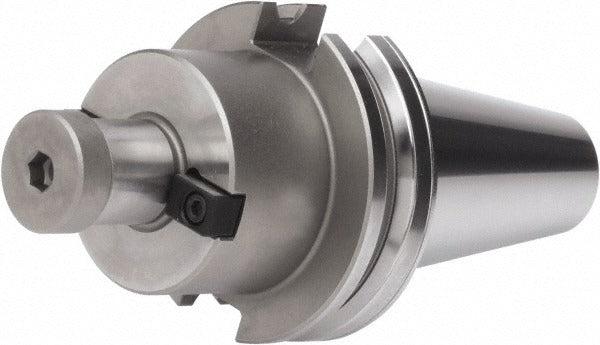

Accupro 771206 Shell Mill Holder CAT40 1.5 Inch Pilot

Product Description

The ACCUPRO 771206 is a CAT40 dual contact taper shank shell mill holder designed for use on CNC machining centers requiring rigid, high-accuracy tool mounting. The holder features a 1.5-inch pilot diameter, an overall length of 6.687 inches, and a flange-to-nose projection of 4 inches. Dual contact engagement at both the taper and flange face reduces runout and improves rigidity compared to standard single-contact CAT40 holders. Through-spindle and DIN flange coolant delivery are both supported. Total indicator runout (TIR) is rated at 0.0002 inches. Installed by CNC machinists and toolroom technicians, this holder suits applications demanding precision face milling.

The 771206 is suited for production and job-shop environments running face mills, indexable shell mills, and similar arbor-mounted cutters on CAT40-spindle vertical or horizontal machining centers. The holder accommodates shell mill cutting diameters in the 4-inch to 5-inch range. Dual contact geometry makes it appropriate for high-speed applications balanced to 10,000 RPM. The through-spindle coolant path supports wet cutting and chip evacuation at the cutting zone, making this holder practical for steel, cast iron, and aluminum face milling operations.

Key Features

• CAT40 dual contact taper shank for increased flange-face rigidity and reduced tool deflection
• 1.5-inch pilot diameter with 3.8-inch nose diameter accommodates 4-inch to 5-inch shell mills
• TIR of 0.0002 inches for precision runout control
• Through-spindle and DIN flange coolant delivery for effective chip and heat management
• Balanced to 10,000 RPM for stable high-speed operation
• Lock screw thread size 3/4-16 for secure cutter retention

Compatibility

Designed as an OEM-style shell mill holder for CAT40-spindle machining centers accepting dual contact taper tooling with a 1.5-inch pilot and shell mills in the 4-inch to 5-inch cutting diameter range.

Installation Notes
