Accupro 771199 Shell Mill Holder CAT40 1 Inch Pilot

Product Description

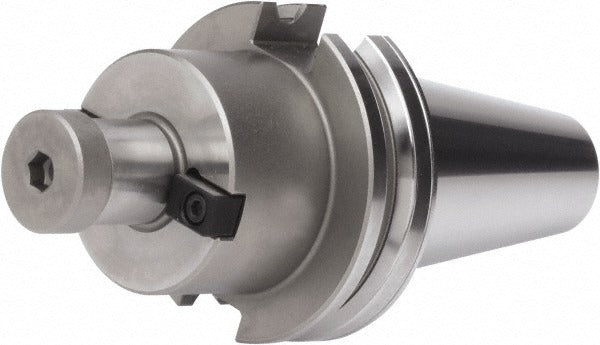

The ACCUPRO 771199 is a CAT40 dual contact taper shank shell mill holder designed for use on vertical and horizontal machining centers equipped with dual contact spindles. The dual contact interface engages both the taper and the spindle face simultaneously, improving rigidity and reducing runout compared to standard single-contact toolholders. With a 1-inch pilot diameter and a flange-to-nose projection of 6 inches, this holder positions shell mill cutters for a wide range of face milling and shoulder milling applications. Total indicated runout (TIR) is rated at 0.0002 inches, and the assembly is balanced to 10,000 RPM. Through-spindle and DIN flange coolant delivery are both supported.

This shell mill holder is suited for production machining environments where face milling, roughing, or finishing operations are performed on steel, cast iron, aluminum, and similar workpiece materials. The 6-inch flange-to-nose projection accommodates fixtures or workpiece features that require additional clearance. The lock screw thread size is 1/2-20, matching standard shell mill arbor configurations. The accepted shell mill cutting diameter range is 2-1/4 to 2-3/4 inches, making it appropriate for mid-range shell mills commonly used in job shop and production floor setups. Installation is performed by a machinist or tooling technician following the machine tool manufacturer guidelines.

Key Features

• CAT40 dual contact taper shank for enhanced rigidity and face contact with the spindle
• 1-inch pilot diameter accepts shell mills in the 2-1/4 to 2-3/4 inch cutting diameter range
• 6-inch flange-to-nose projection for clearance in deep or obstructed setups
• TIR of 0.0002 inches for precise cutter positioning
• Balanced to 10,000 RPM for stable operation at higher spindle speeds
• Through-spindle and DIN flange coolant delivery supported

Compatibility

Designed as an OEM-style replacement and standard-fit shell mill holder for CAT40 dual contact spindle machining centers accepting 1-inch pilot shell mills.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before mounting or removing any toolholder. Use the correct torque specifications provided by the machine tool manufacturer when securing the drawbar. Inspect the spindle taper and toolholder taper for nicks, burrs, or contamination before seating the holder, as surface defects will directly affect runout and balance.
