Accupro 771198 Shell Mill Holder CAT40 1 Inch Pilot

Product Description

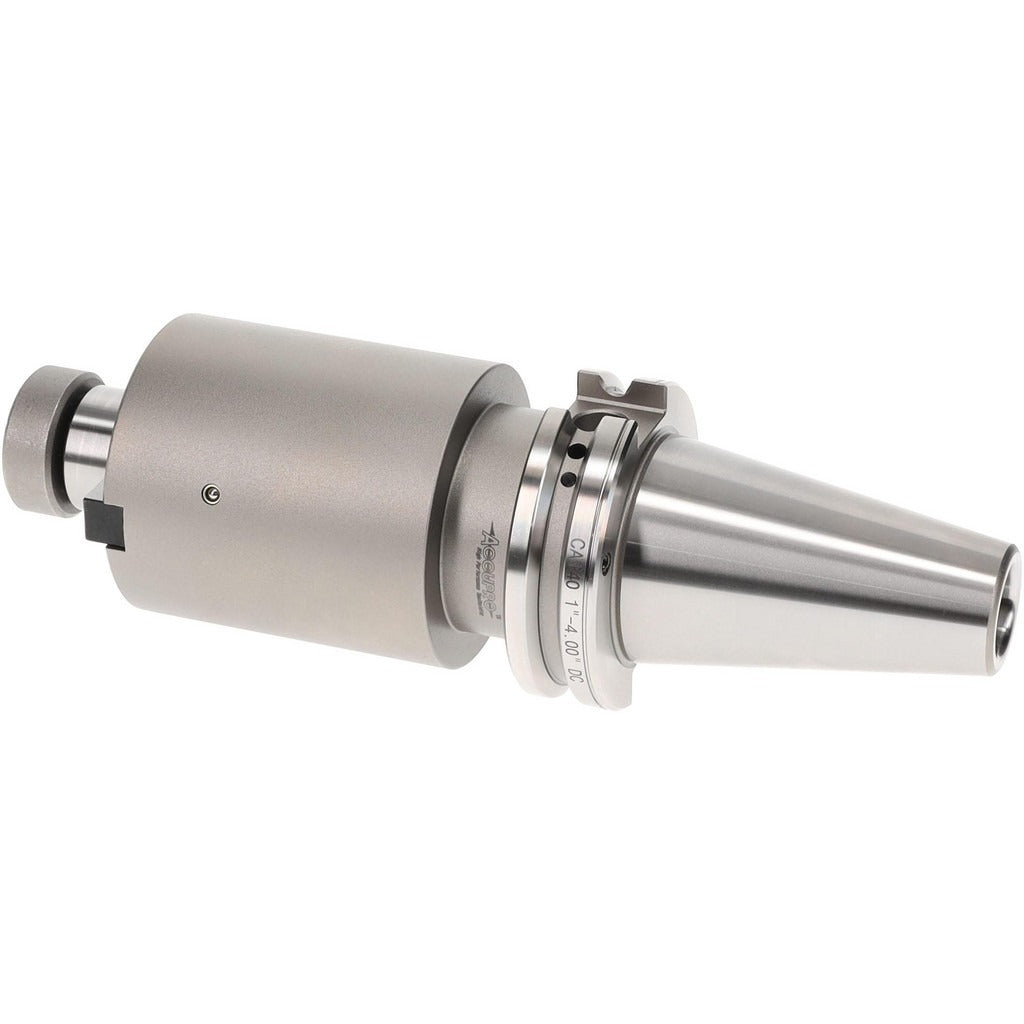

The ACCUPRO 771198 is a CAT40 dual contact taper shank shell mill holder designed for milling operations requiring rigidity and precision. It accepts shell mills with a 1-inch pilot diameter and provides 4 inches of projection from flange to nose end, giving clearance for face milling and large-diameter cutter work. The dual contact taper shank engages both the taper and the spindle face simultaneously, reducing runout and improving stability at higher RPM. Balanced to 10,000 RPM and rated to a TIR of 0.0002 inches, this holder is suited for demanding CNC machining center applications. Installation is performed by qualified machinists or toolroom technicians.

This holder is configured for horizontal and vertical CNC machining centers equipped with a CAT40 spindle interface. It accepts shell mill cutters ranging from 2-1/4 to 2-3/4 inches in cutting diameter. The through-spindle and DIN flange coolant delivery system supports both internal coolant and flange-directed coolant flow, making it appropriate for applications where chip evacuation and thermal management are critical. The 1/2-20 lock screw thread secures the cutter to the holder body.

Key Features

• Dual contact taper shank engages taper and spindle face for reduced runout and improved rigidity
• Balanced to 10,000 RPM for stable high-speed milling operations
• TIR of 0.0002 inches for consistent cutter positioning
• Through-spindle and DIN flange coolant delivery for thermal control and chip management
• Accepts shell mills from 2-1/4 to 2-3/4 inches cutting diameter
• 1/2-20 lock screw thread for secure cutter retention

Compatibility

Designed for CNC machining centers with a CAT40 spindle interface. Compatible with shell mill cutters having a 1-inch pilot diameter and cutting diameter range of 2-1/4 to 2-3/4 inches.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machining center spindle before mounting or removing the holder. Inspect the spindle taper and holder taper for contamination or damage before seating; debris will affect dual contact engagement and runout. Torque the retention knob and lock screw according to the machine tool builder specifications for CAT40 tooling.
