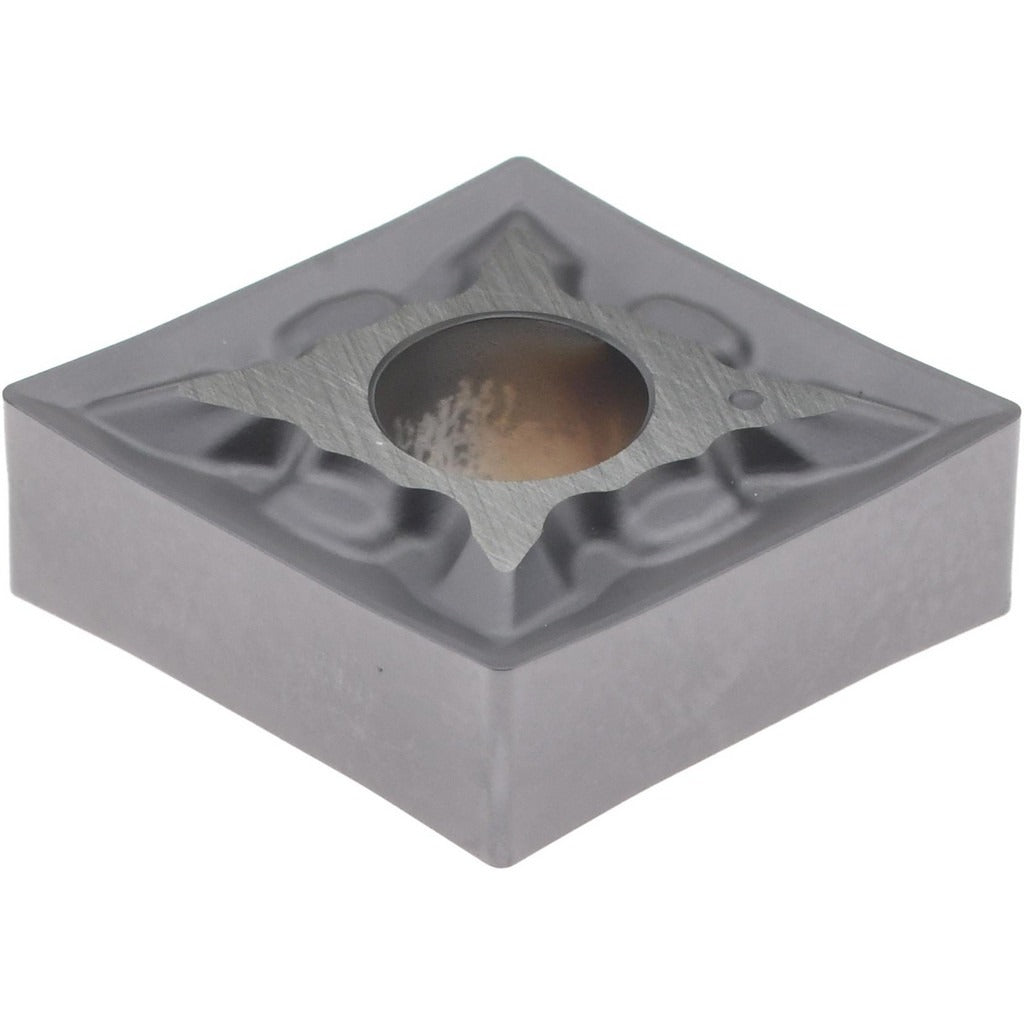

Accupro 75562512 CNMG431 Carbide Turning Insert

Product Description

The ACCUPRO 75562512 is a CNMG-style indexable carbide turning insert designed for precision external turning operations on CNC and manual lathes. It carries an ANSI insert code of CNMG431 and an ISO equivalent of CNMG120404. The insert is manufactured from carbide in grade ACM25P with a PVD coating and features the IPK+ chip breaker geometry. With a diamond (rhombic) 80-degree insert shape, a 0.40 mm (0.0157 inch) corner radius, and four usable cutting edges, this insert delivers a dependable cost-per-edge value for medium-duty turning applications.

This insert is suited for turning steel, stainless steel, and special or super alloys in both residential shop and industrial production environments. The ACM25P grade provides high wear resistance through the full range to high toughness for steel (P-class workpieces), high wear resistance to moderate wear resistance and toughness for stainless steel (M-class), and moderate wear resistance and toughness for special and super alloys (S-class). It is used by machinists and CNC operators running roughing-to-finishing passes where consistent chip control and tool life are required.

Key Features

• CNMG431 / CNMG120404 insert geometry with 80-degree diamond shape for strong cutting edge
• PVD-coated ACM25P carbide grade rated for P, M, and S primary workpiece material codes
• IPK+ chip breaker for effective chip control across steel and stainless applications
• Four cutting edges per insert with negative side clearance (clearance code N)
• Neutral hand orientation compatible with both left- and right-hand toolholders
• Compatible holding methods include clamp, lever lock, pin, and screw

Compatibility

Designed as an OEM-style replacement or standard indexable insert for CNMG431-compatible toolholders with a 0.2031-inch hole diameter. Insert series is CI. Verify toolholder pocket geometry and clamping method before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Before changing inserts, power down the machine and follow lockout/tagout procedures per applicable facility safety standards. Use the appropriate torque wrench or insert key specified by the toolholder manufacturer when securing clamp screws or lever-lock mechanisms. Inspect the toolholder pocket for wear or debris before seating the insert.
