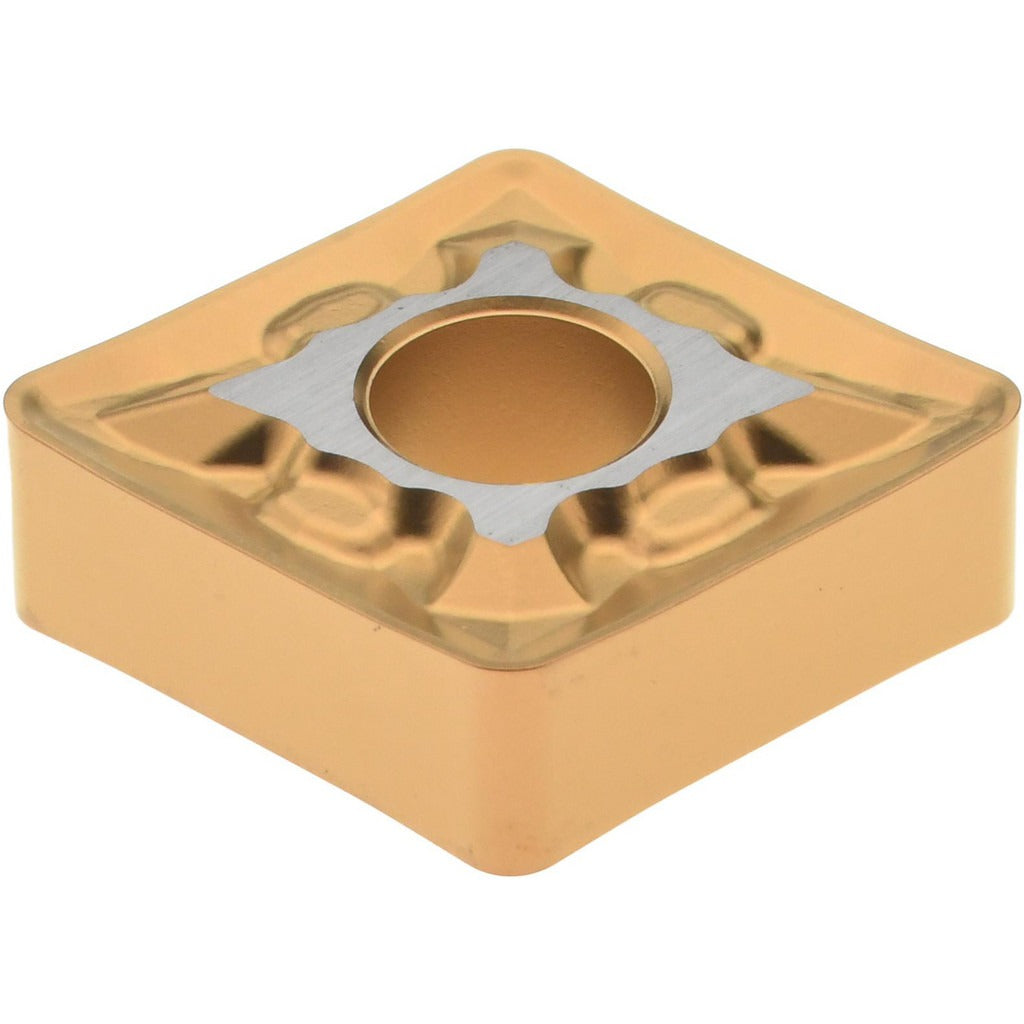

Accupro 75562363 CNMG433 Cvd Carbide Turning Insert

Product Description

The ACCUPRO 75562363 is a CNMG-style indexable turning insert designed for precision metal cutting on CNC lathes and turning centers. Built from carbide with a CVD coating and an 80-degree diamond (rhombic) insert shape, this insert delivers high wear resistance across a range of cutting conditions. The IPK+ chip breaker geometry controls chip flow during finishing and semi-finishing operations. With four cutting edges and a neutral hand orientation, this insert suits a wide range of external turning applications in production machining environments. Licensed machinists and CNC operators working in job shops or production facilities are the primary users of this insert.

This insert is suited for turning steel and stainless steel workpiece materials, covering ISO material groups P and M. It performs well in applications requiring high wear resistance through moderate wear resistance paired with moderate toughness, making it a practical choice for both continuous and mildly interrupted cuts on ferrous materials. The CVD-coated carbide grade ACM20P is formulated specifically for these material groups, balancing edge retention with resistance to built-up edge and thermal wear.

Key Features

• CVD-coated carbide construction with grade ACM20P for steel and stainless steel cutting
• 80-degree diamond (rhombic) insert shape provides strong cutting edge geometry
• IPK+ chip breaker for controlled chip evacuation during turning operations
• Four cutting edges per insert maximize tooling value
• Neutral hand orientation compatible with a broad range of tool holders
• Compatible with clamp, lever lock, pin, and screw insert holding methods

Compatibility

Designed for use in CNMG-style tool holders accepting ANSI insert code CNMG433 or ISO insert code CNMG120412. Insert holding methods include clamp, lever lock, pin, and screw configurations. Fits holders conforming to ANSI and ISO CNMG standards in the 12 size class.

Installation Notes

Installation of indexable turning inserts should be performed by a qualified machinist or CNC operator following the tool holder manufacturer's clamping torque and seating procedure. Always power down and lock out the machine before indexing or replacing inserts. Inspect the insert pocket and seating surface for chips or debris before seating a new insert. Do not force-seat inserts, as this can damage the pocket and affect cutting accuracy.
