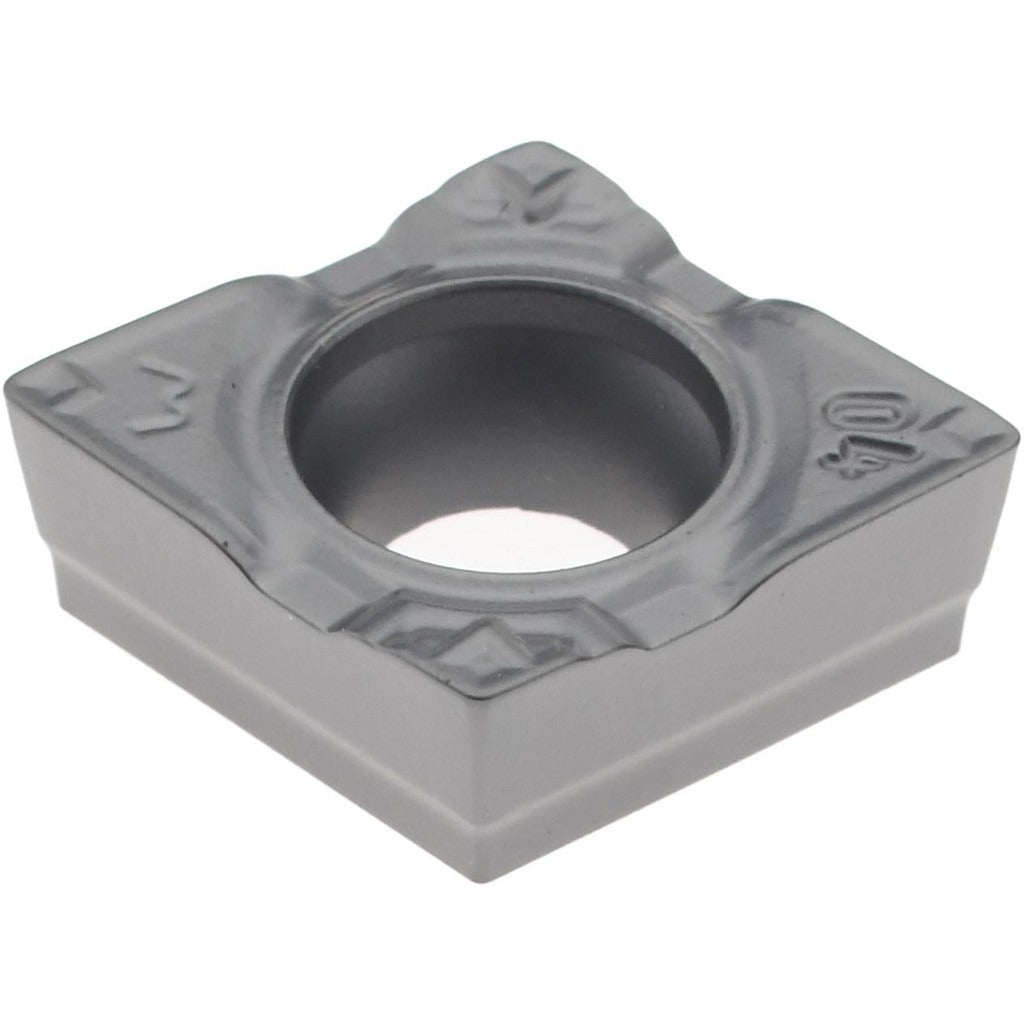

Accupro 75511600 Ccmx Turning Insert ACP25M Cvd Carbide

Product Description

The ACCUPRO 75511600 is a CCMX-style indexable turning insert designed for precision metal cutting on CNC lathes and turning centers. It features an 80-degree rhombic insert shape with a 7-degree relief angle and a 0.40 mm (0.0157 inch) corner radius. The insert is manufactured from solid carbide with a CVD coating under the ACP25M grade designation. Screw-held mounting keeps the insert secure during interrupted or continuous cuts. With two cutting edges per insert, it offers economical tool life. Machinists and CNC operators working in production turning applications will find this insert suited for medium to finishing cuts in steel and similar workpiece materials.

This insert is intended for turning operations in production machining environments, including job shops and manufacturing facilities running CNC lathes. It carries the ANSI code CCMX32.51 and fits toolholders designed for CCMX series inserts with a C insert shape code. The PWX chip breaker geometry promotes reliable chip control across a range of depths of cut up to 3.50 mm (0.1378 inches). The neutral hand orientation makes it adaptable to standard right-hand and compatible toolholder configurations.

Key Features

• ACP25M grade solid carbide substrate with CVD coating for wear resistance
• 80-degree rhombic insert shape (Shape Code C) for versatile turning geometry
• PWX chip breaker for controlled chip evacuation during turning
• 7-degree relief angle (Clearance Code C) reduces rubbing on the workpiece
• Screw-held insert mounting method for secure, repeatable indexing
• Two cutting edges per insert for extended usable tool life

Compatibility

Designed as an OEM-style replacement turning insert for CCMX series toolholders conforming to ANSI Code CCMX32.51. Verify toolholder pocket geometry, insert size code 09, and inscribed circle diameter before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the turret is locked out before indexing or replacing inserts. Use the appropriate torx or hex key to tighten the clamping screw to the toolholder manufacturer's specified procedure without over-torquing. Inspect the insert pocket and seating surface for chips or debris before seating the new insert.
