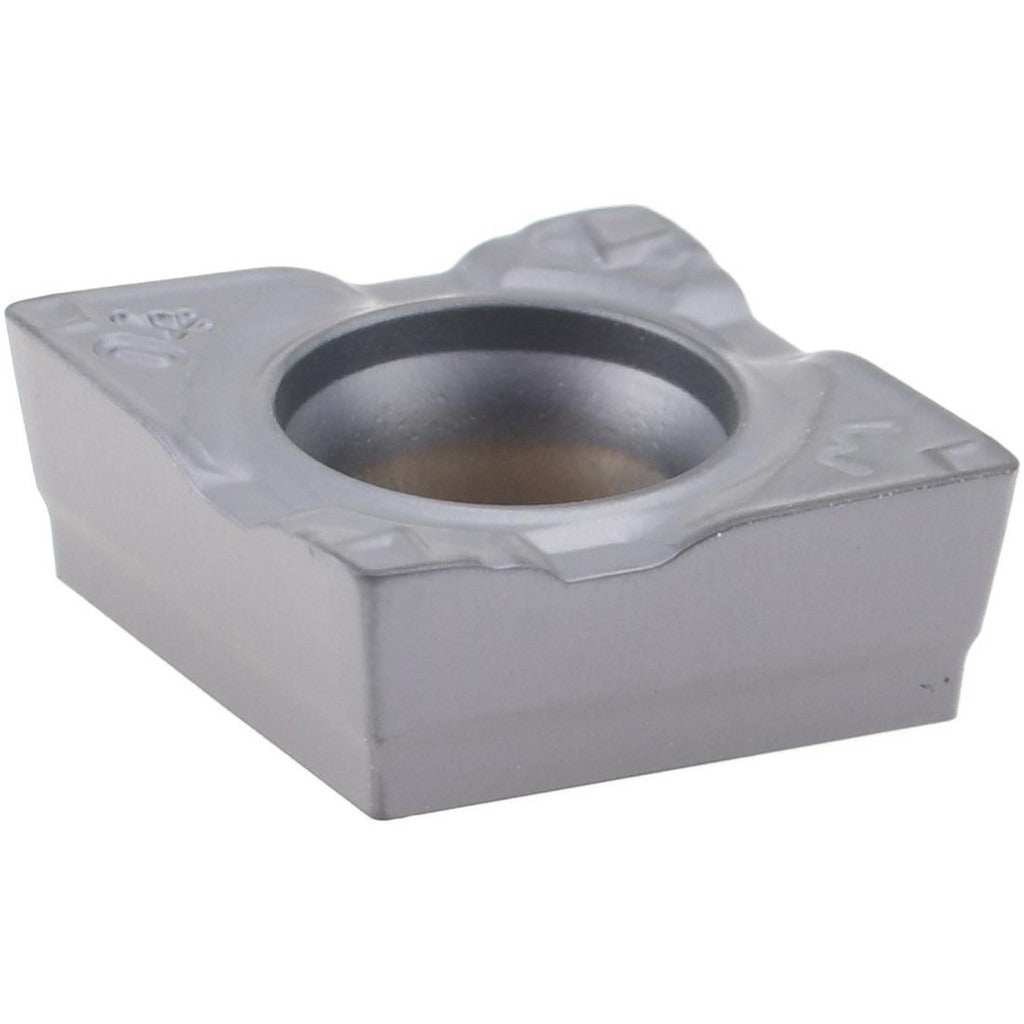

Accupro 75297721 Ccmx Turning Insert Solid Carbide ACM35P

Product Description

The ACCUPRO 75297721 is a solid carbide turning insert designed for precision metal cutting operations on CNC lathes and turning centers. Manufactured to ANSI Code CCMX32.51, this insert features an 80-degree rhombic shape (Insert Shape Code C) with a 7-degree relief angle and a 0.40 mm (0.0157 inch) corner radius. The ACM35P grade substrate carries a PVD coating for extended tool life across a range of workpiece materials. The PWX chip breaker geometry promotes controlled chip evacuation during turning passes. It is held in place by a screw-clamp toolholder and is suited for use by machinists and CNC operators in production and job-shop environments.

This insert is intended for external and internal turning applications where a neutral-hand, screw-lock CCMX-style insert is required. The 80-degree included angle provides a strong cutting edge suitable for general-purpose turning, facing, and light profiling. With a maximum depth of cut of 3.50 mm (0.1378 inches) and an inscribed circle of 9.53 mm (0.3752 inches), it fits toolholders sized for the 09 insert size code. It is sold individually with a minimum order quantity of 10 units per order.

Key Features

• Solid carbide substrate with PVD coating for wear resistance across steel, stainless, and non-ferrous materials
• 80-degree rhombic insert shape (Code C) with 7-degree relief angle for positive clearance
• PWX chip breaker geometry for consistent chip control during turning
• Screw-clamp holding method compatible with standard CCMX-style toolholders
• Neutral hand orientation for flexible toolholder pairing
• Conforms to ANSI Code CCMX32.51 for dimensional interchangeability

Compatibility

Designed as a direct-fit replacement for CCMX-style screw-lock turning insert seats conforming to ANSI Code CCMX32.51, insert size code 09. Compatible with toolholders specifying a C-shape, M-tolerance, C-clearance insert with a 0.1732-inch hole diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine in a safe, locked-out state. Ensure the toolholder pocket and seating surface are clean and free of chips before seating the insert. Use the appropriate torx or hex key to torque the clamping screw according to the toolholder manufacturer specification. Inspect the cutting edge and seating contact before resuming machine operation.
