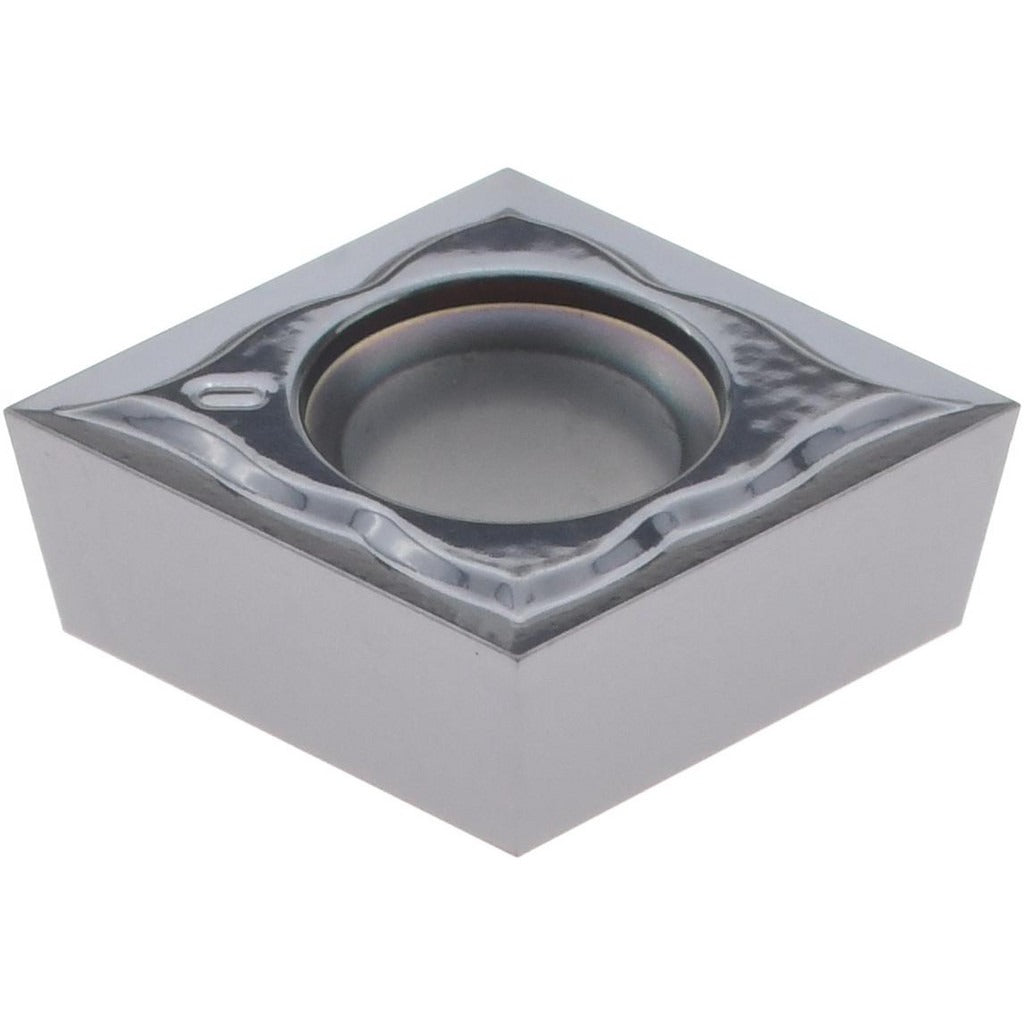

Accupro 75289017 Ccgt Turning Insert 80 Deg Carbide

Product Description

The ACCUPRO 75289017 is a CCGT-style carbide turning insert designed for precision turning operations on stainless steel and cast iron workpieces. Manufactured under the ACM20K grade with a PVD coating, this insert delivers high wear resistance with moderate toughness, making it well suited for finishing and semi-finishing cuts. The insert features an 80-degree diamond (rhombic) shape, a positive side clearance, and a neutral hand orientation. It is held in place via a screw-lock method and is compatible with standard CCGT toolholders. Licensed machinists and CNC operators working in job shop or production environments are the primary installers.

This insert is intended for turning applications where surface finish and edge integrity are priorities, particularly on stainless steel (ISO material group M) and cast iron (ISO material group K). The EN-EF chip breaker geometry is suited for light to moderate depths of cut, with a maximum depth of cut of 0.0531 inches (1.35 mm). The 0.3752-inch inscribed circle and 0.1563-inch thickness conform to ANSI size code 32.5X0 and ISO size code 09T3003, allowing direct drop-in use in existing CCGT toolholding systems.

Key Features

• ACM20K grade PVD-coated carbide for high wear resistance on stainless steel and cast iron
• 80-degree diamond insert shape (C) for strong cutting edge geometry
• Positive side clearance reduces cutting forces and heat buildup
• EN-EF chip breaker optimized for finishing to semi-finishing cuts
• Screw-lock holding method for secure, repeatable seating in the toolholder
• Two cutting edges per insert for extended tool life per unit

Compatibility

Conforms to ANSI insert code CCGT32.5X0 and ISO insert code CCGT09T3003. Designed as a direct replacement for toolholders accepting CCGT09T3 series inserts with screw-lock clamping.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Before swapping inserts, power down and lock out the machine spindle per facility lockout/tagout procedures. Use the appropriate Torx or hex driver to seat the insert screw to toolholder manufacturer specifications without overtightening, which can crack the carbide substrate. Verify insert seating and edge orientation before resuming cuts.
