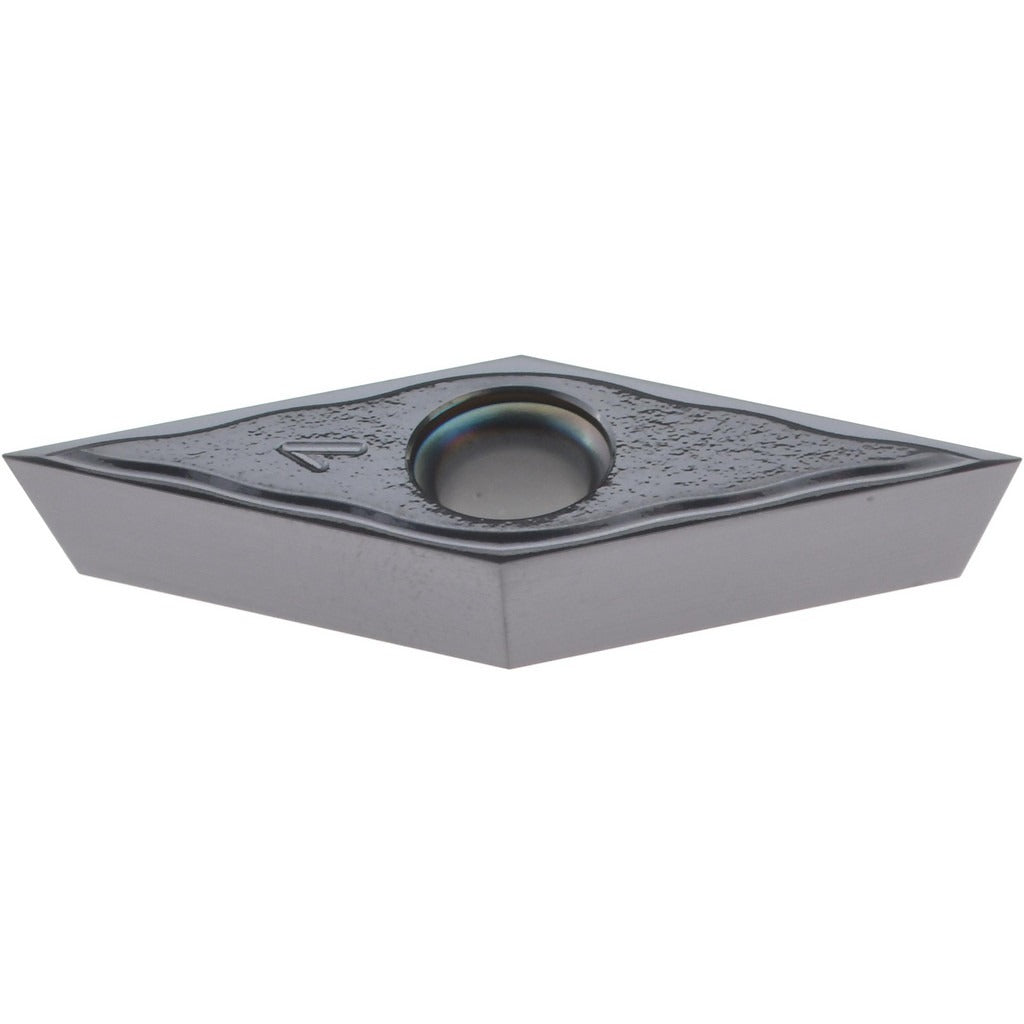

Accupro 75272468 Turning Insert VCGT33.5 Carbide Pvd

Product Description

The ACCUPRO 75272468 is a VCGT-style carbide turning insert designed for precision metal cutting on CNC lathes and turning centers. It carries ANSI code VCGT33.5 and ISO code VCGT160401. The insert features a 35-degree diamond (rhombic) shape with a 7-degree relief angle and a positive side clearance, making it well suited for light finishing and semi-finishing passes. The PVD-coated ACM20K carbide grade delivers high wear resistance with maintained toughness, covering stainless steel (M) and cast iron (K) workpiece materials. Screw-style holding secures the insert in compatible toolholders. Two cutting edges are available per insert.

This insert is used in turning operations on CNC and manual lathes where tight tolerances and fine surface finishes are required. The EN-EF chip breaker geometry supports light to moderate depths of cut, with a maximum depth of cut of 0.0531 inches (1.35 mm). Typical applications include finishing stainless steel components and gray or ductile cast iron parts. The neutral hand orientation makes it adaptable to both right-hand and left-hand toolholder setups in production and job-shop environments.

Key Features

• VCGT 35-degree diamond insert shape for low cutting forces on finishing operations
• ACM20K PVD carbide grade rated for stainless steel (M) and cast iron (K) materials
• Positive side clearance geometry reduces rubbing and heat buildup at the cutting edge
• EN-EF chip breaker supports light finishing to semi-finishing passes
• Screw-style insert holding for secure, repeatable seating in toolholders
• Two usable cutting edges per insert for extended tool economy

Compatibility

Designed as an OEM-style replacement turning insert for VCGT-style screw-clamp toolholders accepting VCGT33.5 (ANSI) or VCGT160401 (ISO) inserts with a 0.1752-inch hole diameter.

Installation Notes

Installation is performed by CNC machinists or toolroom technicians. Power down and de-energize the machine spindle before indexing or replacing inserts. Use the appropriate Torx or hex key to the toolholder manufacturer's specified seating procedure when tightening the clamping screw. Inspect the insert pocket and screw threads for chips or damage before seating a new insert to ensure proper contact and runout.
