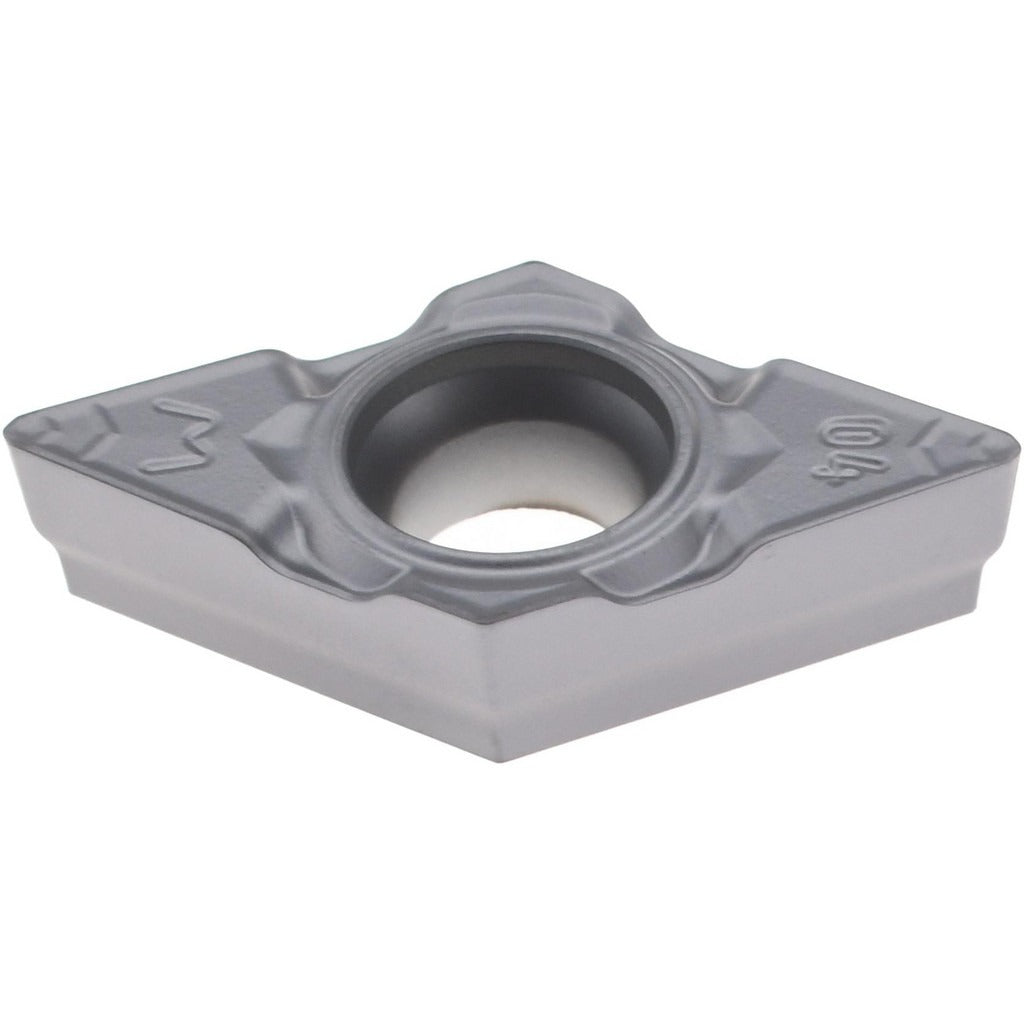

Accupro 75256875 Dcmx Turning Insert ACM35P Solid Carbide

Product Description

The ACCUPRO 75256875 is a solid carbide turning insert designed for precision metal cutting operations on CNC lathes and turning centers. It features a DCMX insert style with a rhombic (D-shape) geometry and a 55-degree included angle, providing a sharp, defined cutting profile suited for finishing and light profiling passes. The ACM35P manufacturer grade combines a solid carbide substrate with a PVD coating for extended tool life and thermal resistance at the cutting edge. The neutral hand orientation and screw-type insert holding method make this insert compatible with standard DCMX-style toolholders. Licensed machinists and CNC operators install this insert as part of routine tooling maintenance and setup.

This insert is used in general-purpose turning applications on a range of metallic workpiece materials where a 55-degree diamond geometry is specified. The DCMX11T304 ISO code and ANSI code DCMX32.51 identify the exact form factor for toolholder selection. With a maximum depth of cut of 0.1378 inches (3.50 mm) and a corner radius of 0.0157 inches (0.40 mm), this insert suits finishing cuts and contour turning where tight tolerances and surface finish matter. It is sold individually but subject to a minimum order quantity of 10 units per order.

Key Features

• Solid carbide substrate with PVD coating for wear resistance and edge integrity
• DCMX insert style, rhombic shape with 55-degree included angle for profiling and finishing
• 0.0157-inch (0.40 mm) corner radius for controlled surface finish on finishing passes
• Maximum depth of cut of 0.1378 inches (3.50 mm) suitable for light to medium turning
• Neutral hand insert compatible with standard DCMX screw-clamp toolholders
• PWX chip breaker geometry for effective chip control during turning operations

Compatibility

Designed for use in DCMX-style screw-clamp turning toolholders that accept an 11-size insert with an inscribed circle of 0.3752 inches (9.53 mm). ISO code DCMX11T304 and ANSI code DCMX32.51 should be used to confirm toolholder compatibility before installation.

Installation Notes

Insert seating and replacement should be performed by a qualified machinist or CNC tooling technician with the machine powered down and in a safe lockout state. Use the appropriate torque screwdriver for the insert clamping screw to avoid damaging the insert pocket or screw thread. Inspect the insert seat and clamping screw for wear or debris before installing a new insert. Never force an insert into a pocket that does not match the insert's ISO or ANSI form factor code.
