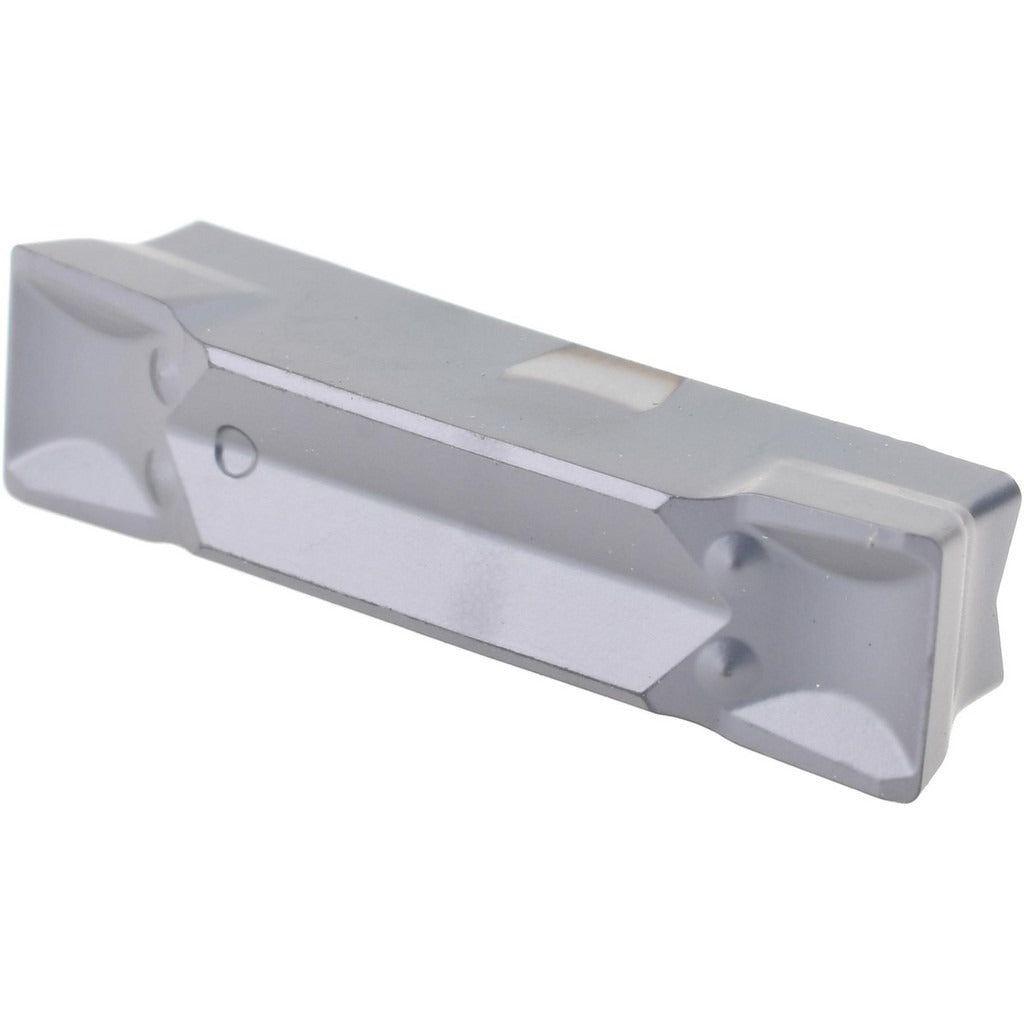

Accupro 75241042 Grooving Insert Gd Size 24 ACP30M

Product Description

The ACCUPRO 75241042 is a GD-style grooving insert designed for external grooving and parting operations on CNC lathes and turning centers. It carries manufacturer grade ACP30M with a PVD coating, which provides wear resistance and thermal stability in interrupted and continuous cuts. The cutting width measures 0.2362 inches (6.000 mm) and the corner radius is 0.0157 inches (0.40 mm). The positive rake geometry reduces cutting forces and aids chip evacuation. This insert is intended for machinists and toolroom professionals working in production or maintenance turning environments.

The 75241042 suits external grooving, necking, and light parting applications on steel, stainless, and similar workpiece materials where a 6.000 mm groove width is required. It fits CI-series toolholders and is compatible with clamp, screw, and self-grip insert holding methods, giving it versatility across multiple holder configurations. It is a multi-use insert suitable for both roughing and finishing passes within its rated grade. Sold individually, with a minimum order quantity of 10 pieces.

Key Features

• GD insert style with 0.2362 inch (6.000 mm) cutting width for consistent groove sizing
• ACP30M manufacturer grade with PVD coating for extended tool life in steel and stainless applications
• Positive rake geometry reduces cutting forces and improves chip flow
• GPP chip breaker controls chip formation across a range of feed rates and depths
• Compatible with clamp, screw, and self-grip holding methods for broad toolholder compatibility
• CI-series insert; multi-use design suitable for grooving and light parting

Compatibility

Designed for use with CI-series grooving toolholders that accept GD-style inserts with size code 24, using clamp, screw, or self-grip holding methods.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before changing inserts. Seat the insert fully in the pocket and engage the holding method per the toolholder manufacturer torque guidance. Inspect the insert edge and corner radius before resuming cutting to confirm no chipping or seating irregularity is present.
