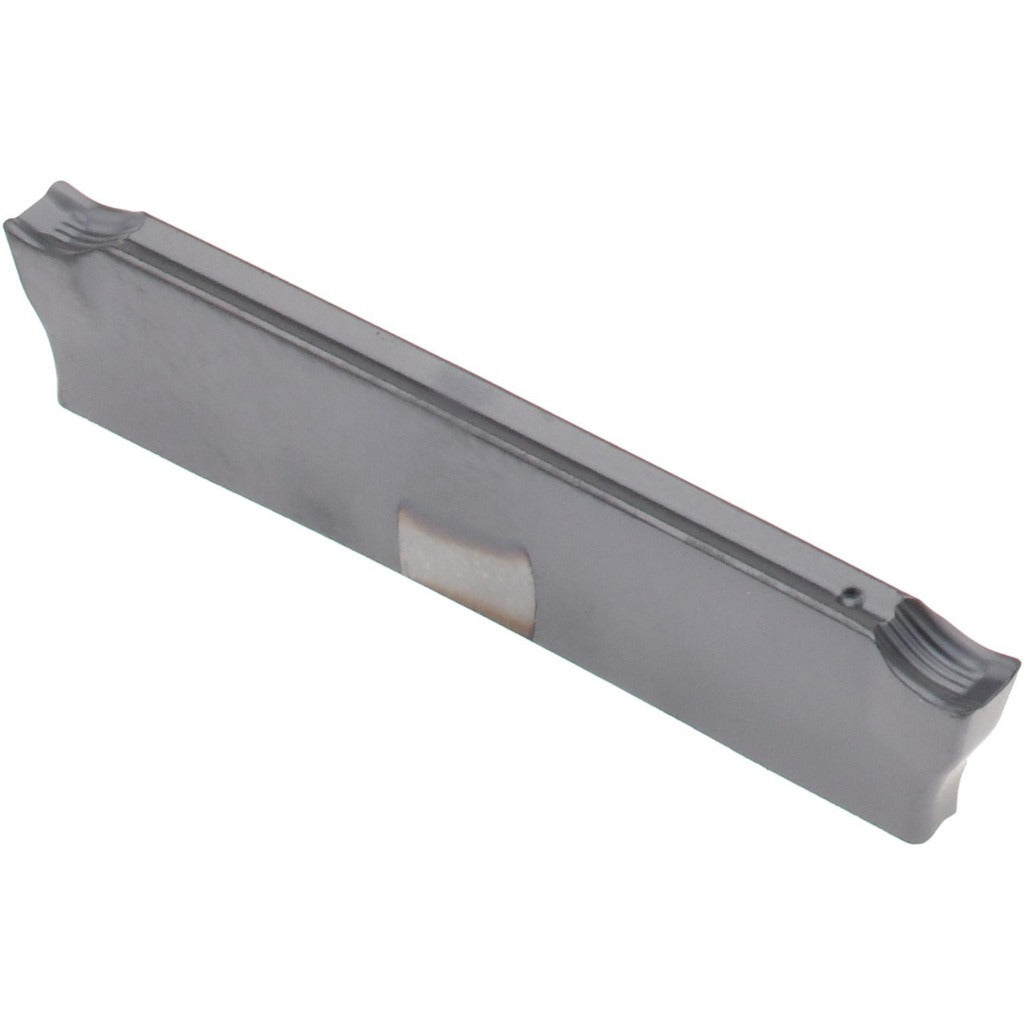

Accupro 75240911 Grooving Insert Gd Style ACP30M Grade

Product Description

The ACCUPRO 75240911 is a indexable grooving insert designed for precision grooving operations on CNC lathes and turning centers. Built to the GD insert style in size code 24, it features a cutting width of 0.0787 inches (2.000 mm) and a corner radius of 0.0079 inches (0.20 mm). The insert carries ACCUPRO grade ACP30M with a PVD coating and a positive rake geometry, supporting clean chip formation through the GUP chip breaker. Machinists and toolroom operators use this insert as a direct replacement in compatible CI-series grooving toolholders.

This insert is suited for external and internal grooving applications in production turning environments, including both light-duty and general-purpose grooving on a range of workpiece materials. The positive rake and PVD-coated ACP30M grade make it appropriate for steel, stainless, and similar materials where controlled chip evacuation is critical. The multi-use designation means the insert can be used across compatible grooving, parting, and turn-grooving applications where the GD style is specified.

Key Features

• GD insert style, size code 24, for use in CI-series grooving systems
• Cutting width of 0.0787 inches (2.000 mm) for precise groove sizing
• Corner radius of 0.0079 inches (0.20 mm) for controlled root geometry
• ACP30M grade with PVD coating for wear resistance and edge stability
• Positive rake angle with GUP chip breaker promotes effective chip control
• Compatible with clamp, screw, and self-grip insert holding methods
• Multi-use rated for grooving and related turning operations

Compatibility

Designed as an OEM-style replacement insert for CI-series grooving toolholders accepting GD-style inserts at size code 24.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machine spindle before seating or indexing any insert. Ensure the toolholder pocket is clean and free of chips before clamping. Follow the toolholder manufacturer's clamping torque guidance and verify insert seating before resuming cuts.
