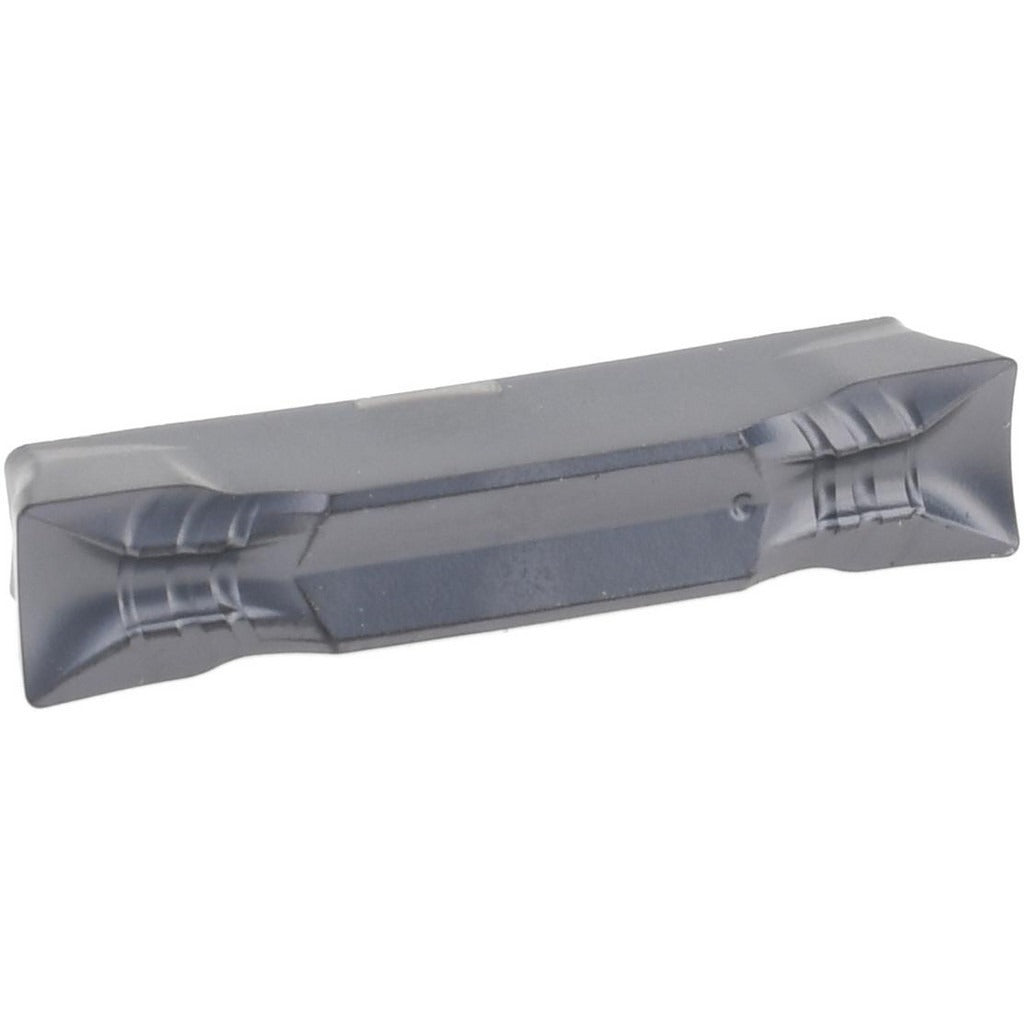

Accupro 75233932 Grooving Insert Ci Style ACP30M Grade

Product Description

The ACCUPRO 75233932 is a CI-style grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. It carries a cutting width of 0.1969 inches (5.000 mm) and a corner radius of 0.0157 inches (0.40 mm). Manufactured to the ACP30M grade with a PVD coating, it is engineered for consistent tool life and dimensional accuracy in production turning environments. The positive rake geometry reduces cutting forces and improves chip flow, making it well suited for machining a range of workpiece materials at controlled depths of cut. Machinists and CNC operators install and index these inserts as part of routine tooling maintenance.

This insert fits grooving toolholders designed for the CI insert series. With an insert size code of 24 and a GUT chip breaker configuration, it is suited for groove profiling and parting operations on small-to-medium diameter workpieces in both job shop and production environments. The multi-use tool designation indicates compatibility with toolholder systems that accept CI-series inserts for both grooving and related turning applications. Sold individually, with a minimum order quantity of 10 pieces.

Key Features

• Cutting width of 0.1969 inches (5.000 mm) for precise groove dimensions
• ACP30M manufacturer grade with PVD coating for extended wear resistance
• Positive rake geometry reduces cutting forces and promotes efficient chip evacuation
• GUT chip breaker design for controlled chip flow in grooving applications
• CI series insert style with size code 24; compatible with clamp, screw, and self-grip holding methods
• Multi-use designation for grooving and related turning operations

Compatibility

Designed as an OEM-style replacement insert for CI-series grooving toolholders that accept size code 24 inserts with clamp, screw, or self-grip holding methods.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or CNC operator with the machine in a full stop and locked-out state per applicable machine safety procedures. Inspect the toolholder pocket and clamping components for wear or debris before seating the new insert. Use the appropriate torx or hex key specified by the toolholder manufacturer when tightening clamp screws; do not overtighten. Confirm seating and runout before resuming cutting operations.
