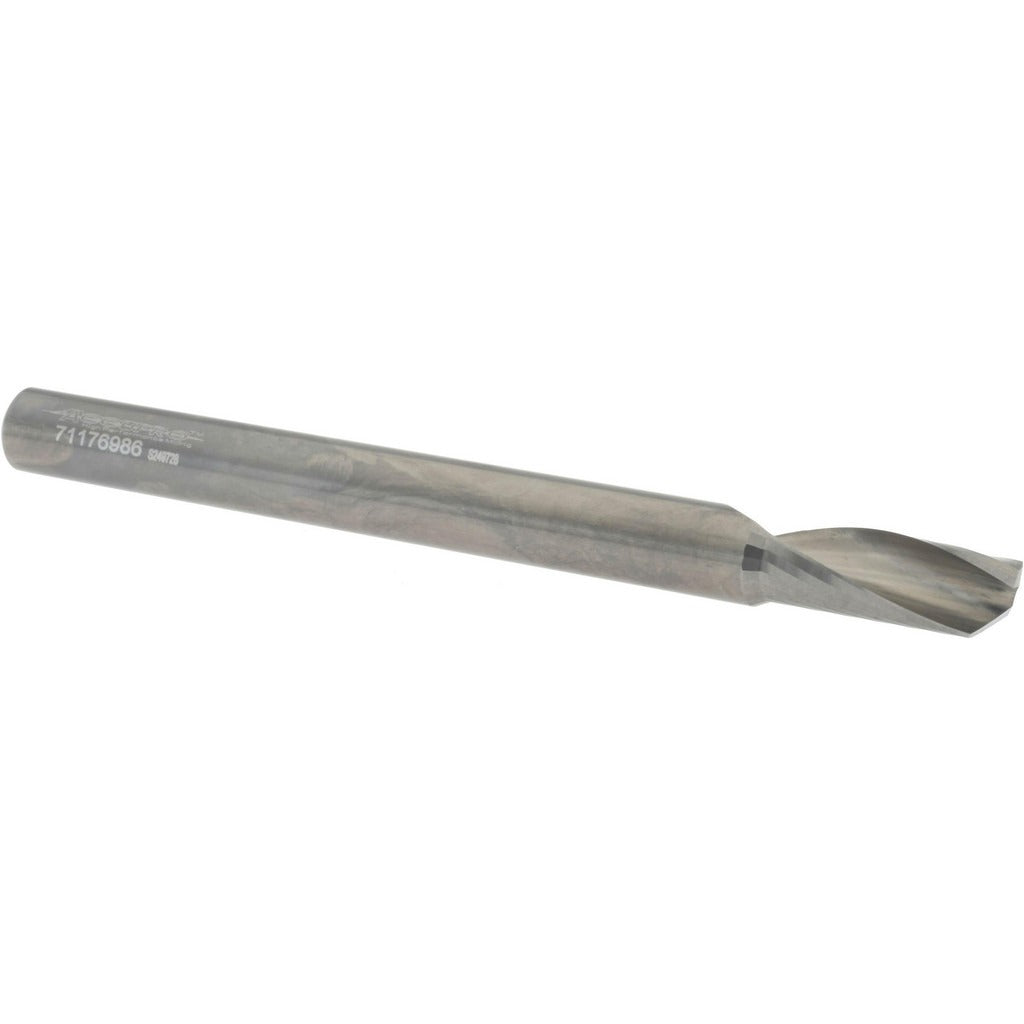

Accupro 71176986 Spiral Upcut Router Bit 10mm Solid Carbide

Product Description

The ACCUPRO 71176986 is a solid carbide spiral upcut router bit engineered for precise material removal in routing applications. With a 10 mm cutter diameter and a 25 mm length of cut, it delivers clean chip evacuation thanks to its upcut flute geometry, which pulls chips up and away from the workpiece. The 22-degree helix angle promotes smooth cutting action while reducing heat buildup at the cutting edge. The bright, uncoated finish maintains a sharp edge profile on compatible materials. At 120 mm overall length with a 10 mm shank diameter, this bit fits standard collets on most router platforms used in production and shop environments. It is installed by machinists, woodworkers, and fabricators working with non-ferrous metals and similar materials.

This bit is optimized for aluminum cutting applications. The single-edge, right-hand cutting geometry combined with the upcut flute style makes it well-suited for CNC router setups where chip clearance is a priority. It performs in both production shop and jobsite routing scenarios where a solid carbide tool is required for material integrity and dimensional accuracy on non-ferrous workpieces.

Key Features

• Solid carbide construction for durability and edge retention in non-ferrous material routing
• Upcut flute geometry evacuates chips away from the cut zone, reducing recutting and heat
• 22-degree helix angle promotes smooth, consistent cutting action
• Single-edge router style for efficient chip load management
• Bright, uncoated finish maintains sharp cutting geometry
• Right-hand cutting direction compatible with standard router spindle rotation

Compatibility

Designed for use in CNC routers and handheld router platforms accepting a 10 mm shank collet, with a primary material application of aluminum.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the router spindle completely before inserting or removing the bit. Seat the shank fully into the collet to the recommended engagement depth and tighten the collet nut to the router manufacturer's specification using the appropriate collet wrenches. Inspect the cutting edges for chips or damage before each use and replace the bit if edge integrity is compromised.
