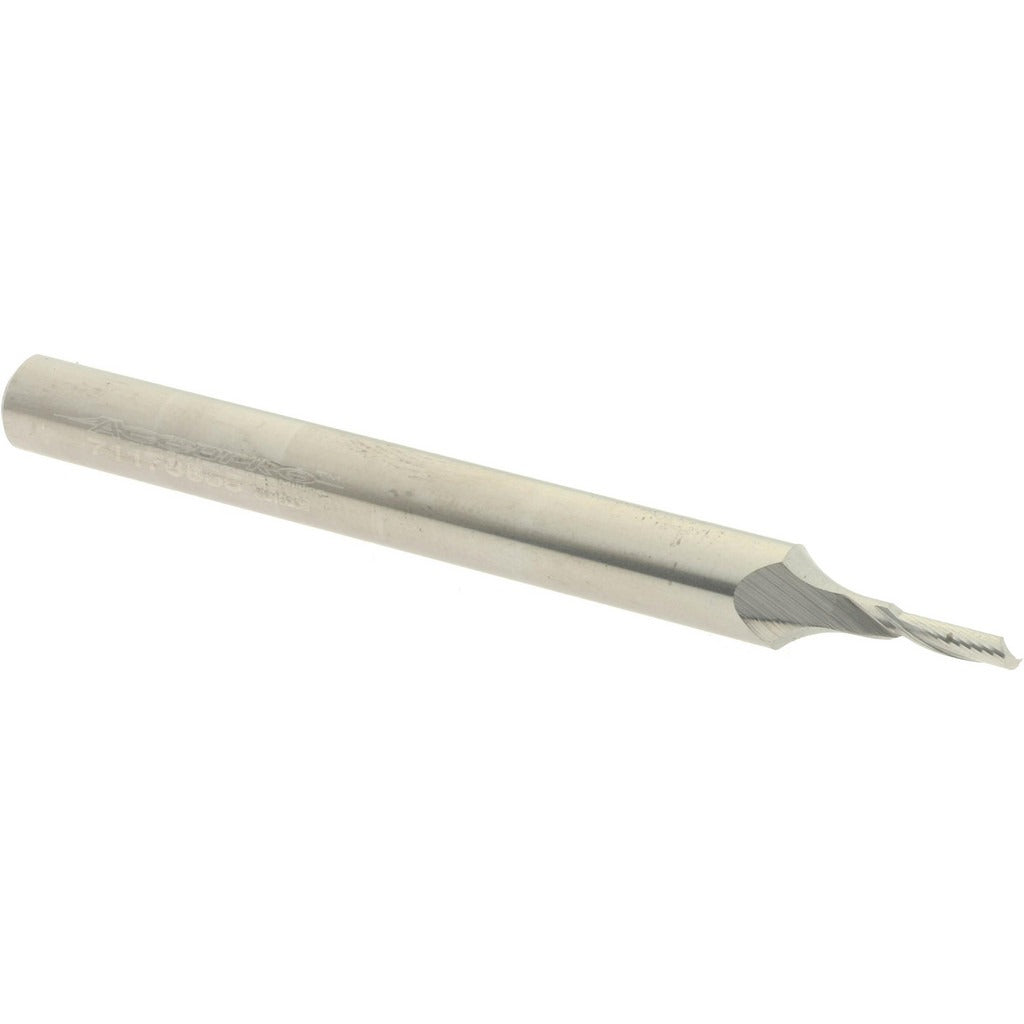

Accupro 71176895 Spiral Upcut Router Bit 2mm Solid Carbide

Product Description

The ACCUPRO 71176895 is a solid carbide spiral upcut router bit designed for precise cutting in aluminum applications. With a 2 mm cutter diameter, a 6 mm length of cut, and a 6 mm shank diameter, this single-edge bit is built for high-accuracy routing where chip evacuation and clean edge quality matter. The upcut flute geometry pulls chips up and away from the workpiece, reducing heat buildup and helping maintain a clean cut path. At 64 mm overall length, it fits standard collet setups and is well suited to CNC routing and handheld router work performed by machinists and fabricators working with aluminum stock.

This bit is engineered specifically for aluminum cutting applications, including aluminum plates, single-sheet aluminum, and multi-sheet aluminum stacking. The 22-degree helix angle and bright uncoated solid carbide construction make it a practical choice for shops running aluminum parts on CNC routers or performing precision trim work. The right-hand cutting direction is standard for conventional router spindle rotation. It is sold individually and is appropriate for production environments requiring consistent, repeatable results in aluminum.

Key Features

• Solid carbide construction for rigidity and long tool life in non-ferrous materials
• Upcut flute geometry evacuates chips efficiently, reducing recutting and heat
• 22-degree helix angle optimized for aluminum cutting performance
• Single-edge design suits applications where fine finish and controlled chip load are priorities
• Bright uncoated finish maintains sharp edge geometry without coating buildup interference
• Right-hand cutting direction compatible with standard router spindle rotation

Compatibility

Rated for use in aluminum plates, single-sheet aluminum, and multi-sheet aluminum. Fits any router or CNC spindle accepting a 6 mm shank collet.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the router or spindle is fully powered down and locked out before inserting or removing the bit. Seat the shank fully into the collet, leaving no less than the minimum recommended engagement depth per the machine manufacturer guidelines. Verify spindle speed and feed rate settings are appropriate for the workpiece material and bit diameter before beginning the cut.
