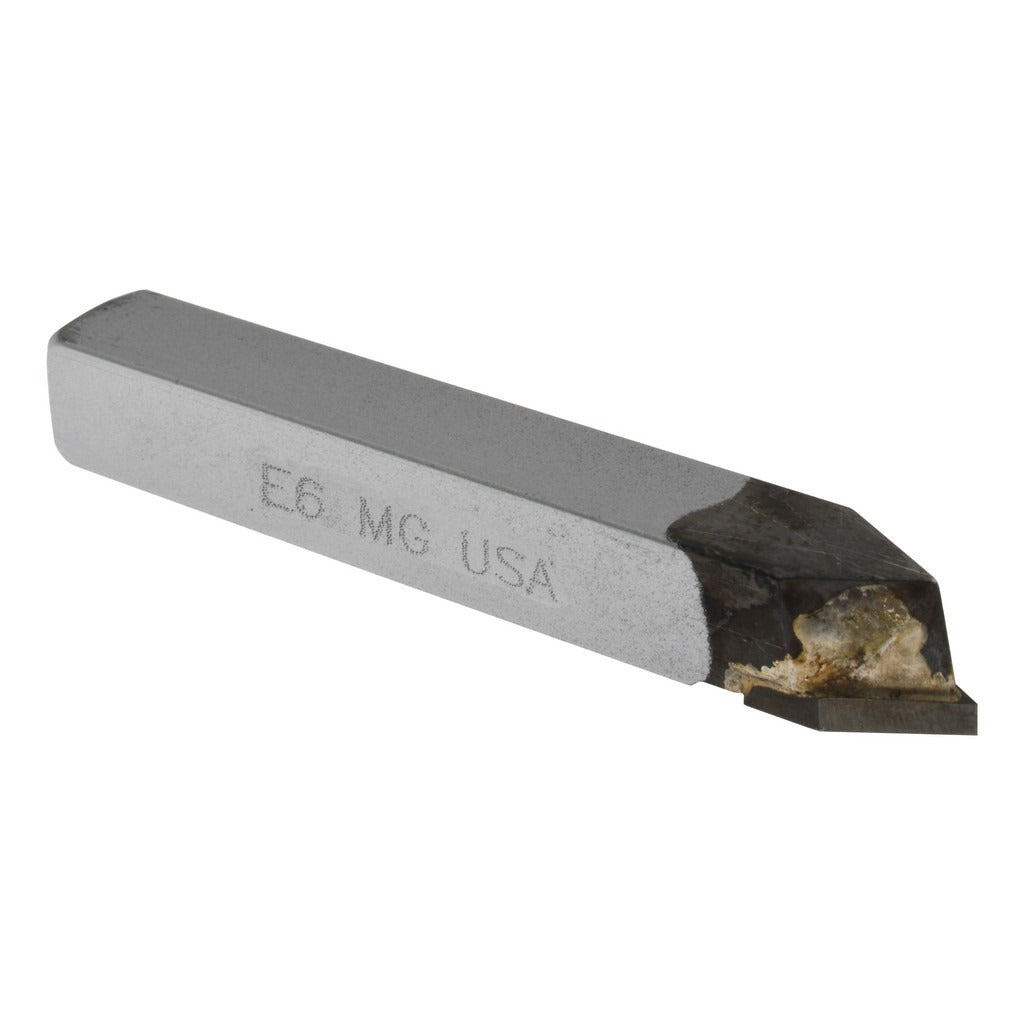

Accupro 610-MG Threading Tool Bit Style E 3/8 Shank

Product Description

The ACCUPRO 610-MG is a single-point solid carbide tool bit designed for threading, chamfering, undercutting, and V-grooving operations on metal lathes and CNC turning centers. Built to Industry Standard Number E-6 with a Style E geometry, it features a 60-degree included angle and a neutral cutting direction. The tip is ground from micrograin solid carbide for edge retention and dimensional consistency across repeated passes. The shank measures 3/8 x 3/8 inches with an overall length of 2.5 inches. Machinists and toolroom operators install this bit in standard tool holders for precision threading and form work on ferrous and non-ferrous materials.

This tool bit suits production and job-shop turning applications where consistent thread form geometry is required. The neutral cutting direction makes it adaptable to both left- and right-hand thread cutting setups depending on holder orientation. At 2.5 inches OAL with a 3/8-inch tip length, it fits standard indexable-style and solid-shank tool holders used on manual engine lathes and CNC turning centers in light to medium-duty metal removal applications.

Key Features

• Style E geometry per Industry Standard Number E-6 for standardized form threading
• Micrograin solid carbide tip for superior edge retention and wear resistance
• 60-degree included angle supports standard unified and metric thread profiles
• Neutral cutting direction for versatile left- or right-hand setup
• Suitable for chamfering, threading, undercutting, and V-grooving in a single tool
• 3/8 x 3/8 inch shank fits common production tool holders without modification

Compatibility

Designed as an OEM-style replacement or production-use single-point tool bit for standard 3/8 x 3/8 inch shank tool holders used in manual and CNC lathe threading applications.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the machine spindle and disengage power before changing tool bits. Seat the shank fully in the tool holder and confirm the tip height is on center before engaging the cut. Follow shop safety procedures and applicable OSHA machine guarding standards when operating turning equipment.
