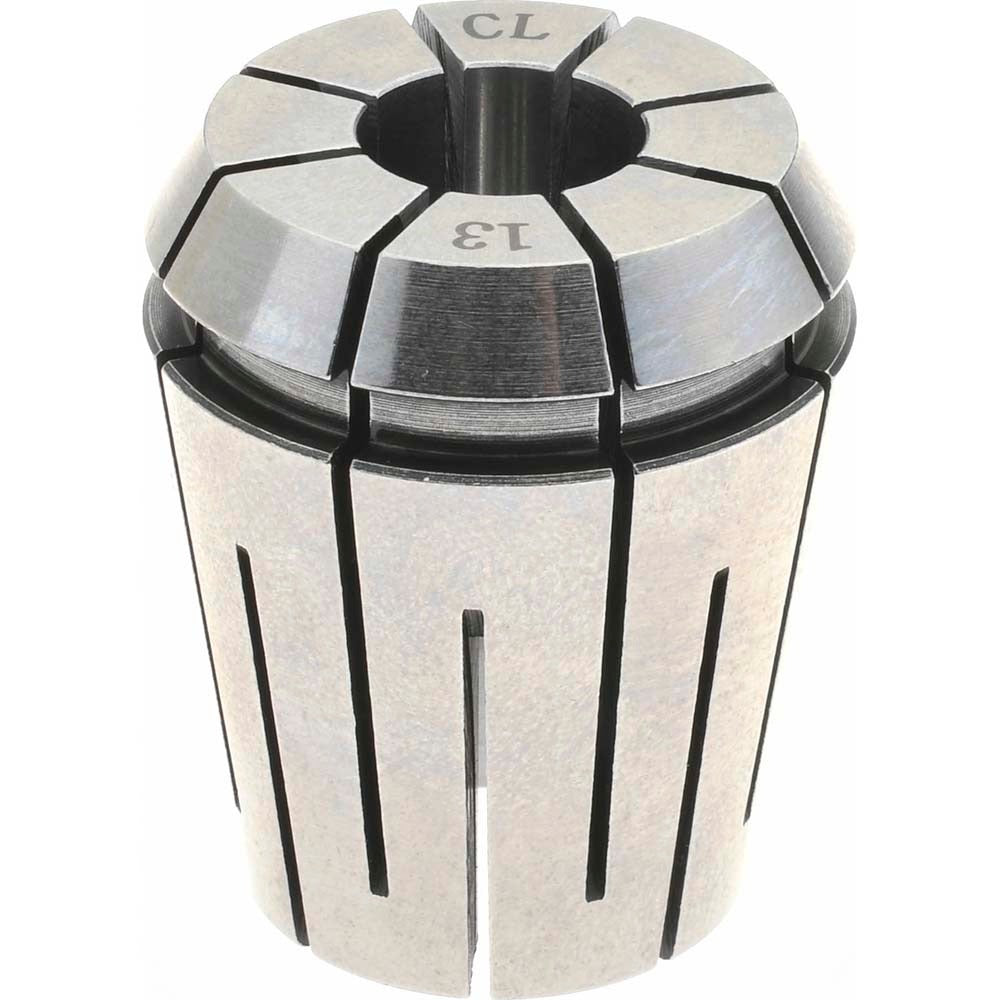

Accupro 588371 ER32 Collet 13 Mm

Product Description

The ACCUPRO 588371 is an ER32 series collet designed to hold 13 mm shank tooling in compatible ER32 collet chucks. ER collets are the industry standard for tool holding in milling, drilling, and tapping operations on CNC machining centers, manual mills, and lathes. The collet compresses radially when the chuck nut is tightened, gripping the tool shank with consistent clamping force. At 0.8 pounds, this collet is a solid, precision-ground component intended for machinists and toolroom technicians working in production or maintenance environments.

This collet is suited for use wherever an ER32 collet chuck is installed. Typical applications include CNC vertical and horizontal machining centers, manual knee mills, and multi-spindle setups running end mills, drills, reamers, or taps with a 13 mm shank diameter. It is a single-collet package, appropriate for tooling setups that require a specific size without purchasing a full collet set.

Key Features

• ER32 collet series for use with standard ER32 collet chucks
• 13 mm collet size for precise tool shank grip
• 1000 pressure rating for secure clamping during machining operations
• Single-piece package quantity for targeted tooling builds
• Compact and lightweight at 0.8 pounds for easy handling and storage

Compatibility

Designed for use with ER32 collet chucks. Fits any spindle or toolholder built to the ER32 collet standard.

Installation Notes

Installation is performed by machinists or toolroom technicians. Before inserting the collet, ensure the chuck body and collet seat are clean and free of chips or debris. Seat the collet into the chuck nut before threading the nut onto the chuck body, then tighten with the appropriate ER32 spanner wrench to the chuck manufacturer's specification. Never use an impact driver or substitute wrench that could damage the collet or chuck threads.
