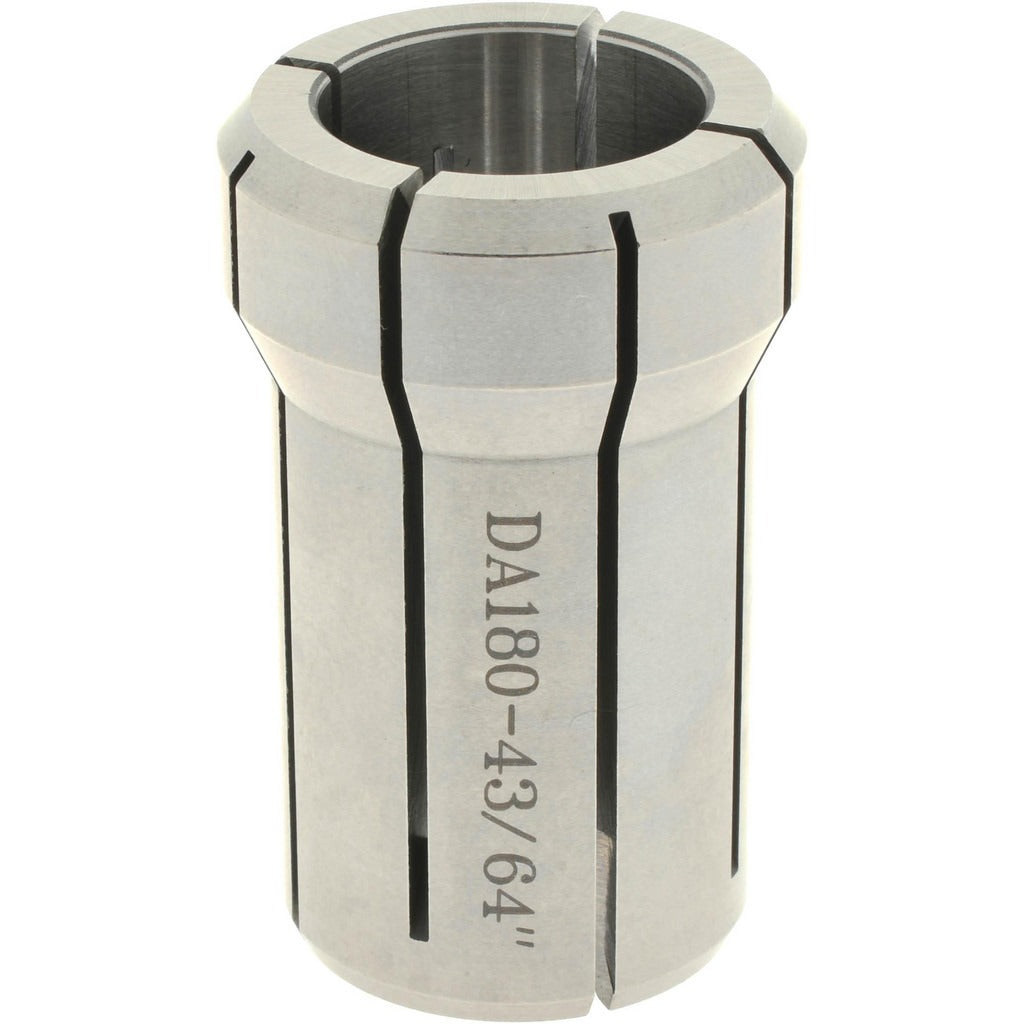

Accupro 586603 DA180 Double Angle Collet 43/64 Inch

Product Description

The ACCUPRO 586603 is a DA180 series double angle collet designed to grip and hold cutting tools or workpiece stock in compatible DA180 collet chucks. The collet accepts a 43/64 inch (0.67190 inches decimal) bore diameter and measures 1.6370 inches overall length with a 1.0350 inch overall diameter. Double angle collets use a dual-taper contact design that provides a secure, concentric grip suited for milling, drilling, and tapping operations. Machinists and toolroom technicians install these collets in CNC machining centers, manual mills, and drill presses equipped with a DA180 collet chuck system.

The ACCUPRO 586603 is suited for production and job-shop environments where consistent tool runout and repeatable grip force matter. The 43/64 inch bore size accommodates a wide range of shank tooling at that diameter. It is a standard replacement or additional collet for any shop running DA180 chuck tooling, and it ships individually with a package quantity of one.

Key Features

• DA180 collet series with dual-taper contact geometry for concentric tool holding
• 43/64 inch (0.67190 inches) bore accepts standard round-shank tooling at that diameter
• 1.6370 inch overall length for compatibility with DA180 chuck depth requirements
• 1.0350 inch overall diameter sized to DA180 chuck taper specifications
• Sold individually - package quantity of one

Compatibility

Designed for use with DA180 series collet chucks. Verify that the host chuck is rated for the DA180 collet series before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before installing or removing the collet, confirm the machine spindle is fully stopped, locked out, and de-energized per applicable lockout/tagout procedures. Use the correct DA180 spanner wrench or collet nut tool to seat and torque the collet nut - do not use pipe wrenches or improvised tools that can damage the taper or nut. Inspect the collet bore and chuck taper for chips, burrs, or wear before assembly to ensure proper seating and runout performance.
