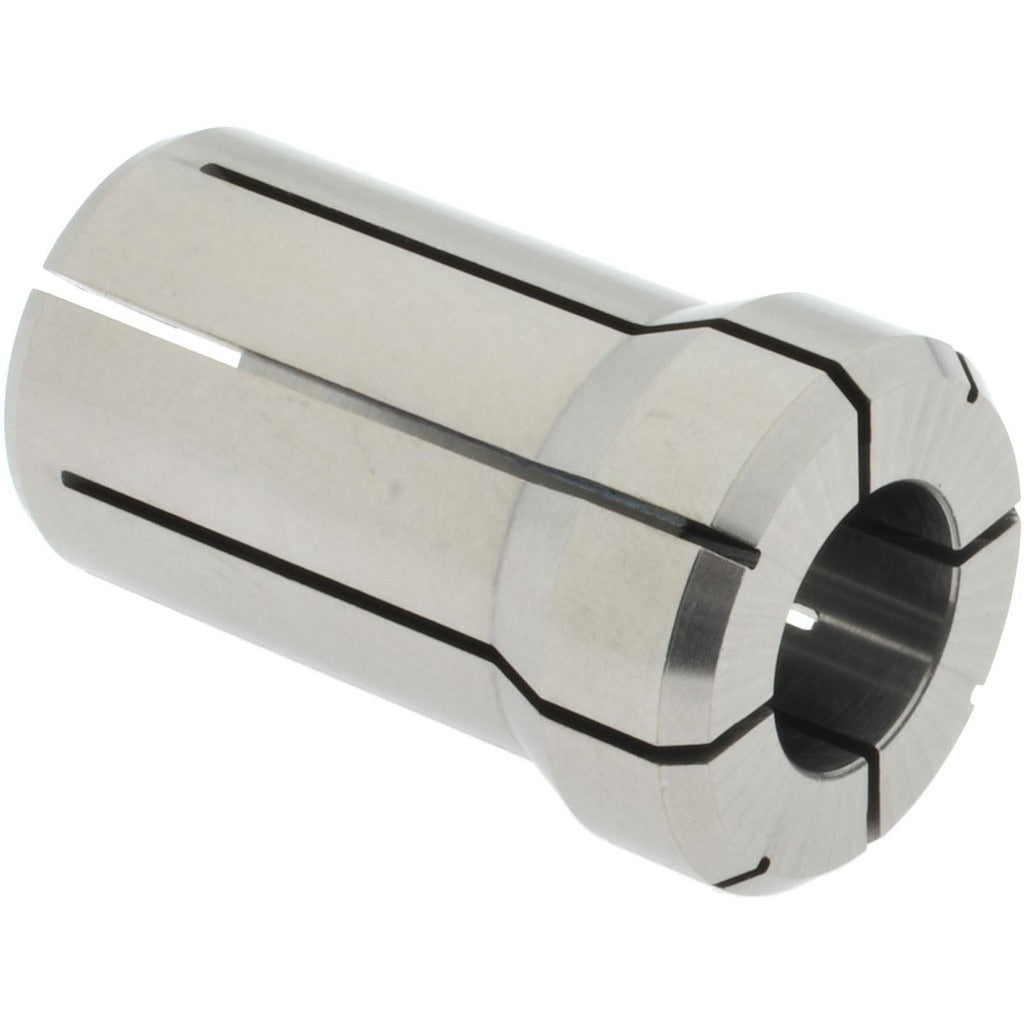

Accupro 586587 DA180 Double Angle Collet 17/32 Inch

Product Description

The ACCUPRO 586587 is a DA180 series double angle collet designed for use in milling and machining operations requiring precise tool holding. Built to the DA180 collet standard, this collet accepts a 17/32 inch (0.5313 inches decimal) shank diameter and has an overall length of 1.637 inches with an overall diameter of 1.035 inches. Double angle collets provide two-surface gripping contact, improving concentricity and reducing tool runout compared to single-angle designs. Machinists and CNC operators install this collet into compatible DA180-pattern collet chucks as part of standard tool change procedures.

This collet is suited for use in vertical and horizontal machining centers, knee mills, and CNC milling applications where the DA180 collet system is the specified toolholding standard. It is appropriate for both production and job-shop environments. The 17/32 inch bore size makes it a practical choice when working with tooling ground to that shank diameter. Installation requires a compatible DA180 collet chuck and appropriate torque wrench or spanner per machine and chuck manufacturer specifications.

Key Features

• DA180 series double angle collet for improved gripping and concentricity
• Accepts 17/32 inch (0.5313 inches decimal) tool shank diameter
• Overall length of 1.637 inches for consistent tool projection
• Overall diameter of 1.035 inches for DA180 chuck compatibility
• Sold individually — one collet per package

Compatibility

Designed for use with DA180-pattern collet chucks. Verify chuck series and bore size requirements before installation. No specific machine model compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Installation is performed by qualified machinists or CNC tool setters familiar with collet chuck systems. Power down and lock out the machine spindle before changing collets. Insert the collet into the DA180 chuck body before threading on the collet nut, and torque the nut using the chuck manufacturer's recommended spanner. Inspect the collet bore and seating surfaces for chips or wear before each use to maintain runout tolerances.
