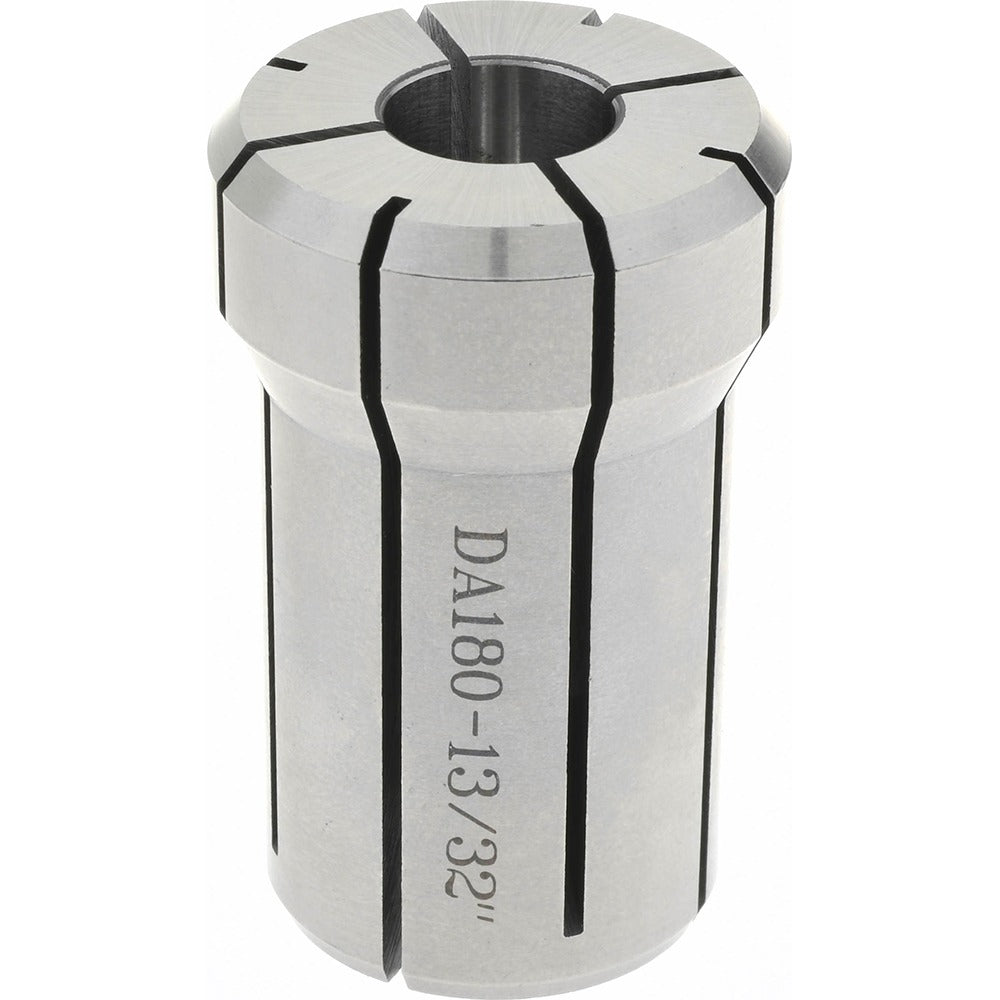

Accupro 586571 DA180 Double Angle Collet 13/32 Inch

Product Description

The ACCUPRO 586571 is a DA180 series double angle collet designed for use in milling and drilling operations that require precise tool holding. The collet accepts a 13/32 inch (0.40625 inches) tool shank and measures 1.637 inches in overall length with an overall diameter of 1.035 inches. Double angle collets provide two-point clamping contact for improved concentricity and grip strength compared to standard single-angle designs. This collet is installed by machinists and toolroom technicians in CNC machining centers, manual mills, and dedicated collet chuck systems that accept the DA180 collet series.

The ACCUPRO 586571 is suited for production and job-shop environments where consistent tool runout and secure clamping are required. It is commonly used in vertical machining centers and milling machines equipped with DA180-compatible collet chucks. The 13/32 inch bore size makes it a practical choice for end mills, drills, and reamers of that shank diameter. Sold individually, this collet fits within standard DA180 collet chuck systems used across light to medium-duty metal and non-metal cutting applications.

Key Features

• DA180 double angle collet series for two-point clamping and improved concentricity
• 13/32 inch (0.40625 inches) bore size accommodates standard shank tooling
• Overall length of 1.637 inches for proper seating in DA180 collet chucks
• Overall diameter of 1.035 inches for correct chuck fit
• Compact weight of 0.5 pounds for easy handling and tool changes

Compatibility

Designed as an OEM-style replacement or direct-fit collet for machine tools equipped with DA180 series collet chucks accepting 13/32 inch tooling shanks.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Ensure the spindle is fully powered down and the machine is locked out before changing collets. Clean the collet and chuck bore thoroughly before seating the collet to prevent runout caused by chips or debris. Do not exceed the maximum clamping torque recommended by the collet chuck manufacturer for the DA180 series.
