Accupro 586563 DA180 Double Angle Collet 11/32 Inch

Product Description

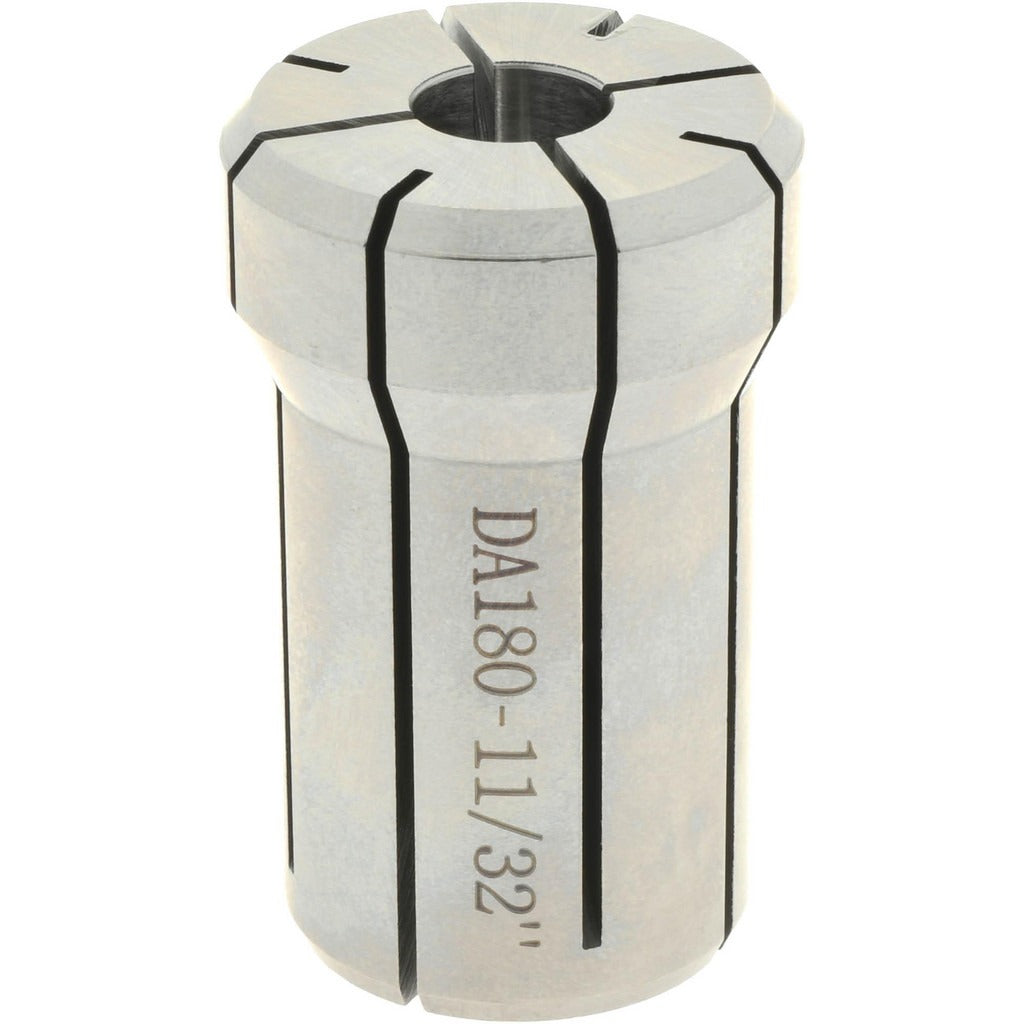

The ACCUPRO 586563 is a DA180 series double angle collet designed for use in CNC machining centers, milling machines, and toolholding systems that accept DA180-style collet chucks. It holds a 11/32-inch (0.34375-inch) tool shank and features an overall length of 1.637 inches and an overall diameter of 1.035 inches. Double angle collets provide a secure, concentric grip on cutting tools and workholding shanks, reducing runout and improving tool life. Machinists and CNC operators install this collet as part of a DA180 collet chuck assembly on production and job shop equipment.

This collet is suited for light to medium-duty milling, drilling, and reaming operations where consistent tool runout and repeatable clamping force are required. The DA180 collet series is a widely used standard in production machining environments, compatible with DA180 collet chucks and matching tool holders. It is installed by machinists and CNC technicians in both horizontal and vertical machining center setups.

Key Features

• DA180 double angle collet design for secure, concentric tool clamping
• 11/32-inch shank capacity (0.34375 inches decimal equivalent)
• Overall length of 1.637 inches for standard DA180 chuck fitment
• Overall diameter of 1.035 inches
• Sold individually, minimum order quantity of 1

Compatibility

Designed as a direct-fit replacement or spare for DA180 series collet chucks that accept 11/32-inch shank tooling.

Installation Notes

Installation is performed by a qualified machinist or CNC technician. Ensure the spindle is fully stopped and the machine is locked out before changing collets. Clean the collet chuck bore and collet taper surfaces before seating the collet to prevent runout caused by debris. Use the appropriate DA180 collet wrench and nut when tightening to avoid distorting the collet body.
