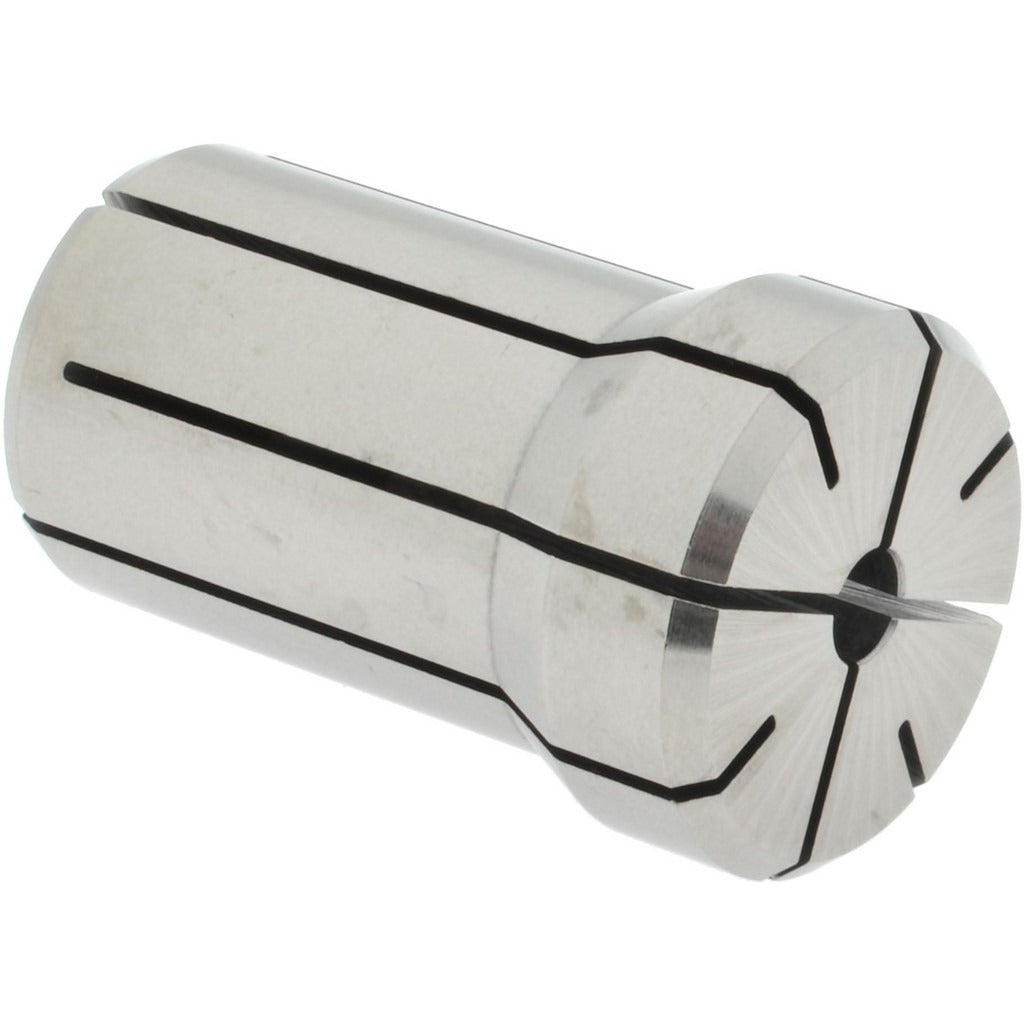

Accupro 586545 DA180 Double Angle Collet 13/64 Inch

Product Description

The ACCUPRO 586545 is a DA180 series double angle collet designed for use in CNC machining centers, milling machines, and high-speed drilling applications. It accepts a 13/64 inch (0.20310 inch) tool shank and features an overall length of 1.637 inches with an overall diameter of 1.035 inches. Double angle collets provide two contact points along the collet body, improving grip and concentricity compared to single angle designs. Machinists and CNC operators install this collet into compatible DA180 collet chucks or tool holders to secure cutting tools during milling, drilling, and reaming operations. At 0.5 pounds, it is a lightweight, precision-ground component built for repeatable tool holding.

This collet is suited for production machining environments where consistent tool runout and secure clamping are critical. The DA180 series is common in both job shop and high-volume manufacturing settings. It is installed in compatible DA180-style collet chucks mounted to machining center spindles. The 13/64 inch bore size accommodates standard fractional and near-fractional shank cutting tools used in metal, composite, and plastic machining applications.

Key Features

• DA180 collet series for use with compatible DA180 collet chucks and tool holders
• 13/64 inch (0.20310 inch) bore diameter for secure fractional shank tool holding
• Overall length of 1.637 inches for consistent tool projection and setup repeatability
• Overall diameter of 1.035 inches for proper seating in DA180 chuck bodies
• Double angle contact design improves grip and concentricity over single angle collets
• Lightweight at 0.5 pounds for easy handling during tool changes

Compatibility

Designed for use with DA180 series collet chucks and tool holders that accept the DA180 collet profile. Confirm chuck series and bore size requirements before installation.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the machine spindle before inserting or removing collets. Inspect the collet bore and chuck taper for chips, debris, or damage prior to assembly. Do not exceed the tool holder manufacturer's recommended clamping torque specifications for the chuck nut.
