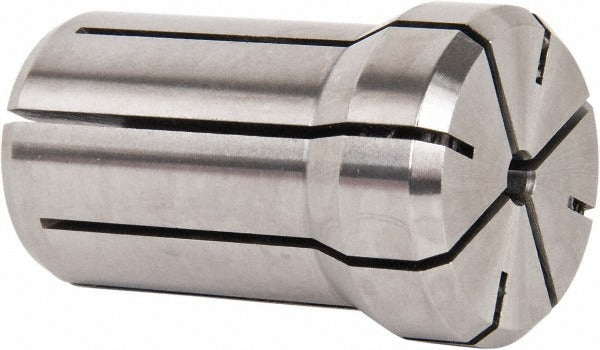

Accupro 586537 DA180 Double Angle Collet 9/64 in

Product Description

The ACCUPRO 586537 is a DA180 series double angle collet designed for use in DA-style collet chucks on milling machines, machining centers, and CNC toolholding systems. With a 9/64 inch (0.14060 inch decimal) bore size and an overall length of 1.637 inches, this collet provides secure, concentric clamping of cutting tools and round-shank workholding components. The outer diameter measures 1.035 inches, consistent with the DA180 collet form factor. Installation is performed by machinists and toolroom technicians as part of routine toolholding setup and changeover operations.

This collet is suited for light to medium-duty cutting applications where the DA180 collet system is already in use. It is a direct fit for DA180-compatible collet chucks found on vertical machining centers, knee mills, and similar spindle configurations. The 9/64 inch bore accommodates tools and stock of that specific shank diameter, making it a practical addition to a standard collet set for shops running fractional inch tooling.

Key Features

• DA180 collet series for use with DA180-compatible collet chucks
• 9/64 inch bore size (0.14060 inch decimal) for fractional inch tooling
• Overall length of 1.637 inches for consistent projection and runout control
• 1.035 inch outer diameter conforming to DA180 collet body dimensions
• Double angle design provides positive clamping engagement at both contact surfaces
• Packaged individually, sold as a single collet

Compatibility

Designed for use with DA180-series collet chucks that accept the DA180 collet form factor. Confirm chuck series and bore size compatibility before installation.

Installation Notes

Collet installation and removal should be performed by a qualified machinist using the appropriate collet wrench and chuck nut for the DA180 system. Ensure the spindle is fully stopped and the machine is powered down before changing collets. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating the collet. Do not overtighten the collet nut beyond the chuck manufacturer's recommended procedure.
