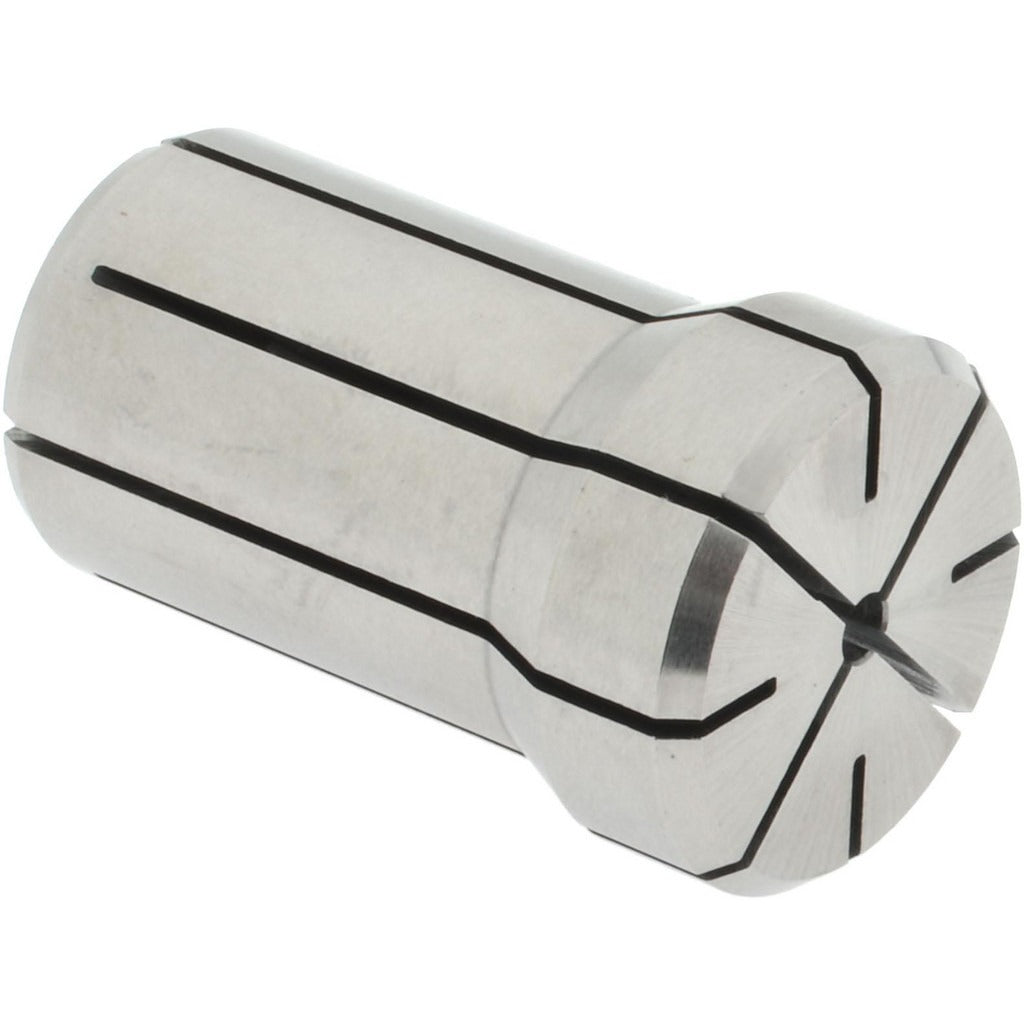

Accupro 586535 DA180 Double Angle Collet 1/8 Inch

Product Description

The ACCUPRO 586535 is a DA180 series double angle collet designed to securely hold round-shank cutting tools and workpieces in compatible milling machine spindles and collet chucks. Sized at 1/8 inch (0.1250 inch decimal), it features an overall length of 1.637 inches and an overall diameter of 1.035 inches. The double angle collet design provides consistent clamping force and accurate tool runout, making it a dependable choice for precision machining operations. Machinists and toolroom technicians install this collet as part of a DA180 toolholding system on vertical mills, CNC machining centers, and manual knee mills.

This collet is suited for light-duty to medium-duty cutting tool applications requiring tight concentricity and repeatable seating. The 1/8 inch bore accommodates small-diameter end mills, drill bits, and rotary burrs commonly used in die work, engraving, and detail milling. It is sold individually and is compatible with DA180 collet chucks and associated drawbar hardware on standard machine tool spindles.

Key Features

• DA180 collet series for use with DA180 collet chucks
• 1/8 inch bore diameter (0.1250 inch decimal) for small-diameter tooling
• Overall length of 1.637 inches for proper spindle engagement
• Overall diameter of 1.035 inches for consistent chuck fit
• Double angle design promotes even clamping load and low runout
• Sold as a single unit with a minimum order quantity of one

Compatibility

Designed as a direct-fit collet for DA180 series collet chucks. Compatible with machine tool spindles and toolholding systems configured for the DA180 collet standard.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and de-energize the machine tool before changing collets. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating the collet; debris in the taper will affect runout and clamping accuracy. Tighten the drawbar or chuck nut to the machine tool manufacturer's specification using the appropriate spanner wrench - do not use impact tools on collet drawbars.
