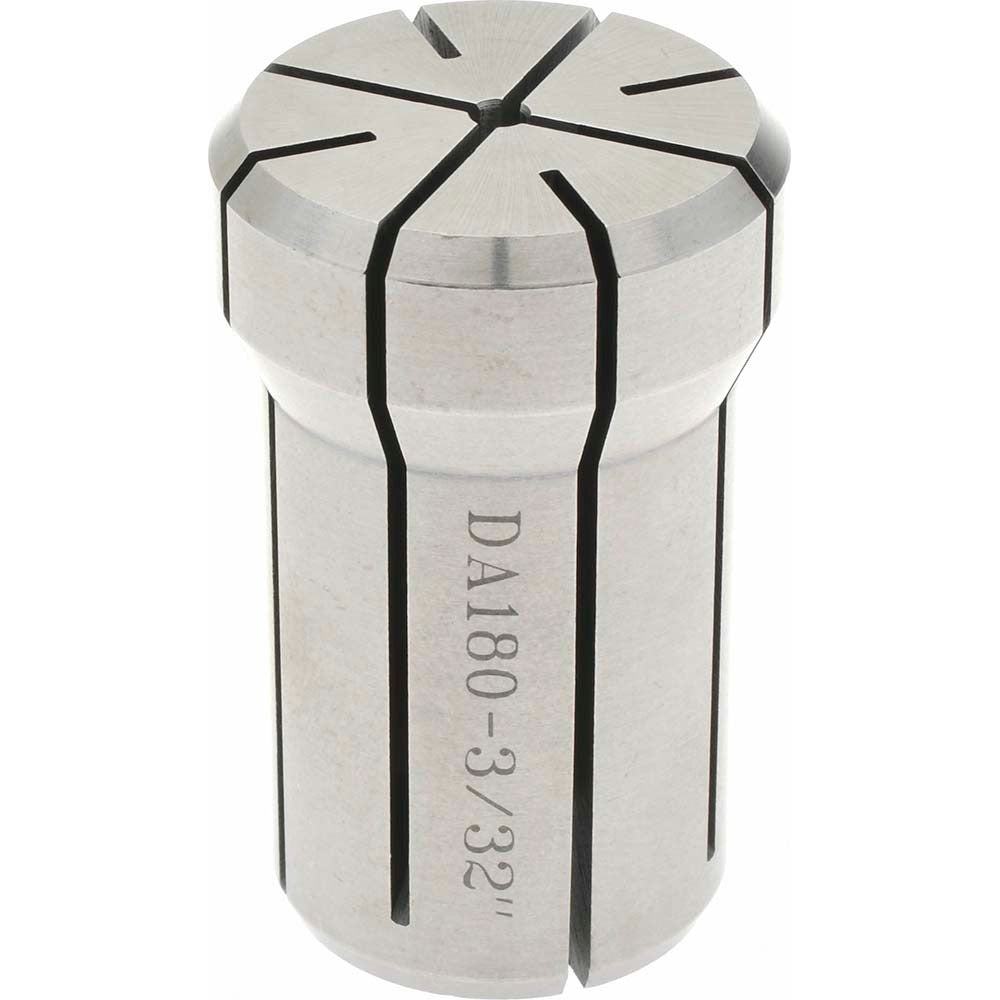

Accupro 586529 DA180 Double Angle Collet 3/32 Inch

Product Description

The ACCUPRO 586529 is a DA180 series double angle collet designed to hold cutting tools and workpieces in milling, drilling, and routing applications. The collet measures 3/32 inch (0.0938 inch decimal) in bore size, with an overall length of 1.637 inches and an overall diameter of 1.035 inches. Double angle collets provide dual-contact clamping geometry for improved gripping force and concentricity compared to single-angle designs. This collet is installed by machinists and tool-room technicians in CNC and manual spindle setups that accept the DA180 collet system.

The ACCUPRO 586529 is suited for use in DA180-compatible collet chucks found in vertical milling machines, CNC machining centers, and router spindles. It is sized for small-diameter tooling at 3/32 inch, making it appropriate for engraving bits, small end mills, and similar cutting tools where precision runout control is critical. This collet is sold individually and is appropriate for both production and tool-room environments.

Key Features

• DA180 collet series for use with DA180-type collet chucks
• 3/32 inch bore diameter (0.0938 inch decimal) for small-diameter tooling
• Overall length of 1.637 inches for standard DA180 chuck depth compatibility
• Overall diameter of 1.035 inches
• Double angle design provides dual-contact grip for improved concentricity and holding force

Compatibility

Designed as an OEM-style replacement or direct-fit collet for spindles and collet chucks built to the DA180 collet standard.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and lock out the spindle drive before inserting or removing a collet. Inspect the collet bore and chuck taper for chips or burrs before seating, and torque the drawbar or collet nut to the chuck manufacturer specification. Do not use damaged or worn collets, as runout and tool pull-out risk increase significantly.
