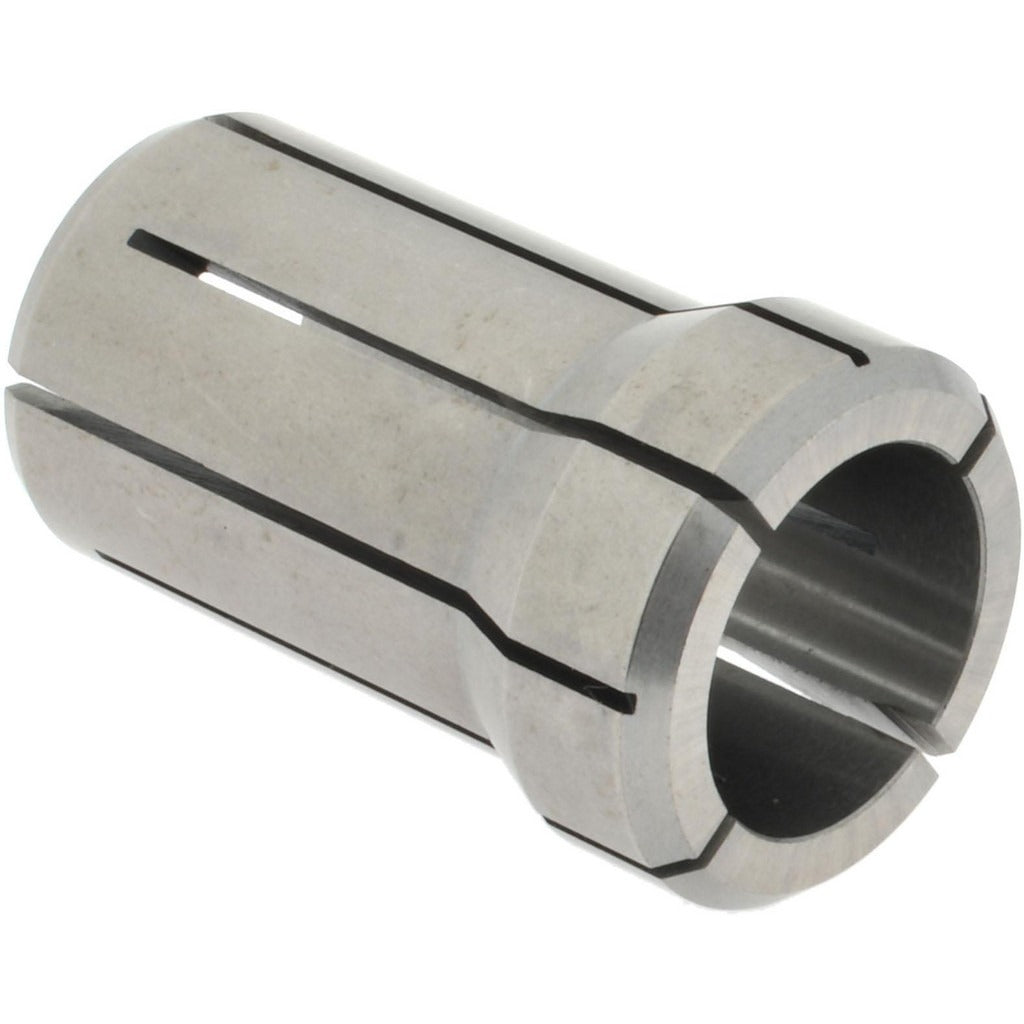

Accupro 586344 DA180 Double Angle Collet 23/32 Inch

Product Description

The ACCUPRO 586344 is a DA180 series double angle collet designed for use in machine tool spindles and CNC milling applications. It accepts a 23/32 inch (0.71880 inch) tool shank and provides the dual-angle clamping geometry that DA-style collets are known for, delivering consistent grip and reduced runout during high-speed cutting operations. With an overall length of 1.637 inches and an overall diameter of 1.035 inches, this collet is a standard replacement or additional unit for shops running DA180-compatible toolholders. Machinists and CNC operators install this collet as part of routine tooling setups and changeovers.

The ACCUPRO 586344 is suited for use in production machining environments where DA180 collet systems are already in place. Typical applications include end mill holding, drill holding, and general-purpose rotating tool clamping on vertical mills, CNC machining centers, and manual knee mills equipped with DA180-style collet chucks. This collet is a single-piece unit sold individually.

Key Features

• DA180 collet series for use with DA180-compatible collet chucks
• 23/32 inch bore size (0.71880 inch decimal equivalent) for precise shank fit
• Overall length of 1.637 inches for standard DA180 stack height
• Overall diameter of 1.035 inches
• Double angle clamping geometry provides consistent grip and low runout
• Sold as a single unit for individual tooling inventory replenishment

Compatibility

Designed for use with DA180-compatible collet chucks and toolholders. Verify that your toolholder is rated for the DA180 collet series before installation.

Installation Notes

Installation is performed by machinists or toolroom personnel during machine setup or tooling changeover. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before handling collets or collet chucks. Clean the collet bore and chuck taper of any chips or coolant residue before seating the collet to ensure accurate clamping. Do not exceed the torque or RPM ratings specified by the collet chuck manufacturer.
