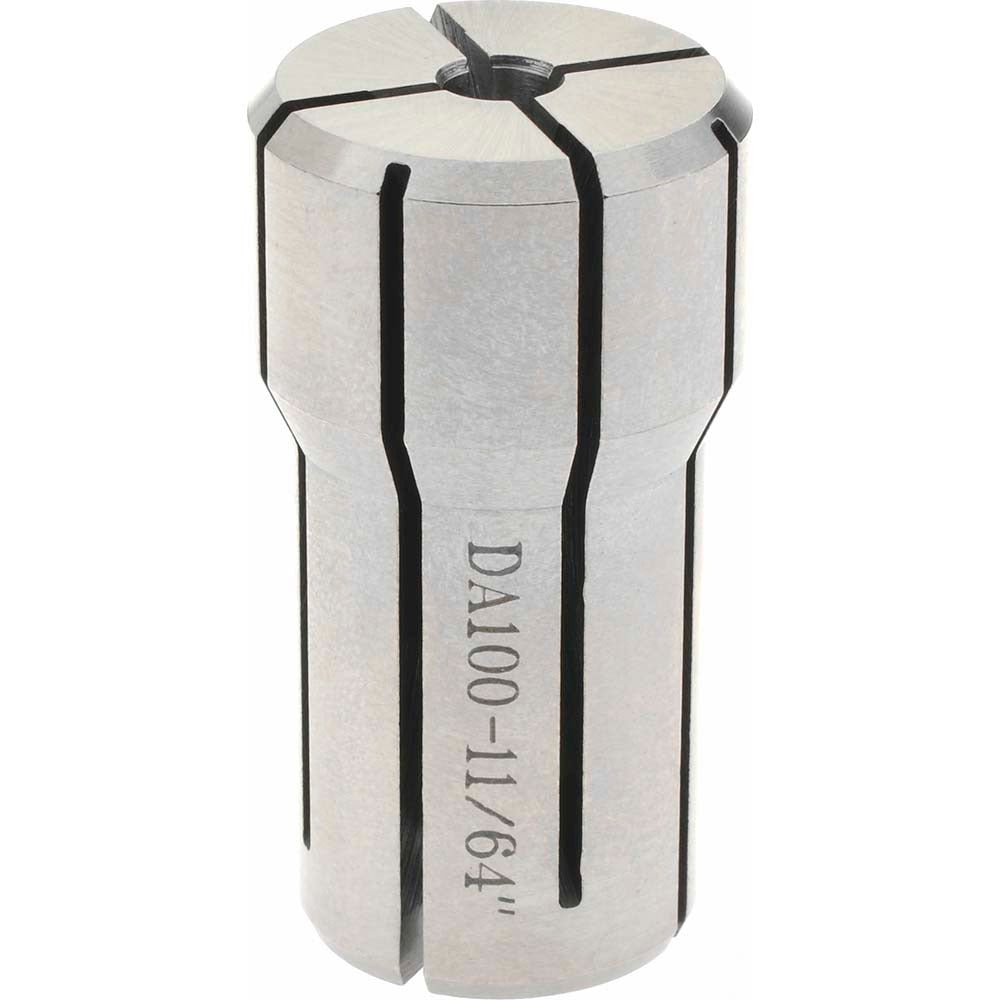

Accupro 586341 DA100 Double Angle Collet 11/64 Inch

Product Description

The ACCUPRO 586341 is a double angle collet designed for use with DA100 collet chucks in CNC machining and manual milling applications. It accepts a 0.1719-inch (11/64-inch) tool shank and provides the clamping force and concentricity required for end mills, drills, and other rotary cutting tools. With an overall length of 1.441 inches and an overall diameter of 0.769 inches, this collet fits within the DA100 series dimensional envelope. Machinists and toolroom technicians install this collet as part of a toolholding setup on vertical mills, CNC machining centers, and similar equipment.

This collet is suited for light-duty to general-purpose machining operations where a DA100 series chuck is already in use. It is appropriate for both production shop environments and job shop toolrooms. The 11/64-inch bore size accommodates standard shank tooling at that diameter, making it a direct fitment for applications where that specific size is required in a DA100 chuck system.

Key Features

• DA100 collet series for use with compatible DA100 collet chucks
• 11/64-inch (0.1719-inch) bore accepts standard shank cutting tools
• Overall length of 1.441 inches fits within DA100 series chuck depth requirements
• Overall diameter of 0.769 inches consistent with DA100 series envelope
• Double angle design provides secure clamping and concentricity for rotary tooling

Compatibility

Designed for use with DA100 series collet chucks accepting 11/64-inch shank tooling.

Installation Notes

Installation is performed by a machinist or toolroom technician. The spindle or collet chuck must be fully de-energized and the machine brought to a complete stop before changing collets. Use the appropriate collet wrench and chuck nut for the DA100 series to seat the collet properly. Do not exceed the chuck manufacturer's rated speed or clamping torque specifications for the DA100 series.
