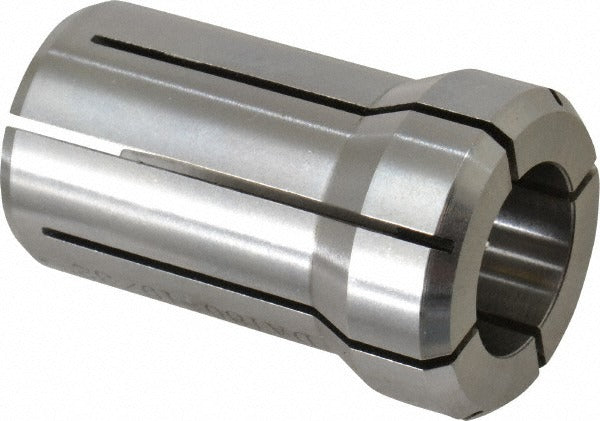

Accupro 586336 DA180 Double Angle Collet 19/32 in

Product Description

The ACCUPRO 586336 is a DA180 series double angle collet designed for use in DA180-style collet chucks on milling machines, CNC machining centers, and manual knee mills. It accepts a 19/32 inch (0.59375 inch) round shank tooling and provides the dual-angle clamping geometry that the DA collet system is known for. The overall length is 1.637 inches and the overall diameter is 1.035 inches. This collet is suited for high-speed cutting operations where secure, concentric tool holding is required. Machinists and toolroom technicians are the primary installers and users of this type of workholding component.

This collet fits into DA180 collet chucks used on a wide range of manual and CNC milling equipment. It is appropriate for production shops, tool rooms, and job shops running 19/32 inch shank end mills, drills, or other round-shank cutting tools. The DA180 collet system is a common format in light-to-medium duty milling applications where quick tool changes and reliable runout are priorities.

Key Features

• DA180 collet series for compatibility with DA180-style chuck bodies
• 19/32 inch bore size (0.5938 inch decimal) for round-shank tooling
• Overall length of 1.637 inches for standard DA180 chuck fit
• Overall diameter of 1.035 inches
• Double angle clamping geometry for secure, concentric tool grip
• Lightweight at 0.5 pounds for easy handling during tool changes

Compatibility

Designed as an OEM-style replacement or standard collet for DA180 series collet chuck bodies accepting 19/32 inch round-shank tooling.

Installation Notes

Installation is performed by machinists or toolroom technicians. Before inserting or removing a collet, ensure the machine spindle is fully stopped and the chuck is clear of any cutting load. Use the appropriate collet nut and spanner wrench for the DA180 chuck body; do not overtighten the collet nut, as this can damage the collet taper. Inspect the collet bore and chuck taper for chips or debris before seating the collet.
