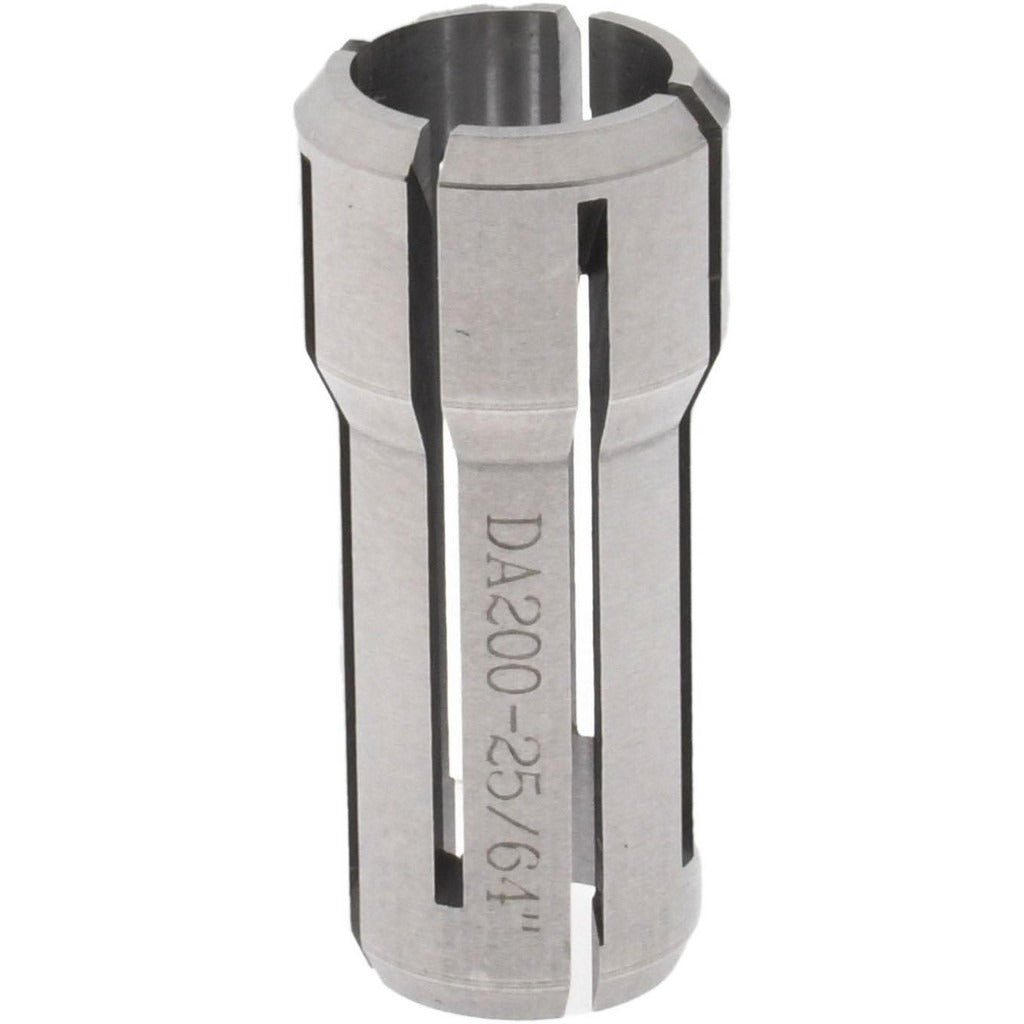

Accupro 586321 DA200 Double Angle Collet 25/64 in

Product Description

The ACCUPRO 586321 is a DA200 series double angle collet designed for use in DA200-compatible collet chucks on milling machines, CNC machining centers, and manual mills. It accepts a 25/64 inch (0.39063 inch) round shank tooling and provides a secure, concentric grip during cutting operations. The collet measures 1.193 inches in overall length and 0.539 inches in overall diameter. Machinists and toolroom technicians rely on double angle collets for their ability to grip tooling firmly across two contact angles, reducing runout and improving tool life in both light and heavy-duty material removal applications.

This collet is suited for production machining environments where consistent tool holding is critical. It fits DA200 collet chucks commonly found on vertical milling machines and CNC machining centers used in job shop and production settings. The 25/64 inch bore size accommodates standard round shank end mills, drills, and similar cutting tools of that diameter. Machinists selecting collets for DA200 chucks should verify chuck series compatibility before installation.

Key Features

• DA200 collet series for use in DA200-compatible collet chucks
• 25/64 inch (0.39063 inch) bore accepts standard round shank tooling
• 1.193 inch overall length for proper seating in DA200 chuck bodies
• 0.539 inch overall diameter
• Double angle contact design reduces runout and improves grip security
• Lightweight at 0.5 pounds for easy handling during tool changes

Compatibility

Designed as a direct-fit collet for DA200 series collet chucks accepting 25/64 inch round shank tooling.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before inserting or removing collets. Clean the chuck bore and collet taper surfaces before seating to ensure full contact and minimize runout. Use the appropriate chuck wrench or spanner to tighten the collet nut to the chuck manufacturer's specified procedure — do not use impact tools on collet nuts.
